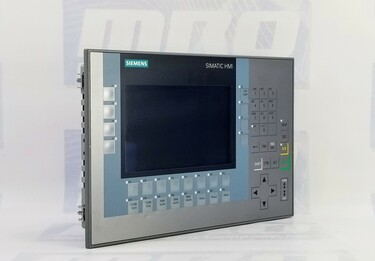

SIMATIC HMI KP700 COMFORT PANEL KEY OPERATION, 7 WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE
Part Number | 6AV2124-1GC01-0AX0 |
Manufacturer | Siemens |
Type | HMIs |
Model # | 6AV21241GC010AX0 |
Warranty | 2 Year |
Range | SIMATIC |
Category | HMI |
Panel | KP700 Comfort |
Display | TFT |
Diagonal | 7 in |
Colors | 16 777 216 |
Resolution (h) | 800 Pixel |
Resolution (v) | 480 Pixel |
Width (Display) | 152.4 mm |
Height (Display) | 91.4 mm |
Function keys | 24 |
MTBF backlighting | 80 000 h |
Dimmable | Yes |
Mounting | Vertical |
Max mounting angle | 35˚ |
Supply voltage | DC |
Rated V | 24 V |
Current consumption | 0.5 A |
Power In | 12 W |
Processor | X86 |
Memory | RAM/ Flash |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6AV2124-1GC01-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-1GC01-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6AV2124-1GC01-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6AV2124-1GC01-0AX0 for credit when ordering from MRO Electric
The Siemens 6AV2124-1GC01-0AX0 KP700 Comfort HMI panel is a high-performance human-machine interface designed to improve user experience and operational efficiency in industrial applications. As part of Siemens' SIMATIC HMI range, this KP700 Comfort panel integrates advanced control features with a user-friendly interface, making it ideal for monitoring, controlling, and optimizing various industrial processes. Engineered with durability and functionality in mind, it is suited for demanding environments where reliability and precision are crucial.
The KP700 Comfort panel offers a 7-inch TFT display with an impressive depth of over 16 million colors (16,777,216) for vibrant and highly detailed graphics. This display ensures excellent visual clarity, with a resolution of 800x480 pixels, allowing operators to easily view intricate process details and monitor operations. The display dimensions are designed for optimal visibility, measuring 152.4 mm in width and 91.4 mm in height. It also has a dimmable backlight, which can be adjusted according to ambient lighting conditions, providing flexibility in various environments. The backlighting has a mean time before failure (MTBF) of 80,000 hours, ensuring longevity and low maintenance needs.
Equipped with 24 programmable function keys, the KP700 Comfort panel offers a range of customizable control options, enabling users to tailor the panel to specific tasks and streamline their workflows. These function keys provide immediate access to frequently used operations and functions, enhancing productivity and minimizing navigation time. Each key can be programmed to execute specific commands or actions, making the interface intuitive and user-friendly for operators across different levels of expertise.
At its core, the KP700 Comfort panel operates on an X86 processor, which ensures reliable performance and fast response times for seamless operation. This processor configuration, combined with ample RAM and Flash memory, enables the device to handle complex tasks and data-intensive applications without lag. The panel operates on a 24 V DC power supply with a current consumption of 0.5 A, making it energy-efficient and compatible with standard industrial power setups. The power input rating of 12 W further contributes to its operational efficiency and low energy consumption profile.
Designed for versatile mounting, the KP700 Comfort HMI can be installed vertically, which helps save space in compact control cabinets or operator stations. It can be mounted at an angle of up to 35˚, providing additional flexibility for user comfort and visibility. This mounting versatility makes it suitable for diverse setups, allowing for ergonomic placement tailored to operator requirements.
The KP700 Comfort HMI has a 2-year MRO Electric and Supply warranty, underscoring Siemens' commitment to quality and reliability. In addition to the warranty, MRO Electric offers free shipping, adding value and convenience for customers investing in this robust industrial panel.
The Siemens 6AV2124-1GC01-0AX0 KP700 Comfort HMI combines advanced visual capabilities with powerful performance and flexible configuration options. Its design and features make it an excellent choice for enhancing productivity and control in industrial environments, offering a seamless, customizable interface that supports efficient process management.
Q: What is the size and resolution of the KP700 Comfort HMI display?
A: The KP700 Comfort HMI has a 7-inch TFT display with a resolution of 800x480 pixels, providing clear visuals for monitoring and controlling processes.
Q: How many function keys does this panel have?
A: The KP700 Comfort HMI is equipped with 24 programmable function keys, which allow users to customize controls and quickly access frequently used functions.
Q: Is the backlight adjustable, and what is its lifespan?
A: Yes, the backlight is dimmable and has a mean time before failure (MTBF) of 80,000 hours, ensuring long-term reliability with minimal maintenance.
Q: Can the panel be mounted at an angle?
A: Yes, the KP700 Comfort HMI can be mounted vertically and supports a maximum mounting angle of 35˚, offering flexibility for various installation configurations.
Q: What kind of processor and power requirements does the KP700 Comfort HMI have?
A: The KP700 Comfort HMI is powered by an X86 processor and requires a 24 V DC power supply with a current consumption of 0.5 A, making it compatible with most industrial power setups.
Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.
Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV2124-1GC01-0AX0, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV2124-1GC01-0AX0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
