6AV2124-1DC01-0AX0

2-year Warranty

Same Day Shipping

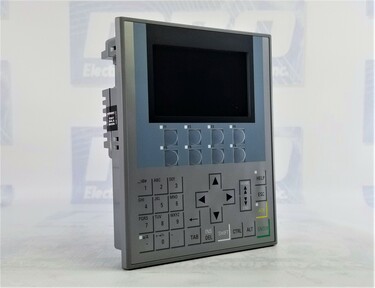

Siemens 6AV2124-1DC01-0AX0

SIMATIC HMI KP400 COMFORT PANEL, KEY OPERATION, 4 WIDESCREEN-TFT-DISPLAY

5/5
1 rating

Select Condition

Refurbished

1 in stock

New

1 in stock

$1,931.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV2124-1DC01-0AX0
ManufacturerSiemens
TypeHMIs
Model #6AV21241DC010AX0
Warranty2 Year
RangeSIMATIC
SIMATICHMI
DesignKP400
DescriptionComfort panel
OperationKey
DisplayTFT
Screen size4.3 in diagonal
Screen descriptionWide screen
Colors16 million
Resolution480 pixel horizontal 272 pixel vertical
MBTF80,000 h
Backlight dimmable1
Function keys8 LED
MountingVertical
InterfacesEthernet, RS 485 interfaces, RS422, RS232, USB, SD card slot
Display width95 mm
Display height53.8 mm
ProtocolsPROFINET, PROFIBUS, EtherNet/IP, MPI
EthernetTCP/IP, DHCP, SNMP, DCP, LLDP
ProtectionIP65 font, IP20 rear
StandardsCE mark, cULus, RCM (formerly C-TICK), KC approval

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV2124-1DC01-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-1DC01-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV2124-1DC01-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 1 hour and 55 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV2124-1DC01-0AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV2124-1DC01-0AX0 Overview

Siemens 6AV2124-1DC01-0AX0 Overview

The Siemens 6AV2124-1DC01-0AX0 is a high-quality Human-Machine Interface (HMI) from Siemens' well-known SIMATIC HMI range. This specific model, also known as the KP400 Comfort Panel, is designed to provide a user-friendly and efficient interface for industrial automation systems. The KP400 Comfort Panel offers various features aimed at enhancing both usability and connectivity, making it an ideal choice for a wide range of industrial applications where precision and reliability are critical.

Design and Display

The Siemens 6AV2124-1DC01-0AX0 boasts a robust design that is optimized for industrial environments. It features a 4.3-inch TFT wide-screen display, offering operators clear visibility and ease of use. The wide-screen display supports up to 16 million colors, which enhances the clarity of on-screen data, making it easier to read and interpret. With a screen resolution of 480 pixels horizontally and 272 pixels vertically, this model provides sharp, detailed images and a high level of clarity for operators.

The backlighting's Mean Time Between Failures (MTBF) is rated at 80,000 hours, ensuring a long-lasting and reliable operation. The display’s dimmable backlight allows for optimized visibility in varying lighting conditions. This flexibility ensures that the KP400 can be adapted to different environments, reducing glare and eye strain for operators.

Key Functions and Interfaces

The KP400 Comfort Panel features 8 LED function keys, giving operators easy access to essential controls and functions. These keys are strategically positioned for intuitive operation, allowing users to manage and execute commands efficiently. Integrating function keys enhances productivity and reduces operator errors in fast-paced industrial settings.

Regarding connectivity, the Siemens 6AV2124-1DC01-0AX0 includes multiple interfaces, such as Ethernet, RS485, RS422, RS232, USB, and an SD card slot. This broad range of connectivity options allows seamless integration with other devices and systems, facilitating efficient data exchange and process control. The Ethernet interface supports protocols such as TCP/IP, DHCP, SNMP, DCP, and LLDP, ensuring secure and reliable communication.

Protocols and Compatibility

This HMI model supports multiple industrial communication protocols, including PROFINET, PROFIBUS, EtherNet/IP, and MPI. These protocols enable the KP400 Comfort Panel to communicate with various devices and automation systems, providing greater flexibility in system integration. This extensive compatibility is particularly beneficial for complex industrial environments where multiple systems must interact seamlessly.

Durability and Certifications

The Siemens 6AV2124-1DC01-0AX0 offers reliable protection with an IP65-rated front and IP20 rear. This rating ensures resistance against dust and low-pressure water jets from any direction, making the KP400 durable in harsh industrial environments. This model also adheres to multiple international standards, including CE marking, cULus, RCM (formerly C-TICK), and KC approval, reflecting its global compatibility and high manufacturing standards.

Warranty and Support

This HMI comes with a 2-year warranty from MRO Electric and Supply, providing customers with the assurance of support and product quality. This warranty covers manufacturing defects and ensures prompt support for any issues, highlighting Siemens’ commitment to delivering reliable products.

Frequently Asked Questions (FAQs)

What type of HMI is the Siemens 6AV2124-1DC01-0AX0?

This HMI is a KP400 Comfort Panel from Siemens' SIMATIC HMI range, designed for industrial automation applications.

What are the display specifications for this model?

The KP400 Comfort Panel has a 4.3-inch wide-screen TFT display with a 480 x 272 pixels resolution and supports 16 million colors. It also features a dimmable backlight.

How many function keys are available on the KP400 Comfort Panel?

This HMI features 8 LED function keys designed for intuitive operation and easy access to essential functions.

What interfaces and protocols does the 6AV2124-1DC01-0AX0 support?

It supports various interfaces, including Ethernet, RS485, RS422, RS232, USB, and an SD card slot. It also supports multiple communication protocols such as PROFINET, PROFIBUS, EtherNet/IP, and MPI.

What kind of protection does this model offer?

The KP400 Comfort Panel provides an IP65 front protection rating and IP20 rear protection, ensuring resistance against dust and water.

What certifications and standards does the 6AV2124-1DC01-0AX0 comply with?

This model complies with international standards, including CE marking, cULus, RCM (formerly C-TICK), and KC approval.

Is there a warranty available for this product?

Yes, the Siemens 6AV2124-1DC01-0AX0 comes with a 2-year warranty from MRO Electric and Supply, which covers manufacturing defects and ensures product quality.
