6AV6545-0AG10-0AX0

2-year Warranty

Same Day Shipping

Siemens 6AV6545-0AG10-0AX0

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Siemens

DESCRIPTION: MP270B TOUCH MULTI PANEL 10.4 TFT DISPLAY 4 MB CONFIGURING MEMORY

PRODUCT TYPE INFO: SIMATIC

2 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6AV6545-0AG10-0AX0
ManufacturerSiemens
TypeHMIs
Model #6AV65450AG100AX0
Warranty2 Year
RangeSIMATIC MP 270B
CategoryTouch Multi Panel
Screen diagonal10.4 in
DisplayTFT, 256 colors
Pixels640 Pixel (H) 480 Pixel (V)
Control ElementsTouch screen
MTBF backlighting50 000 h
ConnectionUSB
MountingVertical 35°
Input current0.9 A
Power rating22 W
ProcessorRISC 32-bit
MemoryFlash / RAM
Memory data4 096 kbyte
Interfaces/bus type2 x RS232, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s)
ProtectionIP65 (front) IP20(rear)
CertificationsCE, GL, ABS, DNV, LRS, FM Class I Div. 2, cULus, EX Zone 2/22, C-TICK

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6545-0AG10-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6545-0AG10-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6545-0AG10-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 4lbs

Want it shipped today?

  • Order within the next 1 hour and 40 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6545-0AG10-0AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6545-0AG10-0AX0 Overview

Siemens 6AV6545-0AG10-0AX0 Overview

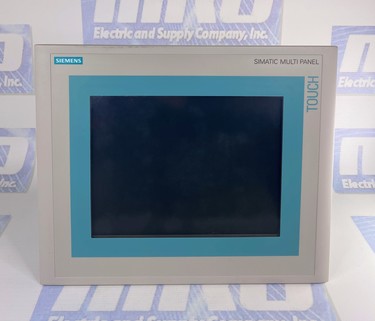

The Siemens 6AV6545-0AG10-0AX0 SIMATIC MP 270B Touch Multi Panel is a sophisticated human-machine interface (HMI) device, designed to offer efficient and intuitive interaction in various industrial environments. This Multi Panel, with its 10.4" TFT display and 4 MB configuration memory, is a testament to Siemens' commitment to combining advanced technology with user-friendly functionality.

Display and User Interface

Display Features

  • Type: TFT display with 256 colors, offering clear and vibrant visuals.
  • Size: 10.4 inches diagonal, providing ample space for interface display and interaction.
  • Resolution: 640 x 480 pixels, ensuring sharp and detailed images.
  • Backlighting: With an MTBF (Mean Time Between Failures) of 50,000 hours at 25 °C, the backlighting is both reliable and long-lasting.

Control Elements

  • Touch Screen: The panel features an analog, resistive touch screen, enabling easy and direct interaction.
  • Keyboards: It supports numeric, alphanumeric, and hexadecimal keyboards but does not include membrane or function keys.
  • Illuminated Pushbutton: Enhancing usability, especially in low-light conditions.

Connectivity and Installation

Connection Type

  • Ports: Equipped with USB ports for connecting a mouse, keyboard, or barcode reader.

Installation

  • Mounting: Designed for vertical mounting.
  • Inclination: Can be inclined up to 35° without external ventilation.

Power and Processor

Power Supply

  • UPS Connectable: Yes, ensuring uninterrupted operation.
  • Input Current: The rated current consumption is 0.9 A with a starting inrush of 0.5 A²·s.
  • Active Power Input: Typically 22 W.

Processor

  • Type: RISC 32-bit processor, ensuring efficient processing capabilities.

Memory and Storage

Memory

  • Type: The device utilizes Flash/RAM memory.
  • User Data: Offers 4,096 kbytes of memory available for user data.

Battery

  • Backup Battery: Optional 3.6 V battery with a minimum backup time of 3 years.

Interfaces and Connectivity

  • Ports: 2 x RS232, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45).
  • USB Port: Includes 1 x USB for additional connectivity.
  • Card Slots: Features 1 x PC card slot and 1 x CF card slot.
  • Industrial Ethernet Interface: Equipped with 1 x Ethernet (RJ45).

Operating Conditions

  • Operating Temperature: Can be stored or transported in temperatures ranging from -20 °C to 60 °C.
  • Humidity: Operates effectively at up to 90% relative humidity.

Configuration and Functionality

Operating System

  • Pre-installed: Comes with Windows CE, providing a stable and familiar operating environment.

Configuration Software

  • Tools: Configurable with ProTool Version 6 SP 3 or higher, or WinCC flexible Standard Version 2004 or higher.

Functional Capabilities

  • Languages: Supports up to 32 project languages and 5 online/runtime languages.
  • Libraries and Scripting: Includes libraries but does not support debugging in the simulator.
  • Message System: Capable of handling 32 alarm classes and 4,000 messages, both bit and analog.

Recipe Management

  • Capacity: Can manage up to 300 recipes, with 500 data records per recipe.

Variables and Images

  • Variables: Supports up to 2,048 variables per device.
  • Images: Allows configuration of up to 500 images.

Security

  • User Groups: Features the capacity for 50 user groups and 32 user rights.

Peripherals and Dimensions

  • Peripherals: Compatible with printers and barcode readers.
  • Dimensions: The housing front is 335 mm in width and 275 mm in height, with an overall depth of 59 mm.

Conclusion

The Siemens 6AV6545-0AG10-0AX0 SIMATIC MP 270B Touch Multi Panel is a powerful and versatile tool, ideal for a wide range of industrial applications. Its robust design, coupled with advanced features such as a high-resolution TFT display, extensive connectivity options, and comprehensive configuration capabilities, make it an indispensable component in modern industrial settings. This Multi Panel is a clear demonstration of Siemens' ability to integrate high-tech solutions with user-centric design, delivering a product that enhances both efficiency and usability in industrial processes.
