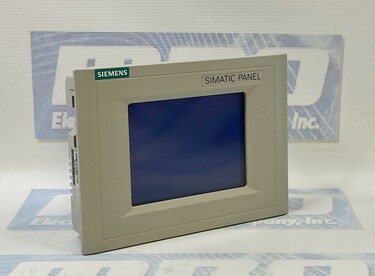

6AV6545-0BA15-2AX0

6AV6545-0BA15-2AX0

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: SIEMENS

DESCRIPTION: BLUE MODE STN-DISPLAY MPI/PROFIBUS-DP INTERFACE CONFIGURABLE W. PROTOOL/LITE FROM VERSION V5.2

PRODUCT TYPE INFO: SIMATIC TOUCH PANEL TP170A

2 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

HMI
Part Number6AV6545-0BA15-2AX0
ManufacturerSiemens
SeriesSIMATIC
Model #6AV65450BA152AX0
TypeHMI
Warranty2 Year
Display designSTN, 4 blue levels
Resolution320 x 240
Control ElementsTouch screen
Mounting position Vertical
ProcessorRISC 32-bit
Memory TypeFlash/RAM
Data memory320 kbyte
Touch screen Resistive, analog

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6545-0BA15-2AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6545-0BA15-2AX0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6545-0BA15-2AX0, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped today?

  • Order within the next 6 hours and 49 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6545-0BA15-2AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Siemens 6AV6545-0BA15-2AX0 Overview

The 6AV6545-0BA15-2AX0 unit is manufactured by Siemens. It is a Simatic HMI touch screen panel TP170A blue mode STN- Display operating panel module. The Siemens 6AV6545-0BA15-2AX0 comes supplied with an RS 485 interface type TTY optional, 1 x RS232, 1 x RS422, 1 x RS485 (max. 1.5 Mbit/s) with a transmission rate of 1.5 max Mbits/s. The interface is operational with MPI and PROFIBUS-DP and can be used for downloading configurations.

Features

The display on this module is a TP170A blue mode STN display with four blue levels. The resistive, analog screen has a 5.7 in diagonal size with a 320 x 240 resolution (W x H in pixel).

The horizontal image resolution is 320 pixels, while the vertical image resolution is 240 pixels. There are 50000 of backlighting at 25° C.  It comes with configurable buttons and function keys.  These facilitate input and output as well as data bits communication. There is an alphanumeric input with a hexadecimal keyboard.

This Siemens touch screen panel module uses bars to display the changing values. There are several graphic points that can be utilized for integration on a project. You can integrate items such as digital photos, scanned pictures, or graphics you create yourself. What kind of graphic displays are available for this unit? You can use bar diagrams as well as trend diagrams graphics to show your project details. These diagrams make observable measurements like temperature progression easily visually available.

How to use the 6AV6545-0BA15-2AX0

The mounting option on this module is in a vertical position with a maximum permissible angle of 35 ° inclination without the need for external ventilation.

The Siemens 6AV6545-0BA15-2AX0 panel offers password protection as it is a common feature of the TP170 panel modules. You can use the ProTool CS Graphics to find the standard library for graphics as well as buttons to configure labels.  The keys are also used for formatting background screens. When labeling buttons, there is a fixed text. It has input/output fields. These enable modification of process parameters.  When you are downloading configurations, the Simatic panel will detect and transfer the information automatically.

Printing functions are available on this Siemens touch screen panel module. You can also schedule a trends function.  It is available with recipe management and alarm configurations and messaging.

What kind of memory can you expect from this SIMATIC panel? Memory for the Siemens touch screen TP170A operating module is designed for both small and medium-sized configurations. This unit has Flash/RAM memory and has 320 kbyte memory available for your system data.

Advantages

How can this module help benefit you? It is made for operating your machines and for monitoring them. It lets you graphically see what is happening with your system.  It carries all the basic panel capabilities for low-end operating units and concludes the SIMATIC HMI the low-end category. The 6AV6545-0BA15-2AX0 panel module is positioned on the Microsoft Windows CE operating system.

With strong competitive pricing, the Siemens 6AV6545-0BA15-2AX0 touch screen panel is compatible with all of the SIMATIC S7 CPU units.

This Siemens 6AV6545-0BA15-2AX0 comes with a two-year warranty.

Product Description

The 6AV6545-0BA15-2AX0 is a BLUE MODE STN-DISPLAY MPI/PROFIBUS-DP INTERFACE CO... that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products in the simatic line come with a 2 year warranty from MRO Electric. We also carry HMI from other manufacturers such as FANUC and Yaskawa.
