6AV6545-0BC15-2AX0

2-year Warranty

Same Day Shipping

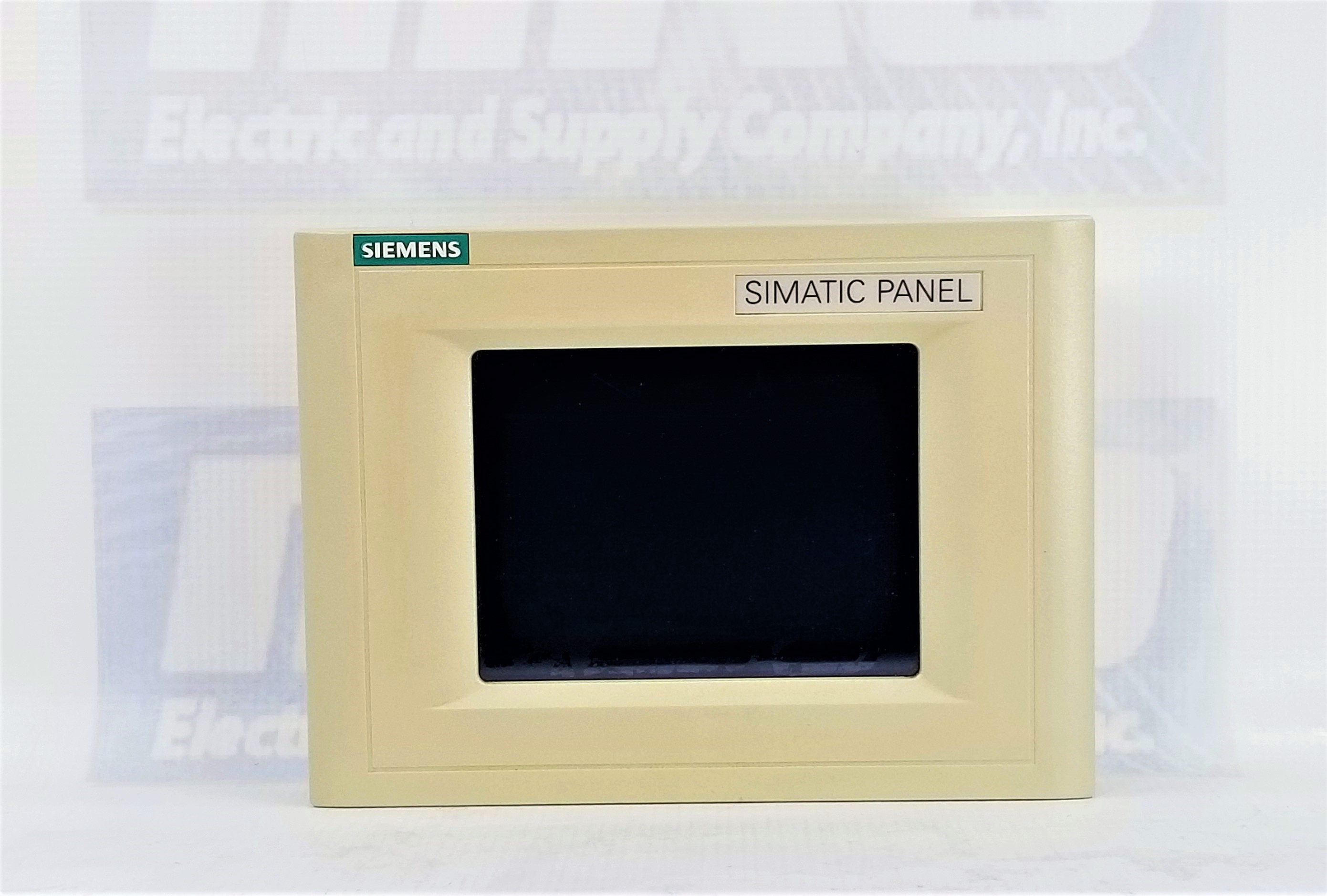

Siemens 6AV6545-0BC15-2AX0

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION: TOUCHPANEL TP170B COLOR STN COLOR DISPLAY MPI-/PROFIBUS-DP INTERFACE
PRODUCT TYPE INFO: SIMATIC


9 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6AV6545-0BC15-2AX0
ManufacturerSiemens
TypeHMIs
Model #6AV65450BC152AX0
Warranty2 Year
RangeSIMATIC
SIMATICTouch panel
PanelTP170 B
DescriptionColor
DisplaySTN-color
InterfaceMPI/PROFIBUS DP
SlotPrinter/RS232
ConfigurableProTool/Lite as of Version V5.2+SP2

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6545-0BC15-2AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6545-0BC15-2AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6545-0BC15-2AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 12 hours and 37 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6545-0BC15-2AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6545-0BC15-2AX0 Overview

The Siemens SIMATIC HMI Touch Panel TP170B 6AV6545-0BC15-2AX0 is a synchronous transmission network color STN 16- color display module bringing all the quality you expect with the functionality you need. It delivers continuous data streamed which means sender-receiver applications are synchronized perfectly with each other. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Features

The display is designed with a 5.7 in. screen (diagonal) and has 16-color STN. The horizontal image resolution boasts 320-pixel display and 240-pixel vertical image resolution. The backlighting has an MTBF rating of 50,000 h at 25° C.

There are a few notable control elements belonging to this touch screen panel. It has an alphanumeric keyboard as well as a hexadecimal keyboard that has a multi-key operation. The resistive, analog module was designed as a touch screen operation module.

The input current consumption on this Siemens 6AV6545-0BC15-2AX0 panel is 0.25 A with active power input at 7 W. The type of processor found on this module is a RISC 32-bit, 66 MHz processor.

There is 768 kbyte memory available to you with the Flash / RAM. The software has clock capabilities that are able to be synchronized.

Interfaces available on this panel unit are TTY optional, 2 x RA232, 1x RS422, 1x RS485 with a maximin of 12 Mbit/s. There is a CF card slot also on this module.

The Message system gives you 32 alarm classes, 2000-bit messages, 2000 analog messages. There are 100 images that can be configured. With 1000 variables per device, 50 variables per screen.

How to use the Siemens 6AV6545-0BC15-2AX0

Mounting this unit is mean to be done in a vertical position and the maximum the angle can be inclined without external ventilation is 35°.

The Siemens 6AV6545-0BC15-2AX0 operates on the pre-installed Windows CE operating system in relative humidity permitted at a max 85%. The ambient temperature of -20° C min and 60° C max during storage and transportation.

Advantages

The configuration used for this software is ProTool/Lite, version 5.2 SP 2 or higher. Other possible configuration tools include WinCC flexible Compact Version 2004 or higher.

What kind of functionality can you expect from the Siemens AV6545-0BC15-2AX0 under WinCC (TIA Portal)? There are five online / runtime languages, and it has 32 project languages available. It has a task planer and library and a help system with 70 characters per info text.

The protection class of this unit is IP65 at the front and IP20 in the rear of the device.

Certifications for the Siemens touch panel module:

  • CE
  • FM Class I Div. 2
  • UL
  • CSA

You want a device that allows commissioning and operating at a level above the rest of the competition and that is what this screen and system offer with settings that are just right for you. And of course, ease of installation is an important consideration guaranteeing savings in time and energy. The installation must be a smooth process and you will find simplicity when installing this panel. This unit brings you all of this and much more.
