6AV6642-0BA01-1AX0

2-year Warranty

Same Day Shipping

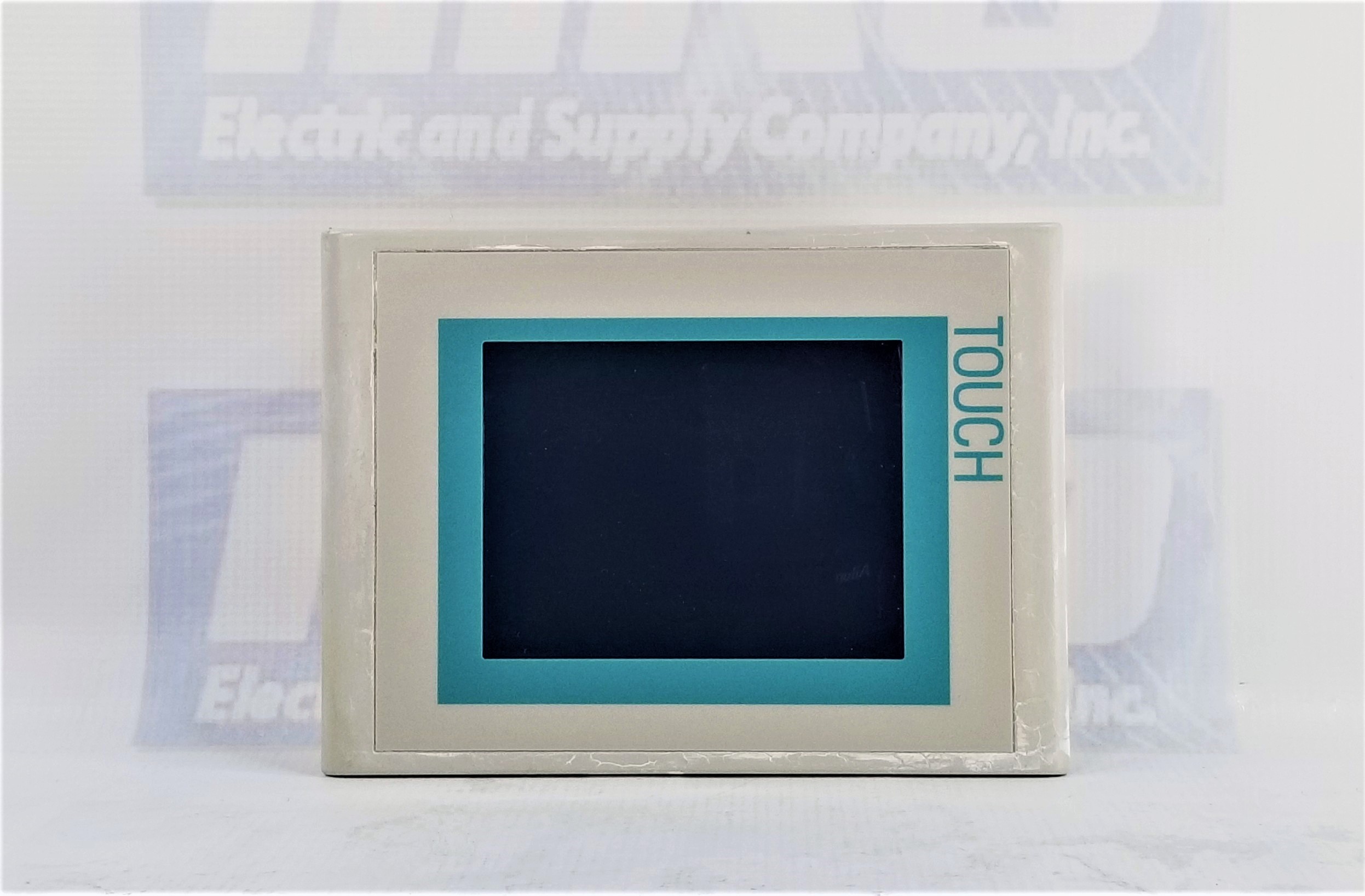

Siemens 6AV6642-0BA01-1AX0

SIMATIC TOUCHPANEL TP177B PN/DP STN 265 COLOR-DISPLAY MPI-/PROFIBUS-DP - PROTOCOL RS485-/RS422-/USB - INTERFACE ETHERNET10/100 INTERFACE PRINTER - INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005
5/5
1 rating

2 in stock


Free Shipping

2 Year warranty

Part Number6AV6642-0BA01-1AX0
ManufacturerSiemens
TypeHMIs
Model #6AV66420BA011AX0
Warranty2 Year
RangeSIMATIC Touchpanel
CategoryTP177B PN/DP
DesignSTN
Screen5.7 in
Color256 colors
Resolution320 Pixel (H) 240 Pixel (V)
MTBF50000 h
ControlTouch screen
KeyboardAlpha numeric system keys
MountingVertical/ 35° max
Connection USB
ProcessorRISC 32-bit, 200 MHz
MemoryFlash / RAM
Memory data2 048 kbyte
InterfaceRS232 optional, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s)
ProtectionIP65, NEMA 4, NEMA 4x, NEMA 12
CertificationsCE, GL, ABS, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, EX-Zone 2/22, Gost-R, C-TICK, NEMA 4, NEMA 4x, NEMA 12
Width212 mm
Height156 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6642-0BA01-1AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6642-0BA01-1AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6642-0BA01-1AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 21 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6642-0BA01-1AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6642-0BA01-1AX0 Overview

Siemens 6AV6642-0BA01-1AX0

The Siemens 6AV6642-0BA01-1AX0 SIMATIC Touchpanel TP177B PN/DP is an advanced, interactive user interface for controlling various industrial processes. It is designed to offer reliable, efficient, and easy-to-use control solutions in a wide range of industrial environments. Here's a detailed technical description of its features and specifications:

Display and User Interface

  1. Display Type: The TP177B features an STN (Super Twisted Nematic) display with a 5.7-inch screen diagonal, providing a clear and user-friendly interface.
  2. Color and Resolution: It supports 256 colors with a resolution of 320 x 240 pixels, ensuring clear visibility and readability of information.
  3. Backlighting: The display has a mean time between failure (MTBF) for the backlighting of 50,000 hours at 25°C, indicating long-term reliability.
  4. Touch Operation: The screen is designed as an analog, resistive touch screen, allowing for intuitive and direct user interaction.

Control Elements

  1. Keyboard Fonts: The TP177B includes system keys and supports numeric/alphabetical input, including a hexadecimal keyboard. However, it does not support multi-key operation.

Processor and Memory

  1. Processor: It is powered by a 32-bit RISC processor, clocked at 200 MHz, ensuring efficient handling of tasks and commands.
  2. Memory: The device comes with Flash and RAM memory, providing 2,048 KB of user data storage.

Connectivity and Interfaces

  1. Interfaces: The TP177B includes RS232 (optional), RS422, RS485, and Ethernet (RJ45) interfaces, with a maximum transmission rate of 12 Mbit/s. It also features a USB port and a Multimedia Card slot for up to 128 MB.
  2. Industrial Ethernet: It has a dedicated Ethernet interface and status LED for network connectivity and monitoring.

Protection and Durability

  1. Degree of Protection: The front of the device is rated IP65, and the rear is rated IP20, offering a high degree of protection against dust and water in industrial settings.
  2. Certifications and Approvals: The TP177B holds certifications including CE, GL, ABS, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, EX-Zone 2/22, Gost-R, C-TICK, NEMA 4, NEMA 4x, and NEMA 12.

Operating Conditions

  1. Ambient Temperature: The TP177B is operable in a temperature range of -20°C to 60°C, suitable for various industrial environments.
  2. Relative Humidity: It can operate at a maximum relative humidity of 90%.

Software and Functionality

  1. Operating System: The device runs on Windows CE, offering a stable and reliable platform for industrial applications.
  2. Configuration Software: It is configurable with WinCC flexible Compact Version 2005 or higher.
  3. Functionality: The TP177B supports a wide range of functions, including alarm logging, process value display and default, recipe administration, and message systems. It also supports multiple languages and offers extensive functionality under WinCC (TIA Portal).

Dimensions

  1. Size: The housing front measures 212 mm in width and 156 mm in height, with an overall depth of 46 mm, making it compact and suitable for various installation requirements.

Frequently Asked Questions (FAQs)

1. What type of display technology does the SIMATIC TP177B use?

  • The SIMATIC TP177B uses an STN (Super Twisted Nematic) display technology, with a screen size of 5.7 inches and supporting 256 colors.

2. Can the TP177B connect to various industrial communication networks?

  • Yes, it supports multiple interfaces including RS232 (optional), RS422, RS485, and an Ethernet (RJ45) interface. It also includes a USB port and a Multimedia Card slot.

3. What is the processor specification of the TP177B?

  • The TP177B is equipped with a 32-bit RISC processor running at 200 MHz.

4. What kind of memory does the TP177B have?

  • It has Flash and RAM memory, with 2,048 KB available for user data.

5. Is the TP177B touch panel suitable for harsh industrial environments?

  • Yes, it has a front protection rating of IP65 and various certifications like CE, UL, CSA, and more, making it suitable for harsh industrial settings.

6. What operating system does the TP177B run on?

  • The TP177B runs on Windows CE.

7. Can the TP177B be configured with standard software?

  • Yes, it is configurable with WinCC flexible Compact Version 2005 or higher.

8. Does the TP177B support recipe administration and alarm logging?

  • Yes, it supports recipe administration and alarm logging, along with a range of other functionalities.

9. What are the dimensions of the TP177B?

  • The housing front is 212 mm wide and 156 mm high, with an overall depth of 46 mm.

10. Is the TP177B suitable for use in explosive environments?

  • Yes, it is suitable for use in EX zones 2 and 22 and also has FM Class I Division 2 approval.



Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Contact Us Today For More Information About Siemens Products

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV6642-0BA01-1AX0, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV6642-0BA01-1AX0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
