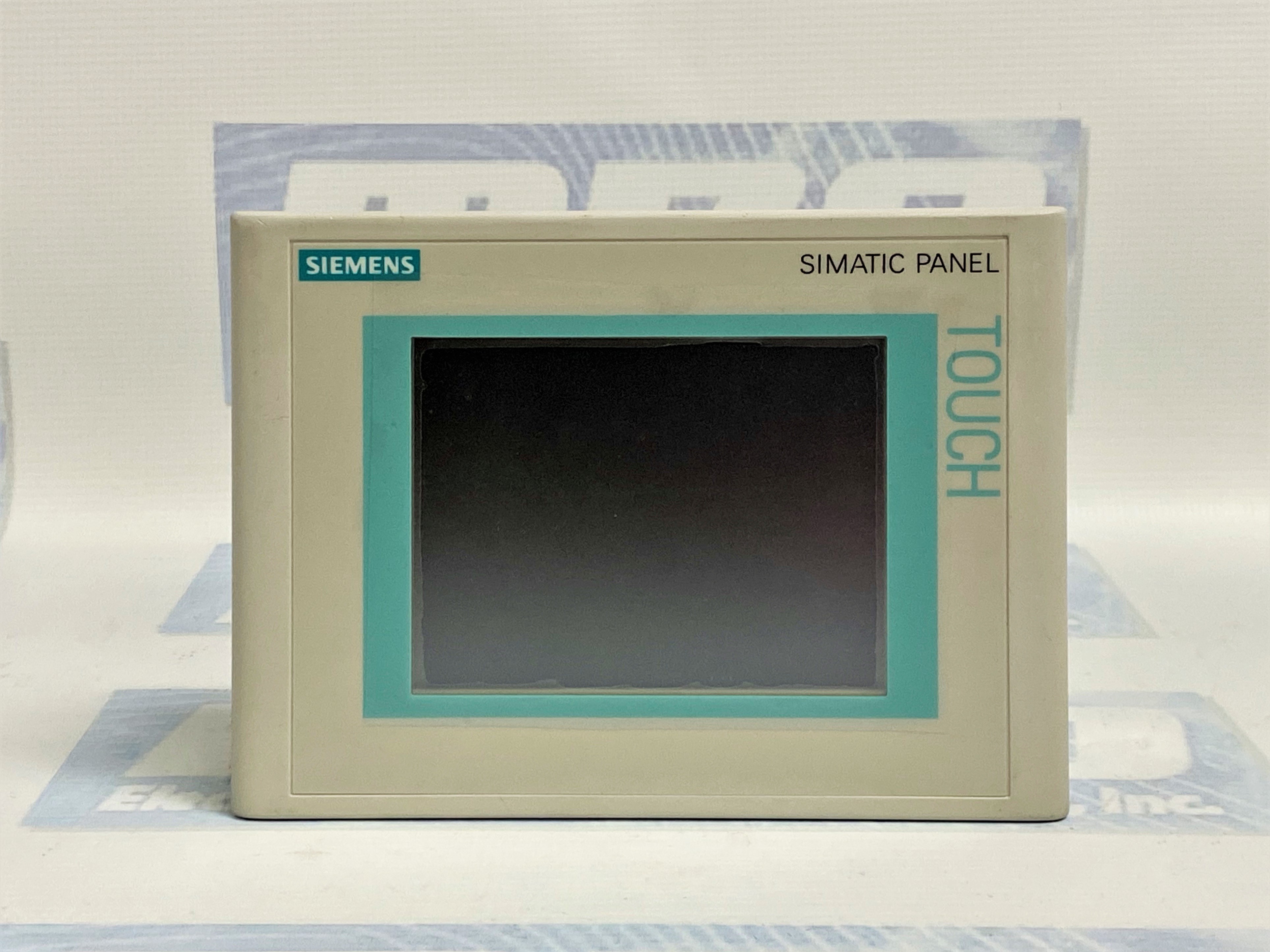

Siemens 6AV6642-0BA01-1AX1

SIMATIC TP177B 6 PN/DP STN 265 COLOR-DISPLAY MPI-/PROFIBUS-DP - PROTOCOL

5/5
4 ratings

Select Condition

Refurbished

$1,879.00

9 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV6642-0BA01-1AX1
ManufacturerSiemens
TypeHMIs
Model #6AV66420BA011AX1
Warranty2 Year
Part Number6AV6642-0BA01-1AX1
ManufacturerSiemens
SeriesSIMATIC
Weight5lbs
TypeHMI
Warranty2 year
Screen diagonal 5.7 inches
Color display Yes
Number of colors256 colors
Control ElementTouch Screen
System keysYes
Alphanumeric KeysYes
Mouse connectionUSB
Mounting PositionVertical
Processor TypeARM, 200 MHz
Supply VoltageDC
MemoryFlash / RAM
InterfacesRS 232, optional, 1 RS422,1 RS 485, 1 Ethernet

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6642-0BA01-1AX1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6642-0BA01-1AX1 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6642-0BA01-1AX1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 20 hours and 10 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6642-0BA01-1AX1 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6642-0BA01-1AX1 Overview

Siemens 6AV6642-0BA01-1AX1 Product Features

The Siemens 6AV6642-0BA01-1AX1 SIMATIC TP 177B is a durable and versatile human-machine interface (HMI) panel designed for precise control and monitoring in industrial automation. With a 5.7-inch color display, strong communication options, and a user-friendly interface, it is well-suited for manufacturing lines, process control systems, and other automation environments.

Built for long-term reliability, this panel combines compact dimensions with industrial-grade protection, making it ideal for installations where space is limited but performance is critical. The device’s compatibility with multiple communication protocols ensures seamless integration into new or existing systems, while its robust construction supports operation in demanding conditions.

Visual Output Quality

The 6AV6642-0BA01-1AX1 is equipped with a 5.7-inch STN screen which provides sharp and reliable visuals for process data, alarms, and operational graphics. With 256 colors and a resolution of 320 x 240 pixels, the display offers enough clarity for effective operator decision-making while maintaining the ruggedness required for industrial settings.

The STN technology balances durability and visibility, allowing the screen to function well in various lighting environments. Whether installed in a bright warehouse or a low-light control room, the display remains legible and consistent.

Backlighting Durability

Backlight longevity is a critical factor in industrial HMIs, and the 6AV6642-0BA01-1AX1 excels with an MTBF (Mean Time Between Failures) of 50,000 hours at 25°C. This ensures that even in continuous-use applications, operators can rely on a clear display for years without frequent replacements.

Control Elements

Interaction with the 6AV6642-0BA01-1AX1 TP 177B is primarily through its resistive, analog touch screen. Accompanying system keys, a numeric keyboard, and an alphanumeric keyboard facilitate user input, essential for various operational settings.

Connectivity and Communication

The 6AV6642-0BA01-1AX1 is designed for compatibility with a variety of devices and network types. Standard interfaces include:

  • RS 485 – for connecting to legacy industrial devices and networks.
  • RS 422 – for high-speed serial communication in longer cable runs.
  • Ethernet (RJ45) – for integration into modern network infrastructures.

Additionally, the panel supports USB connections for devices such as a mouse, keyboard, or barcode scanner, further enhancing functionality.

Protocols Support

Industrial communication is a core strength of this model. Supported protocols include:

  • PROFINET IO – for high-speed, deterministic industrial networking.
  • PROFIBUS – widely used for connecting PLCs and automation devices.
  • EtherNet/IP – ensuring compatibility with multi-vendor industrial systems.

This broad protocol support ensures the HMI can seamlessly integrate into almost any automation architecture.

Installation and Environmental Tolerance

The 6AV6642-0BA01-1AX1 TP 177B is optimized for vertical mounting and can be installed at a maximum inclination of 35° without external ventilation. This flexibility allows it to fit into space-restricted control panels without overheating.

  • Operating temperature range: 0°C to 50°C
  • Storage temperature range: -20°C to 60°C

With an IP65 front panel protection rating, the unit is dust-tight and resistant to water jets, making it suitable for tough industrial environments.

Processor and Memory Specs

 Powered by an ARM processor running at 200 MHz, the 6AV6642-0BA01-1AX1 TP 177B offers reliable performance for HMI applications. Internal memory includes:

  • Flash Memory – for program storage.
  • RAM – for active operations.
  • 2,048 kbytes of user data memory – providing sufficient storage for configuration files, alarms, and system messages.

This combination ensures smooth operation and quick screen changes, even in process-intensive environments.

Standards and Certifications

The 6AV6642-0BA01-1AX1 meets international safety and quality standards, holding CE and UL certifications. While ATEX Zone 2 and Zone 22 certifications were available in the past, they are no longer valid for units manufactured after October 2020, meaning the panel is not certified for certain hazardous environments.

Typical Industrial Applications

The Siemens 6AV6642-0BA01-1AX1 TP 177B is a highly adaptable HMI, making it suitable for a variety of industrial uses:

  • Manufacturing Lines – Monitoring production progress, triggering alarms, and adjusting process parameters.
  • Material Handling Systems – Controlling conveyors, sorting equipment, and automated storage systems.
  • Process Control – Managing chemical, food, or pharmaceutical processes with real-time parameter adjustments.
  • Energy and Utilities – Monitoring pumps, valves, and control equipment in water treatment or power generation facilities.
  • Logistics and Distribution – Overseeing automated warehouse systems and ensuring smooth flow of goods.

6AV2124-0JC01-0AX0 Product Specifications

Built to meet the needs of demanding industrial applications, the Siemens 6AV6642-0BA01-1AX1 offers the following technical features:

  • Manufacturer: Siemens
  • Model Number: 6AV6642-0BA01-1AX1
  • Series: SIMATIC TP 177B
  • Display Size: 5.7-inch STN color display
  • Resolution: 320 x 240 pixels
  • Colors: 256
  • Backlight Life: 50,000 hours MTBF at 25°C
  • Touch Screen: Resistive, analog
  • Input Options: System keys, numeric keyboard, alphanumeric keyboard
  • Interfaces: RS 485, RS 422, Ethernet (RJ45), USB
  • Supported Protocols: PROFINET IO, PROFIBUS, EtherNet/IP
  • Processor: ARM, 200 MHz
  • Memory: Flash and RAM, 2,048 kbytes user data
  • Mounting: Vertical, max 35° inclination without external ventilation
  • Operating Temp: 0°C to 50°C
  • Storage Temp: -20°C to 60°C
  • Protection Rating: IP65 (front panel)
  • Certifications: CE, UL

Frequently Asked Questions (FAQs) - Siemens 6AV6642-0BA01-1AX1

What software is necessary for configuring the 6AV6642-0BA01-1AX1 SIMATIC TP 177B?

The TP 177B requires the WinCC flexible Compact Version 2005 or higher for configuration, available separately. It does not support configuration with STEP 7 Basic (TIA Portal).

Can the device's clock be synchronized with an external time source?

Yes, the hardware clock can be synchronized, but it doesn't have a battery backup. Therefore, it's non-retentive.

Does the SIMATIC TP 177B support expansion via memory cards?

While there's no dedicated slot for PC or CF cards, the device does accommodate a Multi Media Card (MMC), with certain restrictions on capacity.

Is there support for direct printer logging?

Yes, the panel supports direct logging through a printer, capable of recording/printing alarms and shift reports, among other functions.

What are the options for transferring data to or from the device?

Data transfer can occur via several avenues, including MPI/PROFIBUS DP, USB, Ethernet, or an external storage medium, with automatic transfer recognition.

By covering these core aspects and providing a helpful FAQ section, users are well-equipped with the necessary understanding of the SIMATIC TP 177B's functionality, ensuring informed deployment and effective utilization in industrial contexts.
