6AV6642-0BC01-1AX1

2-year Warranty

Same Day Shipping

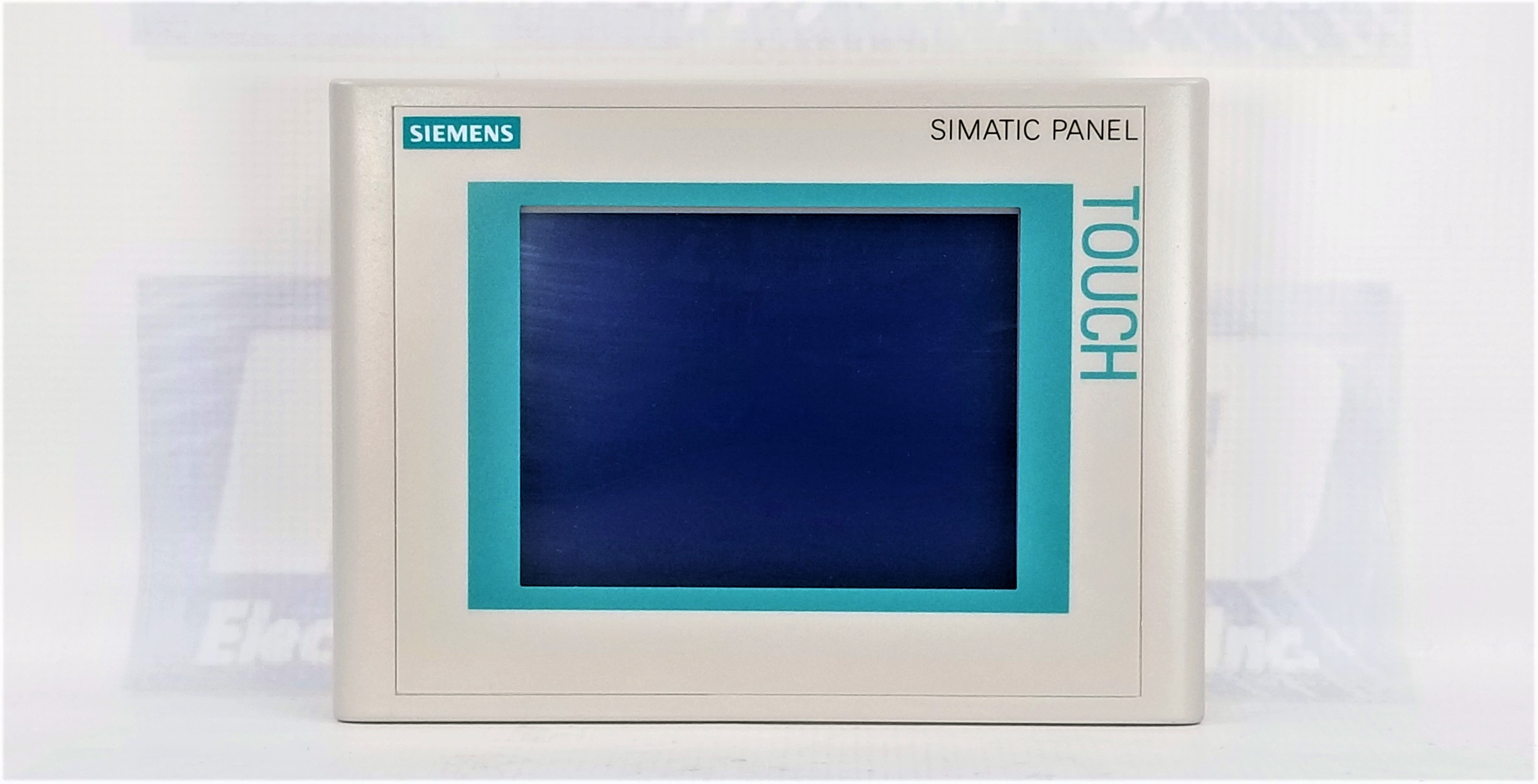

Siemens 6AV6642-0BC01-1AX1

SIMATIC TP177B 6 DP BLUE MODE STN-DISPLAY MPI-/PROFIBUS-DP
5/5
4 ratings

Select Condition

Refurbished

1 in stock

New

3 in stock

$1,397.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV6642-0BC01-1AX1
ManufacturerSiemens
TypeHMIs
Model #6AV66420BC011AX1
Warranty2 Year
DESCRIPTIONOPERATOR INTERFACE
SIMATICTP177B
ORIENTATIONVERTICAL
DISPLAYBLUE MODE STN
INTERFACERS-485/RS-422/USB/PRINTER
AMBIENT TEMP0-50° C
INPUTDC 24 V
MAX INPUT55A
ENCLOSURE TYPETYPE 12
INTERFACEMPI/PROFIBUS DP PROTOCOL
SLOTMMC
CONFIGURABLE WINCC FLEXIBLE 2005

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6642-0BC01-1AX1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6642-0BC01-1AX1 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6642-0BC01-1AX1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6642-0BC01-1AX1 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6642-0BC01-1AX1 Overview

Siemens 6AV6642-0BC01-1AX1: The Operator's Interface

Description:

The Siemens 6AV6642-0BC01-1AX1, a member of the SIMATIC HMI family, is a versatile operator interface designed to streamline control processes across various industries. With its sleek vertical orientation, this HMI model, also known as SIMATIC TP177B, offers intuitive operation and efficient monitoring capabilities.

Display Technology:

Featuring a vibrant blue mode STN display, users can expect crisp visuals and clear readability even in challenging lighting conditions. Whether navigating complex interfaces or monitoring critical data, the display ensures optimal visibility for operators.

Versatile Interface:

Equipped with a comprehensive range of interfaces including RS-485, RS-422, USB, and printer connectivity, this Siemens model facilitates seamless integration with diverse industrial systems. Such versatility enables effortless communication and data exchange, enhancing operational efficiency.

Temperature Tolerance:

Operating within a wide ambient temperature range of 0 to 50°C, the 6AV6642-0BC01-1AX1 ensures reliable performance in various environments, from controlled indoor settings to demanding industrial conditions. This robust temperature tolerance enhances its suitability for diverse applications.

Power Input:

Powered by DC 24V input, this operator interface accommodates standard industrial power supplies, ensuring compatibility with existing infrastructure. With a maximum input of 55A, it delivers sufficient power to support continuous operation without compromise.

Enclosure Type:

Housed in a rugged Type 12 enclosure, the device offers superior protection against dust, moisture, and other environmental factors. This enclosure type ensures durability and longevity, safeguarding critical components from potential damage.

Communication Protocol:

Supporting MPI and PROFIBUS DP protocols, the 6AV6642-0BC01-1AX1 facilitates seamless integration into existing automation networks. This compatibility allows for efficient data exchange and real-time communication, enabling synchronized operation within interconnected systems.

Expansion Capabilities:

With an MMC slot, users have the flexibility to expand storage capacity or integrate additional functionalities as needed. This expandability enhances the device's adaptability to evolving operational requirements, ensuring future-proof performance.

Configurability:

Compatible with WINCC Flexible 2005, this operator interface offers extensive configurability, allowing users to tailor it to specific application needs. From customizing graphical interfaces to defining control parameters, the software provides comprehensive control over device functionality.

FAQ: Siemens 6AV6642-0BC01-1AX1 Operator Interface

Q: What industries is the Siemens 6AV6642-0BC01-1AX1 suitable for?

A: The Siemens 6AV6642-0BC01-1AX1 is suitable for a wide range of industries, including manufacturing, automotive, food and beverage, pharmaceuticals, and utilities. Its versatility and robust design make it adaptable to diverse industrial environments.

Q: Can the display of the 6AV6642-0BC01-1AX1 be viewed in light?

A: Yes, the blue mode STN display of the 6AV6642-0BC01-1AX1 offers excellent visibility even in light or bright lighting conditions. Its high contrast and brightness ensure clear readability, enhancing operator efficiency.

Q: What are the communication options available with the 6AV6642-0BC01-1AX1?

A: The 6AV6642-0BC01-1AX1 supports multiple communication interfaces, including RS-485, RS-422, USB, printer, MPI, and PROFIBUS DP. These options enable seamless integration with various industrial systems and networks.

Q: Is the 6AV6642-0BC01-1AX1 suitable for outdoor use?

A: While the 6AV6642-0BC01-1AX1 is designed for industrial environments, it is primarily intended for indoor use. However, its rugged Type 12 enclosure protects against dust and moisture, making it suitable for certain outdoor applications in controlled environments.

Q: What software is compatible with the 6AV6642-0BC01-1AX1 for configuration?

A: The 6AV6642-0BC01-1AX1 is compatible with WINCC Flexible 2005 software, which allows users to configure and customize the operator interface according to their specific application requirements. This software offers extensive configurability and control over device functionality.

Q: Can the 6AV6642-0BC01-1AX1 be integrated into existing automation systems?

A: Yes, the 6AV6642-0BC01-1AX1 supports common automation protocols such as MPI and PROFIBUS DP, facilitating seamless integration into existing automation systems and networks. This compatibility ensures interoperability and ease of implementation.
