6AV6643-0CD01-1AX1

6AV6643-0CD01-1AX1

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Siemens

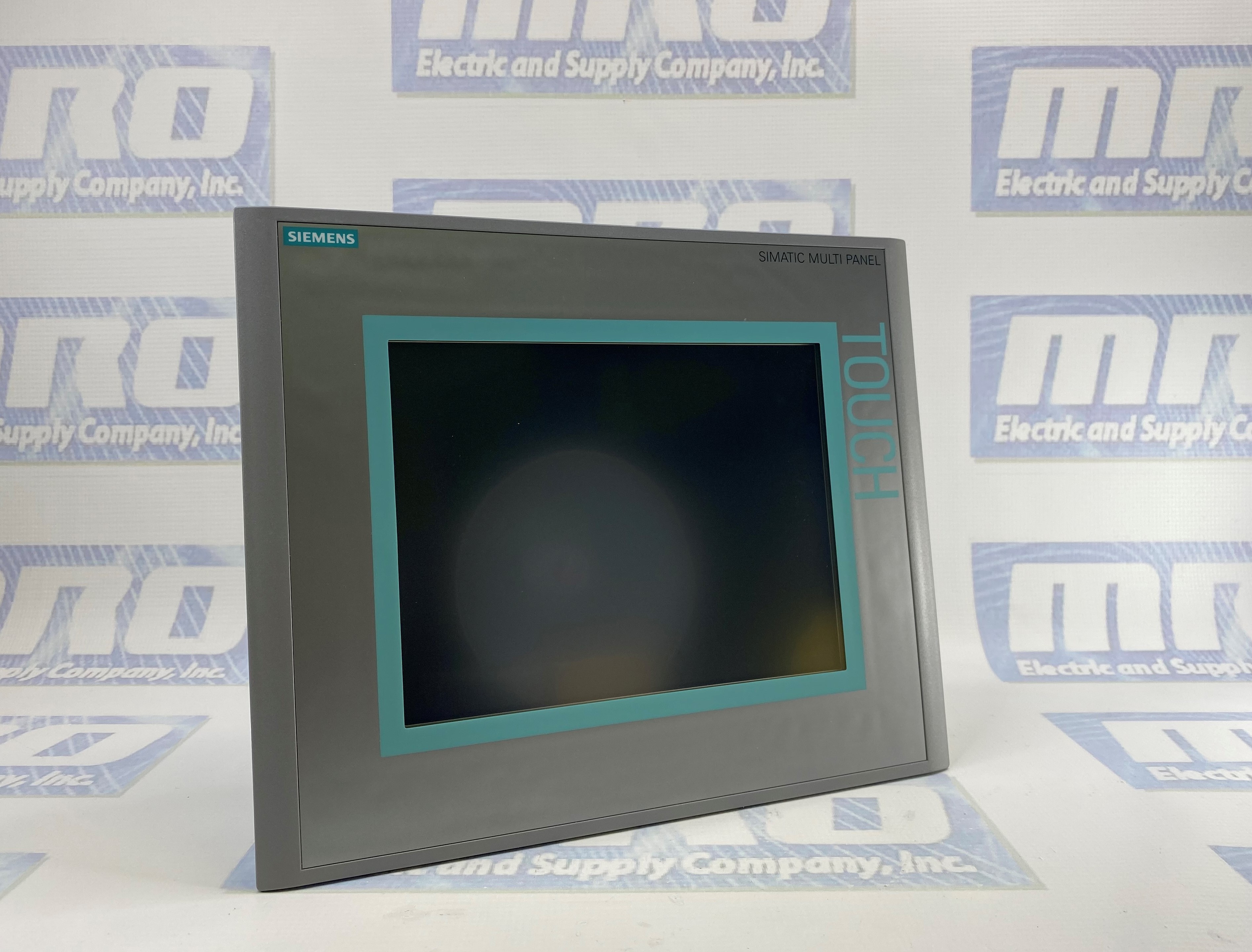

DESCRIPTION:  10" TOUCH MULTI PANEL W. RETENTIVE MEMORY 10,4 TFT DISPLAY 6 MB USER MEMORY CONFIG: WINCC FLEXIBLE 2005 STANDARD SP1

PRODUCT TYPE INFO: SIMATIC MP 277



12 in stock
Ships Today

Free Shipping
2 year warranty

Categories

HMI
Part Number6AV6643-0CD01-1AX1
ManufacturerSiemens
SeriesSIMATIC 277/577
Weight8lbs
TypeHMI
Warranty2 year
DesignationMP277
Display designTFT
Screen size10.4"
Display 65,536 colors
Backlight50,000 h
Control Touch screen
KeyboardAlphanumeric
ConnectionsUSB
ProcessorARM
Mount optionVerticle
Memory Flash/RAM
Memory Data6 Mbyte
Interfaces/bus type1x RS 422, 1x RS 485, 1x Ethernet (RJ45)
ProtocolPROFINET IO

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6643-0CD01-1AX1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6643-0CD01-1AX1 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6643-0CD01-1AX1, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 8lbs. Want it shipped today?

  • Order within the next 10 hours and 18 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6643-0CD01-1AX1 for credit when ordering from MRO Electric

Additional Information

Siemens 277 6AV6643-0CD01-1AX1 Overview

Siemens SIMATIC MP 277 6AV6643-0CD01-1AX1 is part of the multi panel MP270 series. It is available belonging to the “multifunctional Platform” category of items that works with Microsoft Windows CE 5.0. Made for use in the industrial setting with applications conforming to international standards.

Features

This HMI module comes equipped with several features that engage in communication enhancement. The features that help facilitate optimal communication are:

  • PROFIBUS port
  • Ethernet port for connection to PROFINET
  • 2 USB ports
  • TFT screen with up to 64k colors

The front view of the Siemens SIMATIC MP 277 10-inch multi panel with touch screen capabilities notes a slot for a memory card, oblong holes for mounting, mounting seal and a screen that is touch sensitive.  On the bottom of this unit, you will find oblong holes for mounting clamps and interfaces. The view from the back of this unit has a rating plate, a slot for a memory card, DIP switch, fixing elements for strain relief, and the name of the interface.

How the Siemens 6AV6643-0CD01-1AX1 works

How is the HMI device integrated in the process of your operation?  There are two key phases to this process.  First is the process design, and second is the process management. Project design is when you visualize what you want from your process and then write it out. Next you test the data and simulate the data.  Visualization, writing, and testing all happen outside the HMI.  When that is completed you are ready to bring it to your HMI panel for management of your process. Communication is the backbone of the management process. HMI and controller work together for your system to run smoothly. If you need the operator to take over on the HMI for control purpose, this is possible.  You will also see displayed on the HMI panel the results of the operating process supplied by the controller.

Storing and transporting the HMI panel has certain conditions to which you must give attention. For storage you must maintain IEC 60721-3-3, Class 3K7, and for transport, you must maintain IEC 60721-3-2, Class 2K4.

Advantages

In a drop test (in transport package) The Siemens 6AV6643-0CD01-1AX1 is safe from ≤ 1 m, the temperature range is from –20 to +60° C, the atmospheric pressure from 1 140 hPa to 660 hPa, and it works in conditions that correspond to an elevation of –1 000 to 3 500 m.The acceptable relative humidity ranges from 10 to 90%, without condensation.  The sinusoidal vibration is in accordance with IEC 60068-2-6 which is 5 to 9 Hz: 3.5 mm- 9 Hz to 500 Hz: 9.8 m/s2. It is able to absorb shock in accordance with IEC 60068-2-29 250 m/s2, 6 ms, 1 000 shocks.

This Siemens panel unit should be used and is designed to be used in places where it cannot be affected by the weather.  Places to avoid use in are places with high amount of ionizing radiation or severe operating conditions like corrosion due to vapors, gasses, oils or chemicals. It should be free of high intensity electrical or magnetic fields.

The Siemens 6AV6643-0CD01-1AX1 module comes with a two-year warranty.
