Siemens 6AV6644-0AA01-2AX0

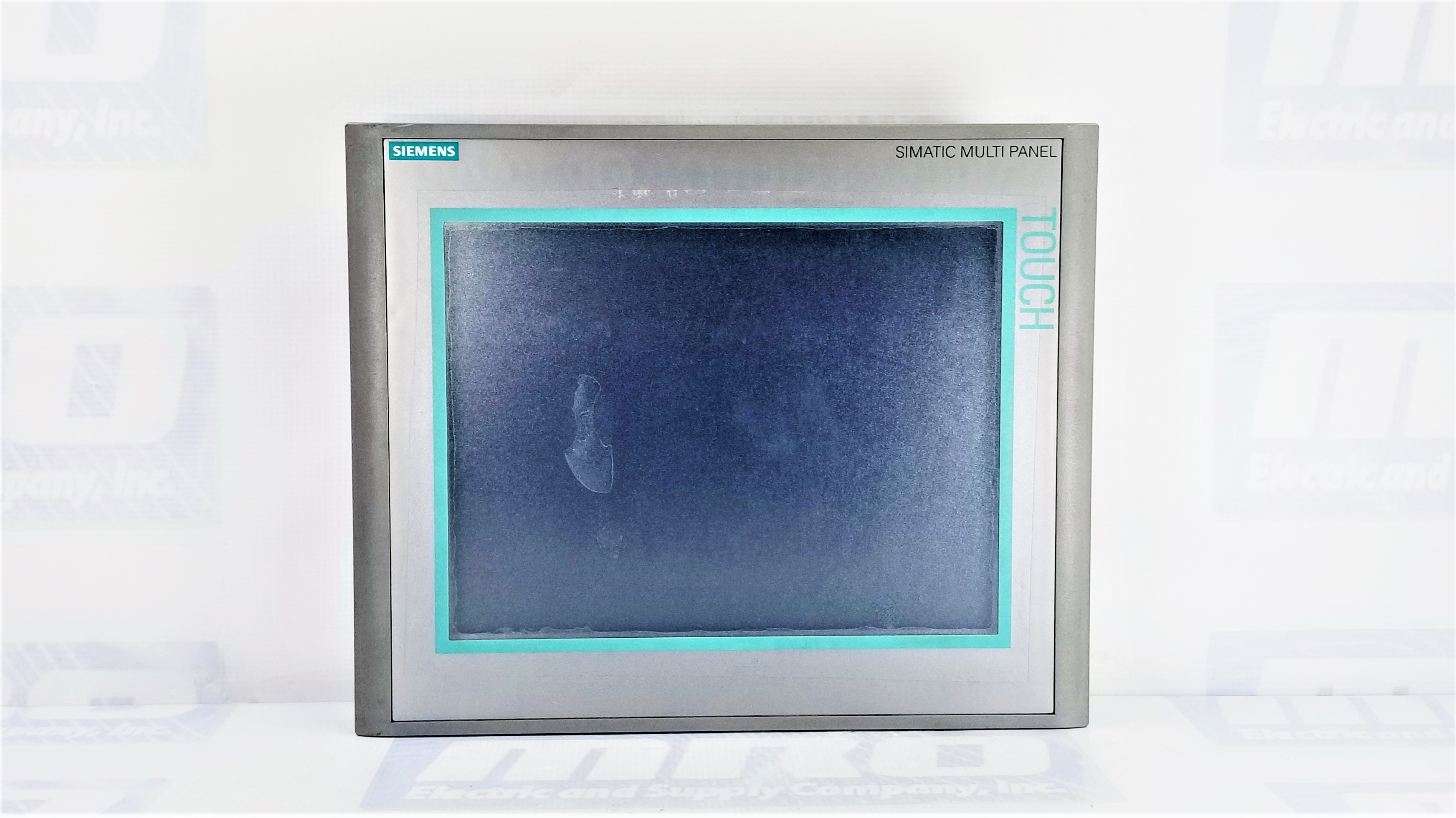

The SIMATIC HMI module 6AV6 644 0AA01 2AX0 is a multi panel (MP) 377 12” panel manufactured by Siemens for the industrial setting as an extension of the 370 series. The Siemens 6AV6 644 0AA01 2AX0 HMI includes a PROFIBUS port, two Ethernet ports for connection to PROFINET, 2 USB 2.0 ports, one CF slot for a memory card, a slot for an SD memory card or multimedia card, and a TFT screen with up to 64k color. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Features

The 6AV6 644 0AA01 2AX0 MP 377 12” panel module works on the Microsoft Windows CE 5.0 operating system.

It is included in the “Multifunctional Platform” category of Multi Panel units. The Siemens HMI 6AV6 644 0AA01 2AX0delivers enhanced communication options to the industrial office setting. The HMI has the Pocket Internet Explorer integrated into the module.

What kind of applications can you expect the SIMATIC HMI module 6AV6 644 0AA01 2AX0 MP 377 to support? The Siemens 6AV6 644 0AA01 2AX0 offers compatibility with a variety of industrial applications like the HMI WinCC flex, Sm@rtService, Sm@rtAccess, WinCC flexible/OPC server, WinCC flexible/ProAgent, WinCC flexible/Audit, and WinAC MP 2007.

With which standards can you expect the SIMATIC 6AV6 644 0AA01 2AX0 MP 377 to conform? This module conforms with requirements for emissions EN 61000-6-4: 2007, and requirements for interference immunity EN 61000-6-2: 2005.

Advantages

The SIMATIC HMI module 6AV6 644 0AA01 2AX0 MP 377 includes several functional ports. Located on the bottom of the HMI MP 377 device these ports enable power and operator interfacing. The first port is the power supply connector followed by RS-422 / RS-485 port X 10 / 1IF 1b. Center bottom of the 6AV6 644 0AA01 2AX0 MP 377 are the (two) 2 ports X1 P1 and X1 P2 for PROFINET connection.  Next are ports X20 and X21. These two ports are for USB connection. The final two ports on the bottom of the 6AV6 644 0AA01 2AX0 HMI panel are the Line in and Line out ports.  The line in port is also micro and is indicated with a red port connection. The line out is above the line in and is indicated with a green port connection.

How to use a 6AV6 644 0AA01 2AX0

What is the proper mounting installation for the 6AV6 644 0AA01 2AX0 MP 377? The HMI multi panel offers several mounting options.  The MP 377 panel module is compatible with mounting cabinets, control cabinets, switchboards, and consoles. The panel can be installed in both an inclined mounting position and a vertical mounting position.  Deviation from vertical is ≤ 35° for inclined installation and 0° for vertical installation. This device is self-ventilated and fine for use with a stationary cabinet.

When choosing a mounting position for the HMI unit, keep in mind the height and angle should be user-friendly. The MP 377 panel module should be mounted away from direct sunlight. The air vents on the Siemens HMI panel should remain uncovered at least 50 mm above and below and at least 10 mm in the rear of the MP 377 panel to retain proper ventilation.  Please observe all permissible mounting positions available.
