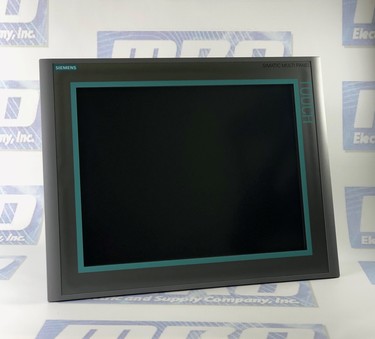

MANUFACTURER: Siemens
DESCRIPTION: 15" TOUCH MULTIPANEL, WINDOWS CE 5.0 COLOR-TFT-DISPLAY 12 MB USER MEMORY
PRODUCT TYPE INFO: SIMATIC MP 377
Part Number | 6AV6644-0AB01-2AX0 |
Manufacturer | Siemens |
Series | SIMATIC 277/577 |
Model # | 6AV66440AB012AX0 |
Type | HMI |
Warranty | 2 Year |
Screen | 15 in. |
Display | TFT |
Control | Touch Screen |
Alpha numeric Input | Yes |
Resolution | 1024 x 768 (WxH/pixel) |
Colors | 65536 colors |
Connections | 2 USB ports, 1 CF card slot |
Rated Current | 1.9 A |
Power | 45.6 W |
Memory | Flash/RAM |
Interfaces | 1 x RS422, 1 x RS485, 2 x Ethernet (RJ45) |
Degree of Protection (Front) | IP65, NEMA 4, NEMA 12 |
Degree of protection (Back) | IP20 |
Standards, approvals, certificates | CE, FM Class I Div. 2, cULus, EX-Zone 22, C-TICK, NEMA 4, NEMA 12 |
Languages | 16 online/runtime languages, 32 Languages per project |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6AV6644-0AB01-2AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6644-0AB01-2AX0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6AV6644-0AB01-2AX0, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6AV6644-0AB01-2AX0 for credit when ordering from MRO Electric
Additional Information
The HMI device MP 377 15" touch panel module 6AV6644-0AB01-2AX0 is a SIMATIC HMI component manufactured by Siemens. The design of the 6AV6644-0AB01-2AX0 enables operation under markedly bright light conditions. The MP 377 15" Touch daylight readable offers direct sunlight efficient display and touch technology through the use of transflective display properties fashioned in the panel.
The 6AV6644-0AB01-2AX0 MP 377 15" Touch daylight readable panel possesses an aluminum-coated front frame coved with impact-resistant paint. The glass on the panel enjoys high resistance against harsh cleaning agents and chemicals and it rates a 7 on the Mohs hardness scale. The panel certifications are geared toward a potentially explosive environment and for control stations.
The display is suitable for daylight applications. The HMI panel unit employs LED backlighting which has high contrast (up to 1000: 1), high brightness (up to 800 cd/m²), and energy-saving qualities. The panel retains good readability when used in high sunlight as well as dark. This is accomplished through transflective technology. Transflective technology uses both reflective and transmissive properties to offer good readability in both environments. The viewing angle is up to 160 degrees.
The SIMATIC 6AV6644-0AB01-2AX0 retains a sturdy touch surface for occupying rough environmental conditions. Rough environment considerations implemented in the design of the panel include Mohs 7 surface hard glass, exceptional optical properties, and ease of operation when wearing thin gloves. Recalibration is not required with this no drift unit. The module is made for use in all kinds of environments including dusty, humid, rain, snow, and ice.
What is the benefit of using the Siemens 6AV6644-0AB01-2AX0 SIMATIC HMI component? The distinguishing feature is the ability to dim the backlighting of the display in two ways. The backlighting can be dimmed internally on the panel itself and the backlighting can be dimmed on this module externally; this is done through a central process value (i.e. through a potentiometer by way of the PLC). This feature is valuable in situations where outdoor use is often in direct sunlight. Situations such as in control cabins on drilling rigs, and onboard ships where the control station is often in direct sunlight. Note that outdoor use is only permissible when the HMI device is installed in a recommended control cabinet. The control cabinet assists in controlling the ambient temperature, heating, or cooling the cabinet during operation. A reliable technician is suggested for cabinet design and a TEK (Temperature Extension Kit) panel option may be necessary.
Mounting the Siemens HMI device MP 377 15" touch panel module 6AV6644-0AB01-2AX0
The SIMATIC HMI 6AV6644-0AB01-2AX0 can be installed vertically as well as at an angle. Control cabinet mounting for the device is necessary as the device is not manufactured with a fan.
The SIMATIC 6AV6644-0AB01-2AX0 HMI device bears ATEX Zone 2/22, Class I, Div. 2 approvals specifically for oil and gas industry operating conditions.
The Siemens SIMATIC HMI MP 377 15" touch panel module 6AV6644-0AB01-2AX0 comes with a two-year warranty.
The 6AV6644-0AB01-2AX0 is a 15" TOUCH MULTIPANEL, WINDOWS CE 5.0 COLOR-TFT-DIS... that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products in the simatic-277-577 line come with a 2 year warranty from MRO Electric. We also carry HMI from other manufacturers such as FANUC and Yaskawa.
