6AV6647-0AB11-3AX0

2-year Warranty

Same Day Shipping

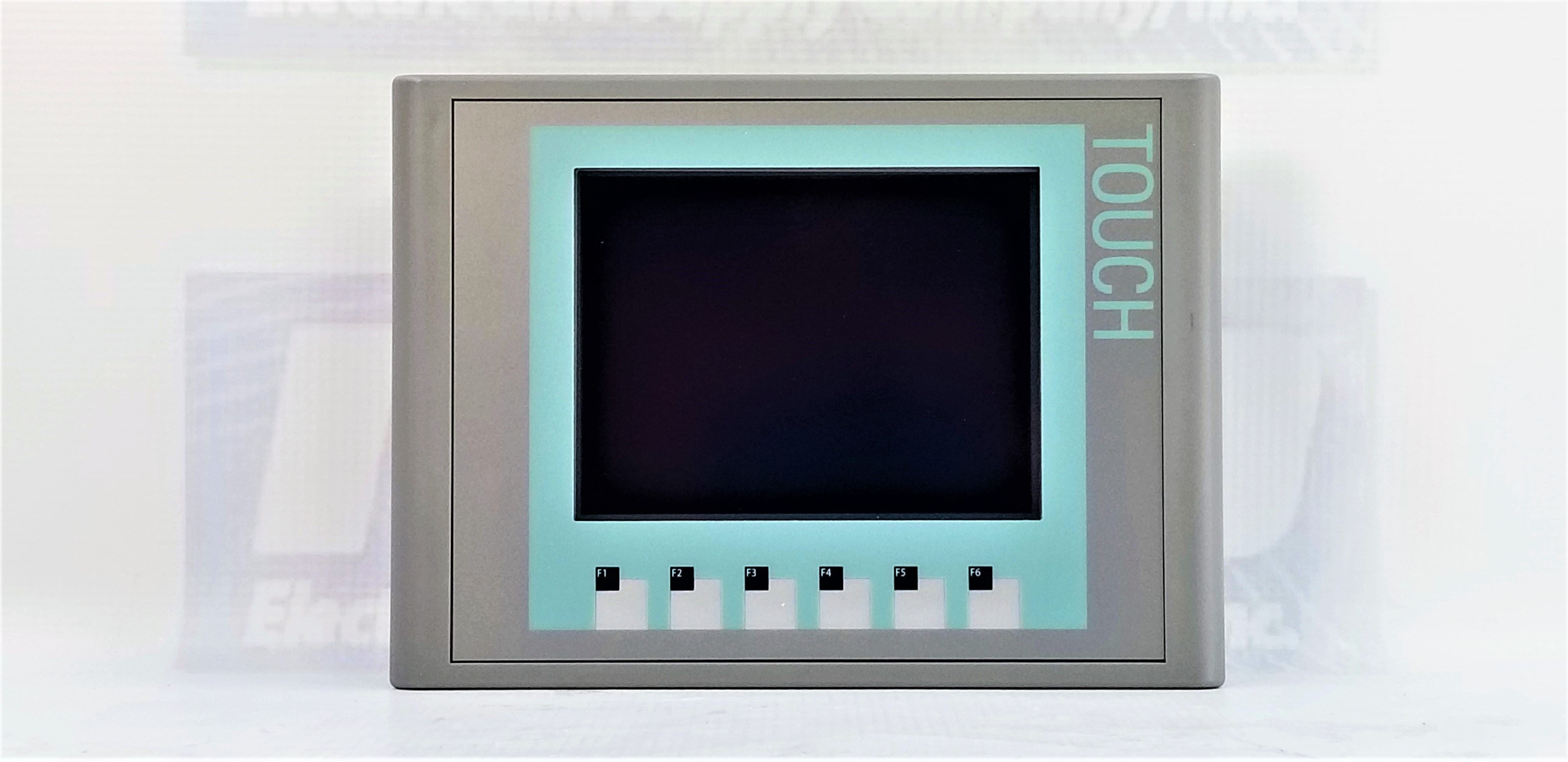

Siemens 6AV6647-0AB11-3AX0

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION:  HMI KTP600 BASIC PANEL, KEY /TOUCH OPERATION, 6 STN DISPLAY
PRODUCT TYPE INFO: SIMATIC 277/577


1 in stock


Free Shipping

2 Year warranty

Part Number6AV6647-0AB11-3AX0
ManufacturerSiemens
TypeHMIs
Model #6AV66470AB113AX0
Warranty2 Year
RangeSIMATIC
CategoryKTP600 Basic mono PN
OperationKey/touch
DisplaySTN
No. of colors4; Greyscale
Screen diagonal5.7 in
Resolution320 Pixel horizontal, 240 Pixel verticle
MTBF backlighting50 000 h
Function keys8
Mount positionVerticle
DesignTouchscreen
Supply voltage24 VDC
Input current0.24 A
Power input6 W
ProcessorRISC 32 bit
MemoryFlash, RAM, 1 Mbyte
InterfacesIndustrial Ethernet interfaces
ProtocolsTCP/IP, DHCP, SNMP, DCP, LLDP, EtherNet/IP, MODBUS
ProtectionIP65 front, IP20 rear
StandardsCE mark, cULus, RCM (formerly C-TICK), KC approval

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV6647-0AB11-3AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6647-0AB11-3AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV6647-0AB11-3AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 2lbs

Want it shipped tomorrow?

  • Order within the next 21 hours and 21 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV6647-0AB11-3AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV6647-0AB11-3AX0 Overview

Siemens 6AV6647-0AB11-3AX0

The Siemens 6AV6647-0AB11-3AX0 is a SIMATIC HMI (Human-Machine Interface) KTP600 Basic Mono PN, offering a comprehensive solution for key and touch operation in industrial automation. As part of the SIMATIC HMI series, this Basic Panel features a 6-inch STN (Super-Twisted Nematic) display with 4 grayscale colors and is equipped with a PROFINET interface for seamless communication in the industrial network. The configuration of the device is facilitated through software such as WinCC Flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP7 Basic V10.5.

Display and Design:

The device boasts a 5.7-inch STN display with a screen diagonal of 5.7 inches, providing a display width of 115.2 mm and a display height of 86.4 mm. The 4 grayscale colors enhance visibility and clarity in industrial environments. The resolution stands at 320 x 240 pixels, ensuring sharp and detailed graphics. The display is complemented by a robust backlight with a mean time between failures (MTBF) of 50,000 hours at 25°C.

Control Elements:

The control elements include a numeric keyboard and an onscreen alphanumeric keyboard. Additionally, there are six function keys for user-defined functionalities. The absence of LED-equipped keys and system keys simplifies the interface while ensuring straightforward operation.

Touch Operation and Installation:

The design incorporates touchscreen functionality, allowing intuitive and user-friendly interaction. The device can be mounted in both portrait and landscape formats, offering installation flexibility. The supply voltage is DC 24V, with a permissible range between 19.2V and 28.8V. The current consumption is rated at 0.24A, and the device exhibits an inrush current of 0.5 A²·s.

Processor and Memory:

The processor is an ARM-based RISC 32-bit architecture, providing efficient processing capabilities. The device includes flash memory and RAM, with 512 kbyte of usable memory for user data.

Interfaces and Industrial Ethernet:

The SIMATIC HMI KTP600 Basic Mono PN is equipped with one Industrial Ethernet interface supporting PROFINET. It adheres to various protocols, including TCP/IP, DHCP, SNMP, DCP, LLDP, and more. The device does not have RS 485, USB, or SD card slots but supports Modbus via Modicon (MODBUS TCP/IP) protocol for enhanced connectivity.

Diagnostics, Protection, and Certifications:

The device provides diagnostic messages, ensuring efficient monitoring of the system. It features IP20 protection and IP65 at the front, making it suitable for industrial environments. Certifications include CE, KC approval, cULus, C-TICK, GL, ABS, BV, DNV, LRS, and Class NK.

Operating Conditions and Configuration:

The SIMATIC HMI operates in vertical and tilted positions, with permissible operating temperatures ranging from 0°C to 50°C. The device supports various languages and is configurable using WinCC Flexible, STEP 7 Basic, and other compatible software.

Functionality and Compatibility:

With libraries, alarm logging systems, and process value displays, the device offers a range of functionalities. It is compatible with WinCC Flexible, STEP 7 Professional, and other software versions.

Frequently Asked Questions

1. What is the primary function of the 6AV6647-0AB11-3AX0 SIMATIC HMI KTP600 Basic Mono PN?

  • The primary function of this HMI panel is to serve as a Human-Machine Interface for industrial automation, allowing users to monitor and control processes through key and touch operation.

2. What is the size and type of the display on the 6AV6647-0AB11-3AX0?

  • The HMI panel features a 5.7-inch STN display with a resolution of 320 x 240 pixels and 4 grayscale colors.

3. How is the 6AV6647-0AB11-3AX0 powered?

  • The device is powered by DC 24V, and the permissible voltage range is between 19.2V and 28.8V.

4. Does the HMI panel support touch operation?

  • Yes, the device is designed with touchscreen functionality, enabling intuitive and user-friendly interaction.

5. What is the Industrial Ethernet interface used for?

  • The HMI panel is equipped with an Industrial Ethernet interface supporting PROFINET, facilitating seamless communication in industrial networks.

6. Can the 6AV6647-0AB11-3AX0 be configured using WinCC Flexible?

  • Yes, the device can be configured using WinCC Flexible 2008 SP2 Compact, providing flexibility in setup and customization.

7. What are the languages supported by the HMI panel?

  • The HMI panel supports various languages, including D, GB, F, I, E, Chinese traditional, Chinese simplified, DK, FIN, GR, J, KP / ROK, NL, N, PL, P, RUS, S, CZ, SK, TR, and H.

8. Does the HMI panel have protection against environmental factors?

  • Yes, the device features IP20 protection and IP65 at the front, making it suitable for industrial environments with varying conditions.

9. What certifications does the 6AV6647-0AB11-3AX0 have?

  • The HMI panel is certified with CE, KC approval, cULus, C-TICK, GL, ABS, BV, DNV, LRS, and Class NK.

10. How is the HMI panel configured for communication protocols?

  • The device supports various protocols such as PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and more, ensuring compatibility with industrial communication standards.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Contact Us Today For More Information About Siemens Products

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV6647-0AB11-3AX0, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV6647-0AB11-3AX0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
