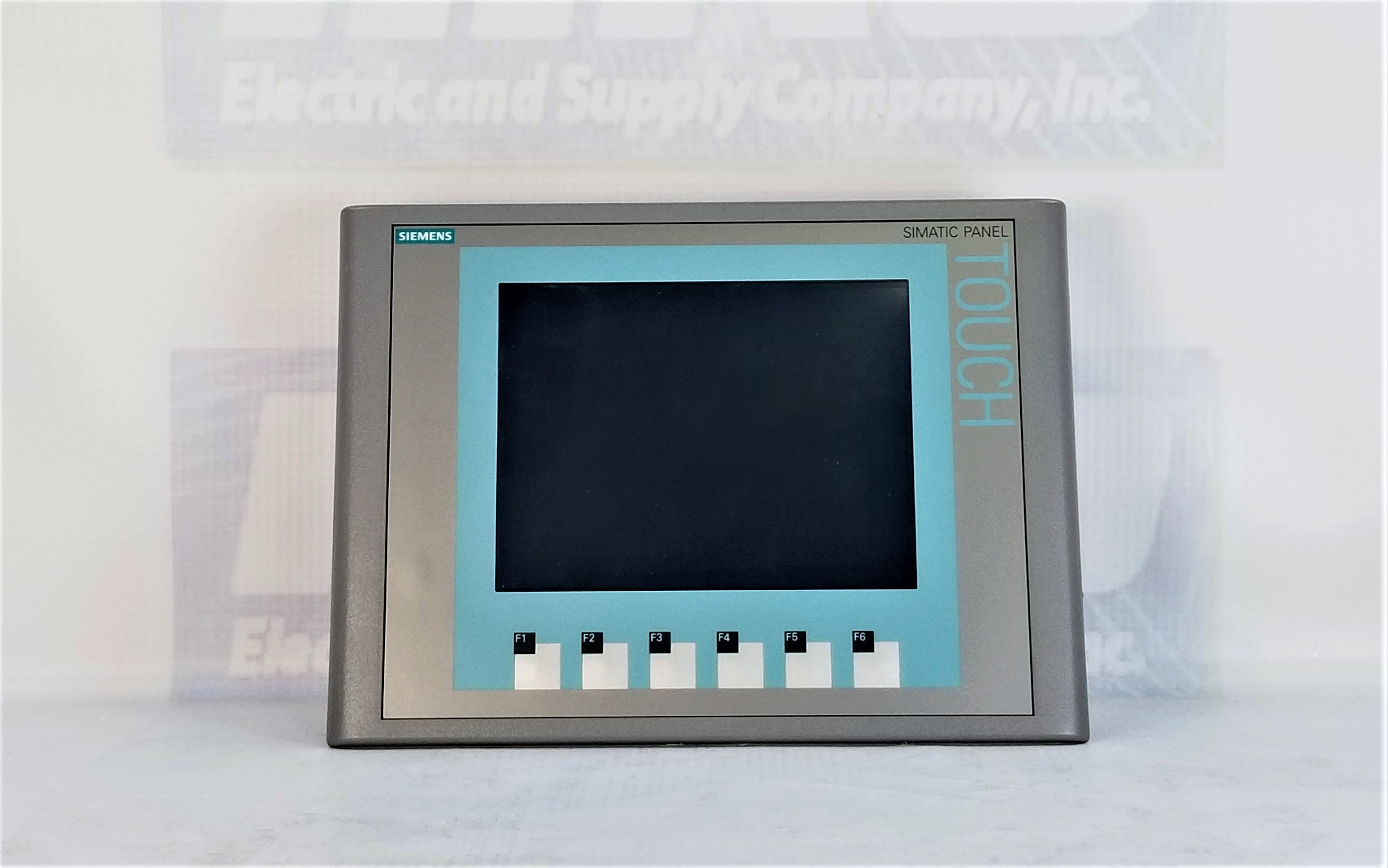

Siemens 6AV6647-0AD11-3AX0

SIMATIC HMI KTP600 Basic Color PN

The 6AV6647-0AD11-3AX0, known as the SIMATIC HMI KTP600 Basic Color PN, is a feature-rich basic panel designed for key and touch operation. With a 6-inch TFT display capable of rendering 256 colors, this HMI panel is equipped with a PROFINET interface, making it configurable with WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5. Let's explore the key features, technical specifications, and applications of this versatile HMI panel.

Display and Design

The HMI panel boasts a 5.7-inch TFT display with a screen resolution of 320 x 240 pixels. With a diagonal screen size of 5.7 inches, the display provides a clear and vibrant interface for operators. The display supports 256 colors, ensuring a rich and detailed visualization of processes. The backlighting has a Mean Time Between Failures (MTBF) of 50,000 hours at 25 °C.

Control Elements and Keyboard

Featuring a keyboard with 6 function keys, the HMI panel allows for convenient and intuitive operation. While it doesn't have LED-equipped function keys, the panel compensates with an onscreen numeric keyboard and alphanumeric keyboard for versatile input.

Touch Operation and Installation

Designed with touch screen functionality, the HMI panel utilizes analog-resistive touch technology. It can be mounted in both vertical and landscape formats, offering installation flexibility. The maximum permissible angle of inclination without external ventilation is 35°, allowing for optimal visibility.

Power and Processor

The HMI panel operates on a DC power supply with a rated value of 24 V and a permissible range between 19.2 V and 28.8 V. The current consumption at the rated value is 0.35 A. The processor is a RISC 32-bit type, ensuring efficient and responsive performance.

Memory and Interfaces

Equipped with flash and RAM, the HMI panel has 1 Mbyte of memory available for user data. It features a PROFINET interface for seamless communication in industrial environments. While it lacks USB interfaces, it supports industrial Ethernet with two status LEDs.

Environmental Conditions

The HMI panel is designed for indoor use, with an operating temperature range from 0 °C to 50 °C. The front has an IP65 degree of protection, making it resistant to dust and water, while the rear has an IP20 protection level. The HMI panel conforms to various international standards and certifications, including CE, cULus, RCM, and KC approval.

Software Compatibility

This HMI panel is compatible with configuration software such as STEP 7 Basic (TIA Portal), STEP 7 Professional (TIA Portal), WinCC flexible Compact, WinCC flexible Standard, WinCC flexible Advanced, WinCC Basic (TIA Portal), WinCC Comfort (TIA Portal), and WinCC Professional (TIA Portal).

Functionality and Applications

With support for libraries, web browsers, and SIMATIC WinCC Sm@rtServer, the HMI panel offers versatile functionality. It is suitable for applications requiring message indicators, alarm systems, process value display, recipe management, and more. The HMI panel can be used across various industries, including manufacturing, automation, and process control.

FAQs: Siemens 6AV6647-0AD11-3AX0

What is the primary function of the Siemens 6AV6647-0AD11-3AX0?

This unit is a Human-Machine Interface (HMI) from the SIMATIC HMI range, designed to provide operators with an intuitive interface for monitoring and controlling industrial processes.

What type of display does the device have?

The device features a TFT display with a 5.7-inch diagonal, a resolution of 320 x 240 pixels, and supports 256 colors for clear visualization of processes.

How is the device mounted?

The device is mounted vertically with a maximum mounting angle of 35°, ensuring ergonomic installation in various setups.

What communication protocols are supported?

It supports PROFINET, EtherNet/IP, and MODBUS TCP/IP protocols, ensuring seamless integration into different industrial networks.

What is the rated supply voltage?

The HMI operates on a 24 VDC power supply.

What is the protection rating of the device?

The device is rated IP65 on the front panel, offering resistance to dust and water, and IP20 on the rear for standard industrial environments.

What type of processor does it use?

It has a RISC 32-bit processor, providing efficient performance for HMI applications.

Does the device include function keys?

It includes six function keys, enabling quick access to commonly used commands and operations.

What certifications does the device have?

The HMI complies with CE mark, cULus, RCM (formerly C-TICK), and KC approvals, ensuring adherence to global standards for safety and performance.

In what industries is this HMI typically used?

The 6AV6647-0AD11-3AX0 is commonly used in manufacturing, automation, and process control industries where real-time monitoring and control are essential.
