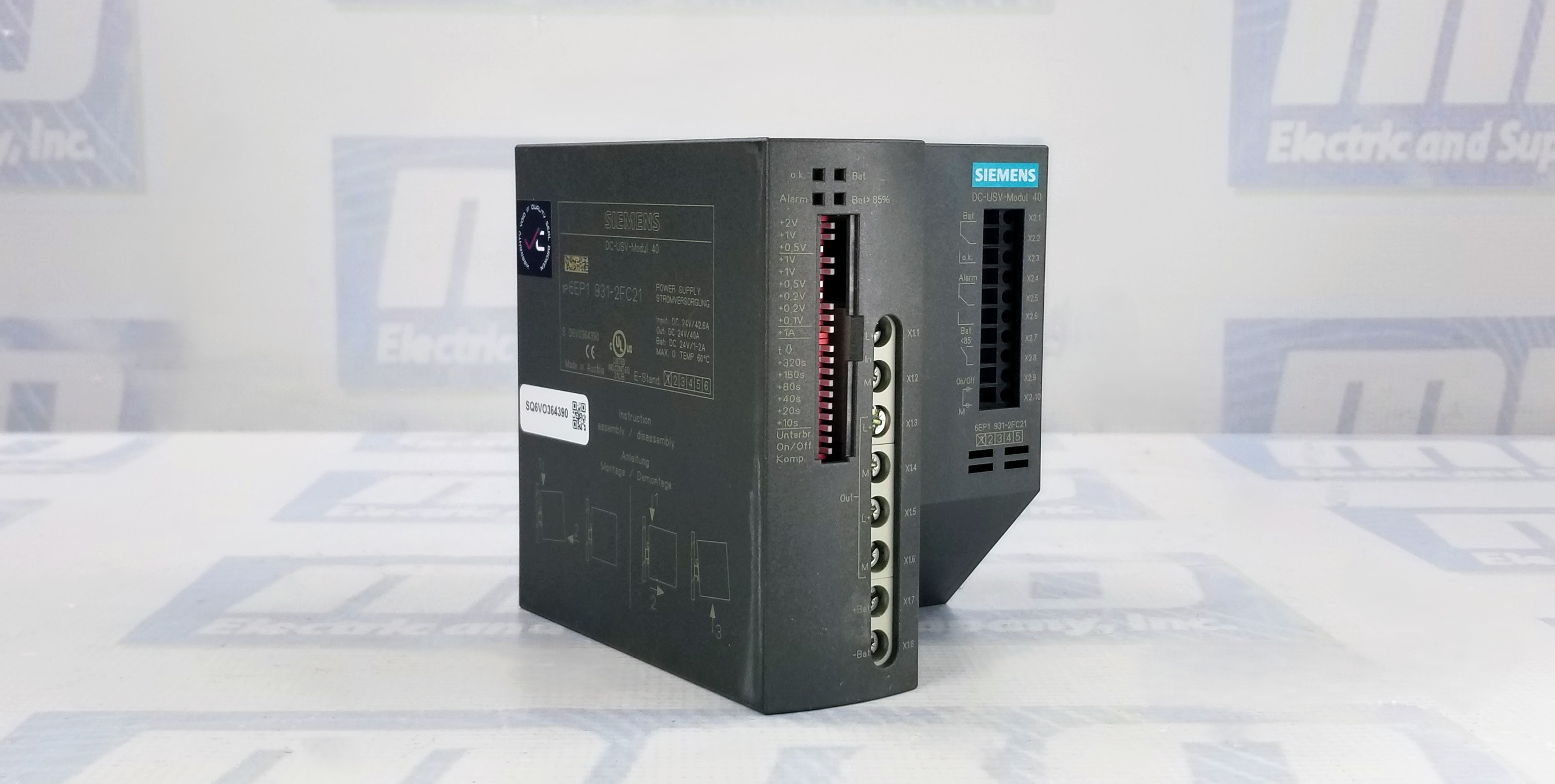

Siemens 6EP1931-2FC21 Power Supply
Part Number | 6EP1931-2FC21 |
Manufacturer | Siemens |
Type | Power Supplies |
Model # | 6EP19312FC21 |
Warranty | 2 Year |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6EP1931-2FC21 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6EP1931-2FC21 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6EP1931-2FC21, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6EP1931-2FC21 for credit when ordering from MRO Electric
The Siemens 6EP1931-2FC21 SITOP DC UPS module is a robust and reliable power backup solution engineered to ensure continuous 24V DC power delivery, even during power interruptions. With a 40A output current capacity, it is ideal for industrial automation systems, machinery control, and sensitive electronic operations that demand an uninterrupted power source. Operating within a 22 to 29 V DC input range and delivering a stable 24 V DC output, this unit safeguards your equipment against sudden shutdowns and data loss, preserving system integrity and minimizing operational disruptions.
This UPS module features an adjustable buffer response voltage, preset at 22.5 V but configurable between 22 and 25.5 V in 0.5 V increments, allowing users to fine-tune performance to their application needs. During power outages, the output remains at 24 V DC in buffering mode, with voltage ranging between 19 and 28.5 V depending on system conditions. The unit draws a typical current of 40 A and includes a small additional draw for battery maintenance, ensuring optimal battery readiness without compromising primary performance.
Energy efficiency is a hallmark of the 6EP1931-2FC21, with a typical efficiency rating of 97.2% during normal operations and 96.9% when operating on battery backup. This high efficiency minimizes energy waste, reduces heat generation, and helps lower overall operating costs. Typical power losses are kept minimal at just 28.6 W under regular operation and 33.6 W during battery mode, making it both an environmentally and economically sound choice.
Operators can easily assess operational states through a comprehensive LED indicator system. A green LED signals standard operation, while yellow and red LEDs indicate battery mode and alarms. These indicators are paired with floating changeover and NO contacts that provide remote signaling of conditions such as battery status, alarms, and voltage thresholds. This precise and real-time communication system enhances safety and reliability by informing users of system health.
The UPS module is designed to meet rigorous industrial standards. It stands up to demanding conditions with a protection class of IP20 and compliance with UL, CE, and marine certifications such as ABS and DNV. It supports DIN rail mounting and is compactly built with a width of 102 mm and a height of 125 mm, saving valuable cabinet space. The unit’s environmental resilience includes operation from -25°C to +60°C, and it’s classified for climate category 3K3 with up to 95% non-condensing humidity.
What is the input voltage range for the Siemens 6EP1931-2FC21?
The input voltage range is 22 to 29 V DC, with a rated value of 24 V DC.
What is the maximum output current?
It can deliver up to 40 A of output current.
Does this UPS provide pure 24 V output during buffering mode?
Depending on conditions, it maintains 24 V in buffering mode, ranging between 19 and 28.5 V.
Can I adjust the voltage at which buffering begins?
It is adjustable from 22 to 25.5 V in 0.5 V steps.
What type of energy storage does it use?
It uses external rechargeable batteries for energy storage.
Is it compatible with DIN rail mounting?
Yes, it snaps onto a standard EN 60715 DIN rail.
What is the typical efficiency rating?
It offers 97.2% efficiency in normal operation and 96.9% on battery.
Does it include reverse polarity protection?
Yes, it has reverse polarity protection for both input and battery terminals.
Are there visual indicators for battery status?
There are LED indicators for normal operation, battery mode, alarm, and battery level above 85%.
What warranty is offered?
The unit has a 2-year warranty from MRO Electric and Supply and free shipping.
