Siemens 6ES7132-1BL00-0XB0

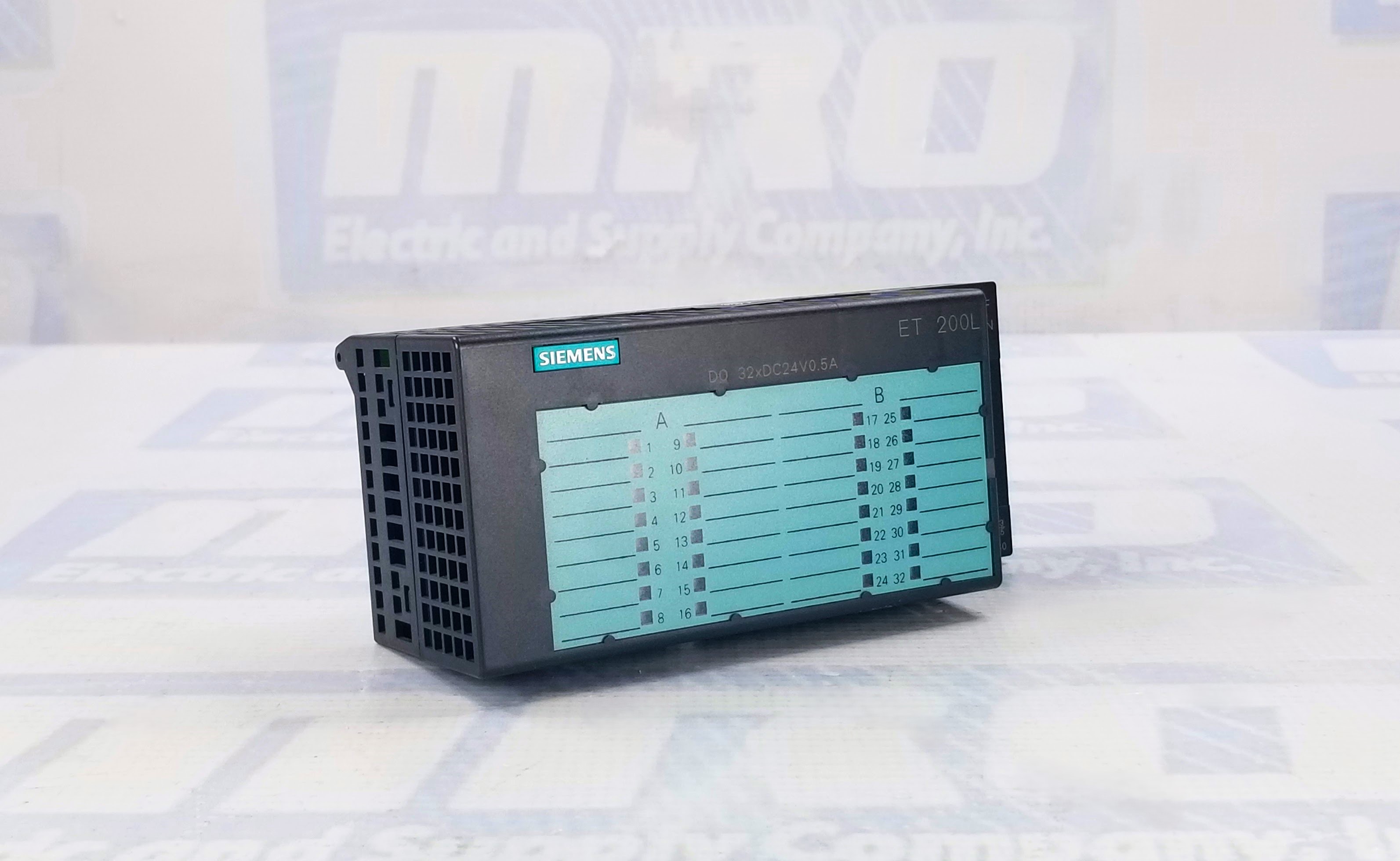

Siemens 6ES7132-1BL00-0XB0 Digital Output Module

The Siemens 6ES7132-1BL00-0XB0 is a robust digital output module designed for use with the SIMATIC DP ET 200L distributed I/O system. Engineered for high-density digital output control, this electronic module features 32 output channels, each capable of handling 0.5 amps at 24V DC. Its compact and efficient design supports complex automation environments where precise digital control and reliable performance are critical. As part of the ET 200L family, it is ideal for industrial applications requiring modularity, fast response times, and dependable signal switching under various operational conditions.

High-Density Output with Compact Footprint

The 6ES7132-1BL00-0XB0 provides 32 digital output points in a single, space-saving module. This high channel density helps reduce the amount of physical wiring and panel space required for I/O configurations. This is especially beneficial in applications with limited cabinet space or large numbers of controlled devices. Despite its compact form factor, the module delivers reliable switching power of up to 0.5A per channel, supporting various field devices such as actuators, valves, contactors, and indicators.

Optimized for 24V DC Industrial Applications

This output module operates at 24V DC, a standard control voltage in industrial automation. Each of the 32 outputs can be independently switched and is designed to drive digital signals to field devices with consistent and stable output. The 0.5A output capability per channel ensures the module can handle moderate electrical loads, making it versatile enough for discrete output tasks in manufacturing, packaging, material handling, and process control environments.

Seamless Integration with SIMATIC ET 200L

Built specifically for the SIMATIC DP ET 200L system, the 6ES7132-1BL00-0XB0 integrates effortlessly into PROFIBUS networks, supporting distributed automation setups. The ET 200L series is known for its ease of installation and plug-in connections, allowing for fast deployment and expansion in distributed environments. This module supports hot-swapping, simplifying maintenance and replacement without requiring system downtime, and is a critical benefit for 24/7 operations.

Durability and Trusted Support

Like all Siemens automation components, the 6ES7132-1BL00-0XB0 is built to withstand the demands of industrial use, including resistance to temperature fluctuations, vibration, and electrical interference. When sourced through MRO Electric and Supply, this module includes a 2-year warranty and benefits from free shipping. MRO Electric ensures all parts are thoroughly tested and ready for rapid deployment, backed by expert customer support for configuration and integration assistance.

Frequently Asked Questions (FAQ)

What system is this module designed for?

This output module is built with the Siemens SIMATIC DP ET 200L distributed I/O system.

How many digital outputs does it support?

The module features 32 digital output channels.

What is the output voltage and current per channel?

Each channel operates at 24V DC and supports up to 0.5 amps of output current.

Is it suitable for controlling field devices like actuators?

It can drive various 24V DC field devices, including actuators, relays, and indicator lights.

Can this module be hot-swapped?

It supports hot-swapping when installed in ET 200L systems, allowing replacement without halting operations.

Is it compatible with PROFIBUS networks?

Yes, it integrates seamlessly with PROFIBUS DP as part of the ET 200L system.

Is the module compact for panel space savings?

Its high channel density and slim profile reduce cabinet size and wiring complexity.

What kind of warranty is included?

A 2-year warranty is provided when purchased from MRO Electric and Supply.

Does it support diagnostics or fault indication?

The ET 200L system can access basic system diagnostics, although this model focuses on high-output density.

What industries typically use this module?

It is commonly used in manufacturing, packaging, automotive assembly, and process automation, where compact and high-output digital control is needed.
