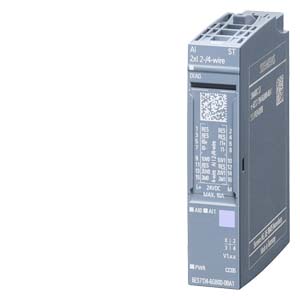

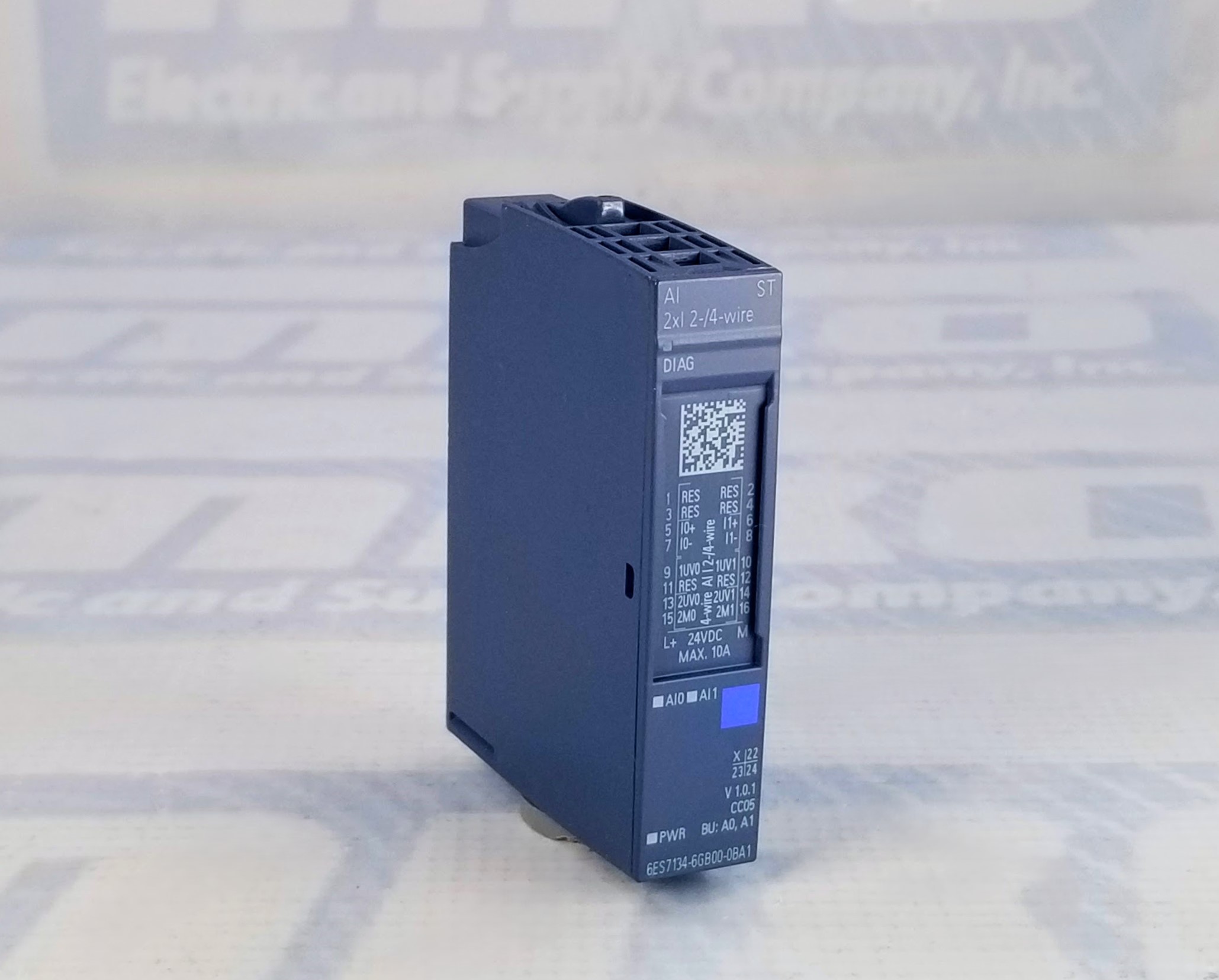

Siemens 6ES7134-6GB00-0BA1

Compact and Reliable Analog Input Solution

The Siemens 6ES7134-6GB00-0BA1 is a high-precision analog input module within the SIMATIC S7 series, designed to provide seamless and efficient data acquisition for industrial automation systems. Classified under the VDC Logic I/O Module category, this device is engineered to accept analog signals through two channels, offering dependable input processing for various control tasks. Operating on a standard 24 VDC supply, the module supports 2-wire and 4-wire connection types, making it versatile for different signal input configurations across factory floors, process plants, and automated machinery.

Exceptional Accuracy and Diagnostic Capabilities

This module features 16-bit resolution, enabling highly accurate signal measurements and ensuring precise control of analog values from sensors and transmitters. It is well-suited for applications requiring detailed monitoring, such as temperature control, pressure regulation, and flow measurement. Integrated diagnostic capabilities allow the system to detect issues early, such as wire breakage or signal inconsistencies, enhancing reliability and reducing maintenance downtime. The built-in diagnostics support proactive fault detection, giving users an advantage in predictive maintenance environments.

Design Flexibility and Compatibility

Designed for use with BU (Base Units) type A0 and A1, the Siemens 6ES7134-6GB00-0BA1 ensures easy and secure integration into existing automation systems. The module features a standardized color code—CC05—for quick identification and wiring accuracy during setup and maintenance. This attention to user-friendly details makes the installation process straightforward and reduces the chance of errors during configuration. As part of the SIMATIC S7 ecosystem, this module is fully compatible with other Siemens modules and controllers, simplifying system expansion and integration.

Compact and Industrial-Grade Construction

This analog input module is engineered to operate in challenging industrial environments where accuracy and durability are essential. Its compact design allows optimal space usage within control cabinets, supporting dense I/O configurations without compromising accessibility. Whether used in manufacturing, water treatment, or energy systems, its rugged design and precise analog signal processing increase system uptime and operational efficiency.

Availability and Customer Support

The Siemens 6ES7134-6GB00-0BA1 is available for immediate purchase through MRO Electric and Supply, with free shipping and a 2-year warranty included. This ensures peace of mind and quick deployment for urgent projects or replacements. MRO Electric provides comprehensive support, including setup assistance, technical consultation, and product compatibility guidance, making it easier for engineers and system integrators to implement the module into various industrial applications.

FAQs

What kind of signals does the 6ES7134-6GB00-0BA1 support?

It accepts analog input signals with 16-bit resolution and supports 2-wire and 4-wire configurations.

Is this module compatible with SIMATIC ET 200 systems?

It is designed for use within the SIMATIC S7 and ET 200 I/O environments.

How many channels are available on this module?

It provides two analog input channels for data acquisition.

Can the module detect wiring faults?

It includes built-in diagnostics to detect issues like wire breaks and signal errors.

What is the power supply requirement?

The module operates on 24 VDC power inputs.

What BU types is the module compatible with?

It fits BU (Base Unit) type A0 and A1 for flexible installation.

What is the resolution of the analog input?

It features a 16-bit resolution for high-precision signal measurement.

Is it color-coded for easy installation?

Yes, it uses the CC05 color code for quick and accurate wiring.

Where can I purchase this module?

It is available immediately from MRO Electric and Supply with free shipping and a 2-year warranty.

Can this module be used in harsh industrial environments?

Yes, it is designed for durability and accuracy in various industrial settings.
