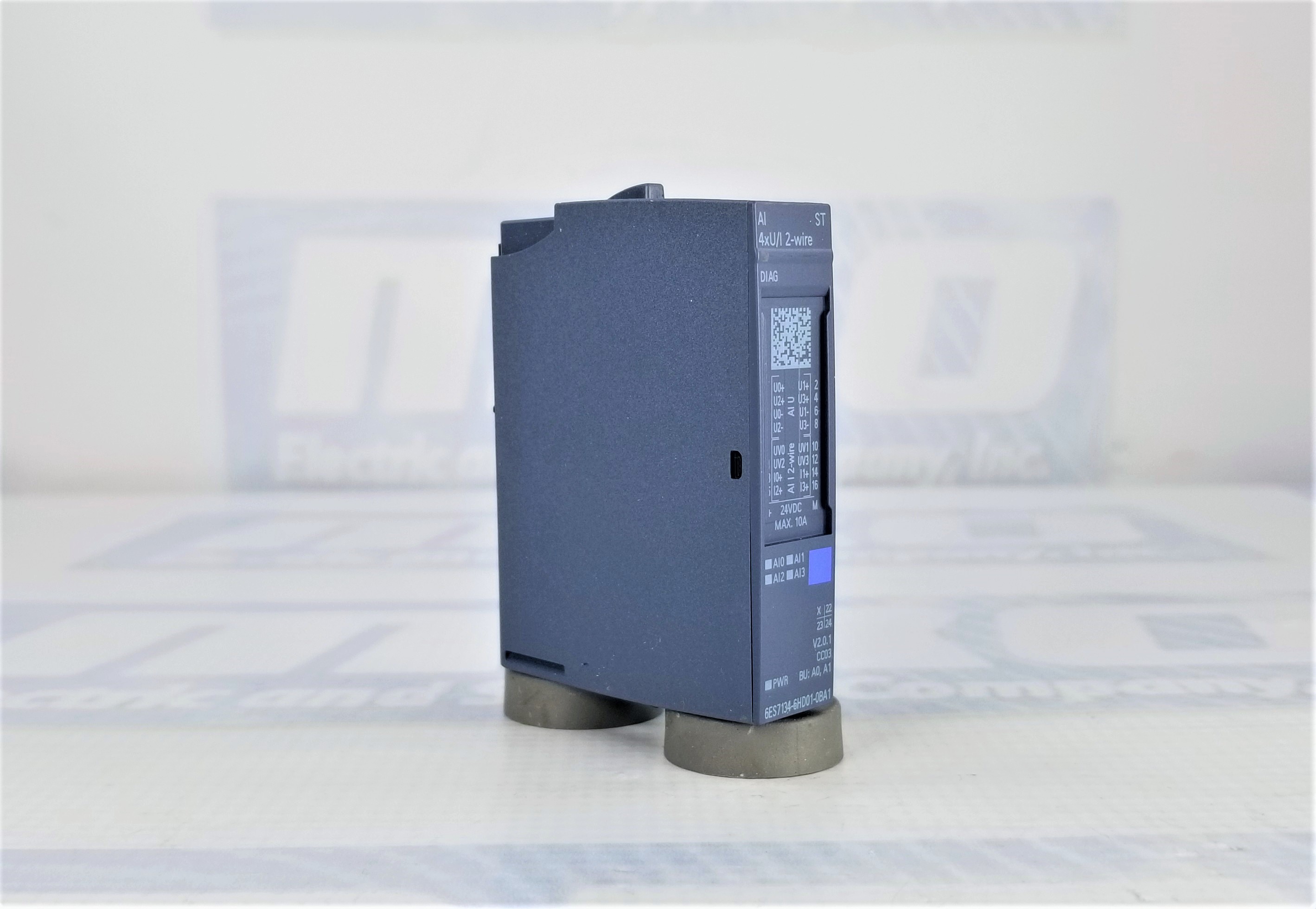

SIMATIC ET 200 SP AI 4XU/I 2-WIRE STANDARD, FITS TO BU-TYPE A0
| Part Number | 6ES7134-6HD01-0BA1 |
| Manufacturer | Siemens |
| Type | I/O Modules |
| Model # | 6ES71346HD010BA1 |
| MRO Warranty | 2 Year |
| Range | SIMATIC ET |
| Category | 200 SP |
| HW funct stat | from FS02 |
| Supply voltage | 24 V |
| Input current | 37 mA; without sensor supply |
| Power loss | 0.85 W; Without encoder supply voltage |
| Base Unit | BU type A0, A1 |
| Analog input | 4 Differential inputs |
| Cable length | 1 000 m; 200 m for voltage measurement |
| Resolution | 16 bit |
| Interference voltage suppression/interference frequency | 16.6 / 50 / 60 Hz |
| Conversion time | 180 / 60 / 50 ms |
| Diagnostic indication | LED |
| Ambient temp (H) | -30 °C; < 0 °C as of FS02 |
| Ambient temp (V) | -30 °C; < 0 °C as of FS02 |
| Height | 73mm |
| Width | 15 mm |
| Depth | 58 mm |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6ES7134-6HD01-0BA1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7134-6HD01-0BA1 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6ES7134-6HD01-0BA1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6ES7134-6HD01-0BA1 for credit when ordering from MRO Electric
The Siemens 6ES71346HD010BA1, a distinguished component in the SIMATIC ET 200 SP product line, stands as a testament to Siemens' commitment to cutting-edge automation technology. Designed with precision and versatility in mind, the 6ES71346HD010BA1 serves as an AI 4XU/I 2-Wire Standard and seamlessly fits into the BU-Type A0 interface.
As part of the SIMATIC ET 200 SP product family, the 6ES71346HD010BA1 aligns with Siemens' reputation for delivering modular and scalable solutions for industrial automation. The 6ES71346HD010BA1 ET 200 SP series is known for its adaptability to a diverse range of applications, and this particular module contributes to the series' legacy of
precision and reliability.
At its core, the 6ES71346HD010BA1 is classified as an AI (Analog Input) 4XU/I module. The AI designation signifies its role in handling analog input signals, allowing the integration of real-world data into automation processes. In this case, it accommodates 4 channels (4XU) for analog input, operating with a 2-Wire Standard configuration.
The 2-Wire Standard configuration is a crucial aspect of the 6ES71346HD010BA1's design, indicating compatibility with systems employing a two-wire communication protocol. This feature enhances the flexibility of the module, making it suitable for a wide range of industrial setups where streamlined communication is imperative.
The compatibility with BU-Type A0 is a key attribute of the 6ES71346HD010BA1 module. This indicates that it seamlessly integrates into the Backplane Unit (BU) Type A0, providing a secure and standardized connection within the SIMATIC ET 200 SP system. The BU serves as the backbone of the system, facilitating communication and power distribution among the various modules.
Beneath the surface, the 6ES71346HD010BA1 module boasts technical prowess that enhances its functionality. From signal processing to data accuracy, Siemens has incorporated advanced technologies to ensure optimal performance. The module's ability to convert analog signals to digital data with precision aligns with the high standards set by Siemens in the field of industrial automation.
The AI 4XU/I 2-Wire Standard configuration makes the 6ES71346HD010BA1 module versatile in its application. Industries ranging from manufacturing to process control can leverage its capabilities to integrate analog data seamlessly into their automation processes. Whether monitoring temperature, pressure, or other analog parameters, the 6ES71346HD010BA1 provides a robust solution for real-time data acquisition.
What is the primary function of the 6ES7134-6HD01-0BA1 module?
The 6ES71346HD010BA1 serves as an I/O module for the SIMATIC ET 200 SP range, offering four differential analog inputs for precise signal measurement and processing.
What is the input current and power loss of the 6ES71346HD010BA1?
The input current of the 6ES71346HD010BA1 is 37 mA (without sensor supply), and the power loss is 0.85 W (excluding encoder supply voltage).
What type of base units are compatible with the 6ES71346HD010BA1?
The 6ES71346HD010BA1 is compatible with BU type A0 and A1 base units.
What is the resolution of the analog inputs?
The 6ES71346HD010BA1 provides a 16-bit resolution, ensuring high-precision measurements.
What is the maximum supported cable length?
The 6ES71346HD010BA1 supports a cable length of 1000 meters for standard applications and 200 meters for voltage measurements.
What are the supported interference suppression frequencies?
The 6ES71346HD010BA1 can suppress interference at 16.6 Hz, 50 Hz, and 60 Hz.
Does the 6ES71346HD010BA1 include diagnostic features?
Yes, the 6ES71346HD010BA1 features a diagnostic LED indication for easy monitoring and troubleshooting.
What are the 6ES71346HD010BA1's dimensions?
The 6ES71346HD010BA1 measures 73 mm in height, 15 mm in width, and 58 mm in depth, making it compact and space-efficient
What is the operating temperature range?
The 6ES71346HD010BA1 operates in ambient temperatures as low as -30°C, with additional specifications for temperatures below 0°C from hardware functional status FS02 onward.
Is the 6ES71346HD010BA1 covered by a warranty?
Yes, the 6ES71346HD010BA1 has a 2-year MRO warranty for peace of mind and reliability assurance.
Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year MRO warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as FANUC and Yaskawa.
Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6ES7134-6HD01-0BA1, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6ES7134-6HD01-0BA1 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
