Siemens 6ES7138-4DB03-0AB0

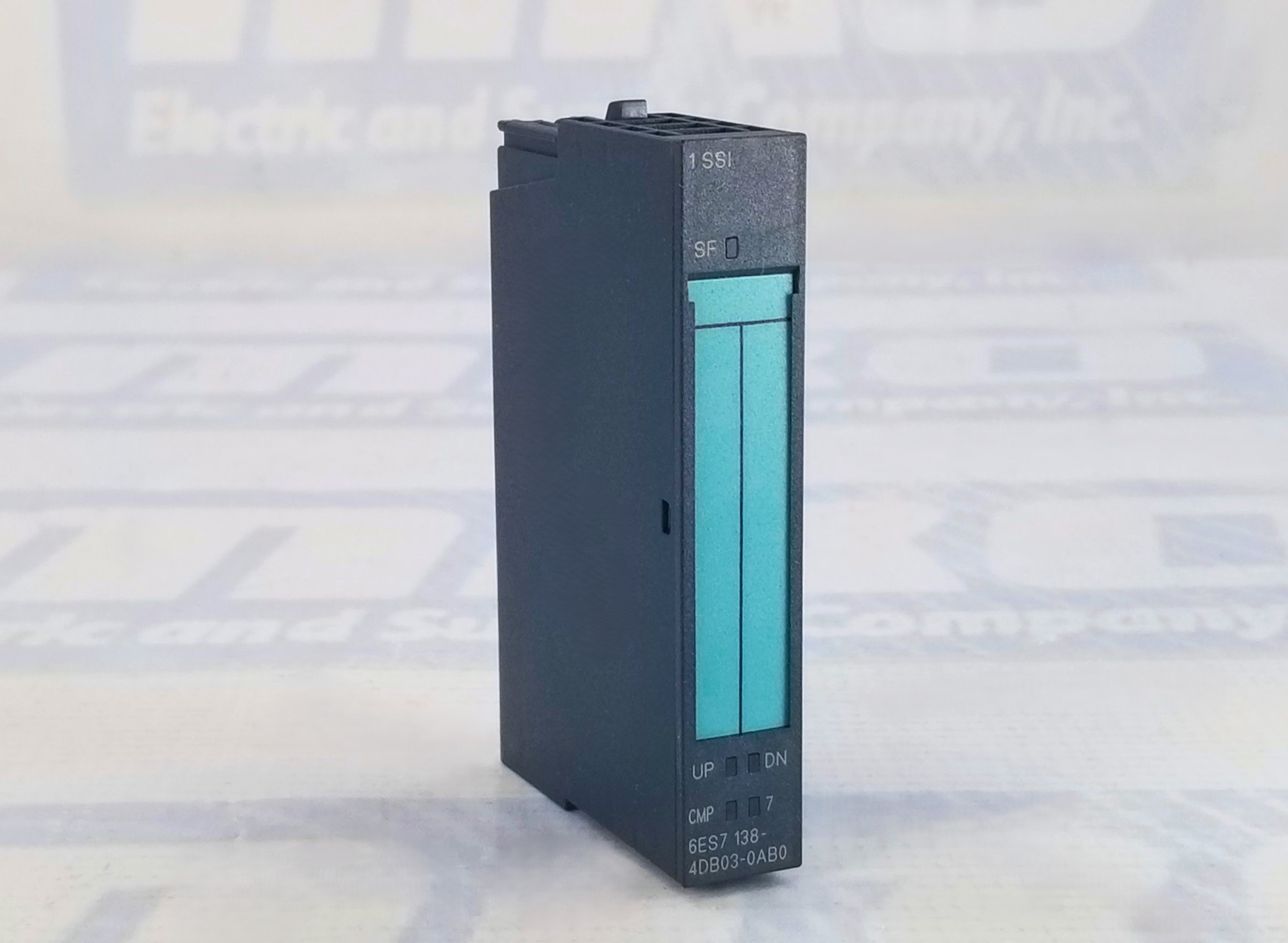

Siemens 6ES7138-4DB03-0AB0 Electronic Module

The Siemens 6ES7138-4DB03-0AB0 is a high-performance electronic module designed as part of the SIMATIC DP system for the ET 200S decentralized peripheral series. Engineered for industrial automation, this module is specifically tailored for applications requiring precise and efficient connection of absolute value encoders via the SSI (Synchronous Serial Interface) protocol. With its compact 15 mm width, the module is space-saving yet powerful, fitting seamlessly into highly dense control cabinets or complex automation environments where real estate is at a premium.

High-Speed Encoder Connectivity

This module supports 1 SSI input and can handle 25-bit data communication at a speed of 1 MHz. Such high-resolution capabilities make the 6ES7138-4DB03-0AB0 ideal for demanding motion control and positioning applications, where precise encoder feedback is critical for system performance. The support for 25-bit absolute encoders ensures that the module can accurately read and relay positional data. It is essential for tasks involving linear or rotary motion tracking in manufacturing, packaging, robotics, and CNC machinery.

Durable, Reliable, and Easy to Integrate

Siemens built the 6ES7138-4DB03-0AB0 with industrial-grade reliability in mind. The unit's rugged design ensures long-term durability in harsh environments. Its seamless integration into the ET 200S system allows for flexible and modular expansion without major rewiring or system overhauls. This minimizes installation time and maximizes compatibility with a broad range of Siemens automation products. It has a 2-year warranty, reflecting Siemens' confidence in the product's quality and long-term performance.

Precision in Industrial Automation

This electronic module delivers dependable performance for operations where pinpoint accuracy and continuous feedback from position encoders are vital. Its synchronous serial interface ensures minimal latency and high data integrity. As industries continue to push the boundaries of automation and smart manufacturing, modules like the 6ES7138-4DB03-0AB0 remain at the core of efficient and intelligent system design. Whether part of a new installation or a retrofit upgrade, this module is pivotal in modern industrial communication systems.

Frequently Asked Questions (FAQ)

What does the Siemens 6ES7138-4DB03-0AB0 module do?

This module connects absolute value encoders to an ET 200S distributed I/O system using an SSI (Synchronous Serial Interface), providing high-resolution position feedback.

Is this module compatible with all encoder types?

No, it is specifically designed for absolute encoders that use the SSI protocol and support up to 25-bit resolution.

Can I use this module in a high-vibration environment?

Yes, the module is built to meet industrial durability standards, including environments with vibration, provided proper installation and mounting are observed.

How wide is the 6ES7138-4DB03-0AB0?

Its very slim design—only 15 mm in width—makes it ideal for compact control panels and space-constrained systems.

What speed does the SSI interface operate at?

The module communicates at a speed of 1 MHz, supporting fast data exchange for time-critical applications.

Is the installation process complex?

Installation is straightforward for experienced technicians familiar with ET 200S systems. The module plugs into the existing ET 200S rack and is configured through the Siemens TIA Portal.

Does this module require external power?

Power is supplied through the ET 200S system interface, so no separate power connection is typically required.

What industries typically use this module?

It is widely used in manufacturing, robotics, packaging, CNC machining, and any industry that requires high-precision motion control.

How long is the warranty on this part?

The module comes with a 2-year warranty from Siemens, ensuring reliability and support.

Is this module still in production or obsolete?

As of the latest available information, the 6ES7138-4DB03-0AB0 is an active product and continues to be supported by Siemens, though availability should always be confirmed with the supplier.
