BASIC MODULE, SIMATIC DP, 8 DIGITAL INPUTS, 8 DIGITAL OUTPUTS, 2 AMP, 24 VDC, M12 CONNECTION, DUPLICATE ASSIGNMENT, IP65/67
Available
Free Shipping
2 Year warranty
| Part Number | 6ES7143-3BH00-0XA0 |
| Manufacturer | Siemens |
| Type | I/O Modules |
| Model # | 6ES71433BH000XA0 |
| Warranty | 2 Year |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6ES7143-3BH00-0XA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7143-3BH00-0XA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6ES7143-3BH00-0XA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6ES7143-3BH00-0XA0 for credit when ordering from MRO Electric

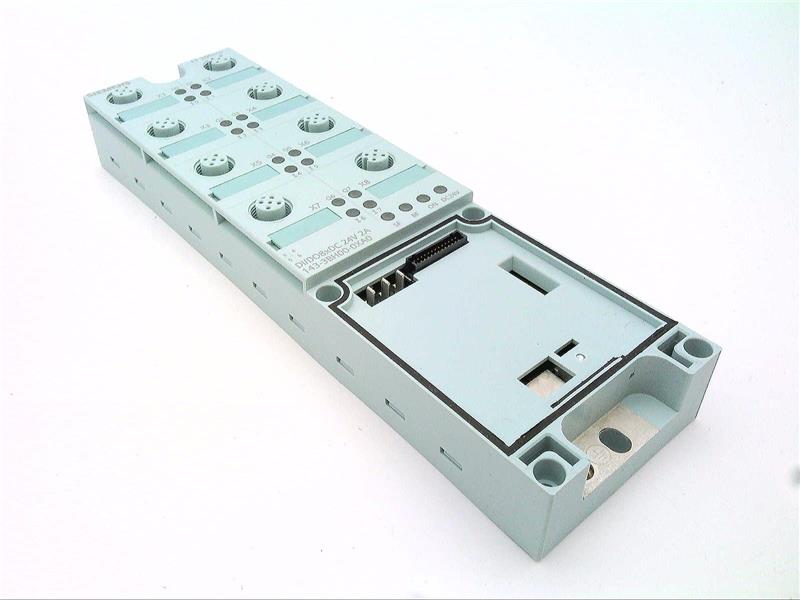

The Siemens 6ES7143-3BH00-0XA0 is a rugged, high-performance basic module from the SIMATIC Distributed Peripherals (DP) family, designed for decentralized automation applications. This compact yet powerful unit provides eight digital inputs and eight digital outputs, each supporting 24 VDC operation and rated for up to 2 amps. Engineered for direct field-level installation, the module features M12 industrial-grade connectors and meets IP65/IP67 protection standards, making it ideal for use in harsh environments without requiring protective enclosures. The 6ES7143-3BH00-0XA0 is a reliable solution for machine-level control and distributed I/O tasks in manufacturing, material handling, automotive, and other industries with demanding environmental conditions.
Built for field installation, the module is designed to streamline control architecture by decentralizing I/O from the main control panel. Integrating M12 connections ensures secure and vibration-resistant connectivity for sensors and actuators, improving system reliability and minimizing downtime due to cable faults or disconnections. With eight inputs and eight outputs combined in a single device, this module offers significant space savings while maintaining high functionality. The 2-amp output capacity per channel supports powerful actuators and solenoids, allowing direct device operation without needing relays or external power amplifiers.
One key feature of the 6ES7143-3BH00-0XA0 is its duplicate assignment functionality, which allows for redundancy or parallel operations, enhancing system flexibility and fail-safe design options. Integrated diagnostics simplify troubleshooting by providing real-time feedback on the status of I/O channels, helping reduce maintenance time and improving system uptime. As part of the SIMATIC DP family, this module communicates efficiently with PROFIBUS or PROFINET networks, enabling seamless integration with Siemens S7 controllers and TIA Portal engineering software. The module is ideal for systems where distributed intelligence, rugged construction, and high reliability are non-negotiable.
The Siemens 6ES7143-3BH00-0XA0 is available immediately from MRO Electric and Supply, with fast, free shipping and a 2-year warranty. Backed by Siemens' engineering excellence and MRO Electric's trusted service, customers expect quick delivery, product integrity, and expert technical support. Whether adding to an existing SIMATIC system or building a decentralized control solution from the ground up, this module offers the durability, scalability, and performance needed for industrial success.
What type of inputs and outputs does this module provide?
It offers eight digital inputs and eight digital outputs, operating at 24 VDC with up to 2 amps per output channel.
What is the connection type used on the module?
It features industrial M12 connectors, ensuring secure and reliable connections in rugged environments.
Can this module be used in outdoor or harsh environments?
Yes, it meets IP65/IP67 standards, making it resistant to dust, water jets, and immersion—ideal for field-level installation.
Is the module compatible with Siemens S7 controllers?
Absolutely. It integrates seamlessly with Siemens S7 PLCs and is fully supported within the TIA Portal engineering environment.
What is duplicate assignment, and why is it useful?
Duplicate assignment allows for redundant or shared channel configurations, enhancing system flexibility and reliability in critical operations.
Does the module support diagnostics?
It provides integrated diagnostics to help identify input/output errors, power issues, or device faults in real time.
Is it suitable for applications requiring high output current?
Yes, each output supports up to 2 amps, directly driving actuators, solenoids, or other devices without additional relays.
How is the module mounted?
It is designed for direct field installation, typically mounted on a machine frame or within a fieldbox, eliminating the need for centralized panels.
Is the product available now?
Yes, MRO Electric has the 6ES7143-3BH00-0XA0 in stock and ready for immediate shipment with free delivery.
What warranty is included with the purchase?
This module is covered by a 2-year warranty from MRO Electric, ensuring long-term performance and customer satisfaction.
