6ES7214-1BD22-0XB0

2-year Warranty

Same Day Shipping

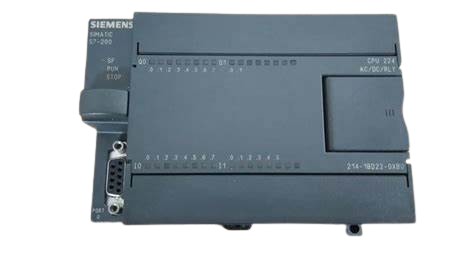

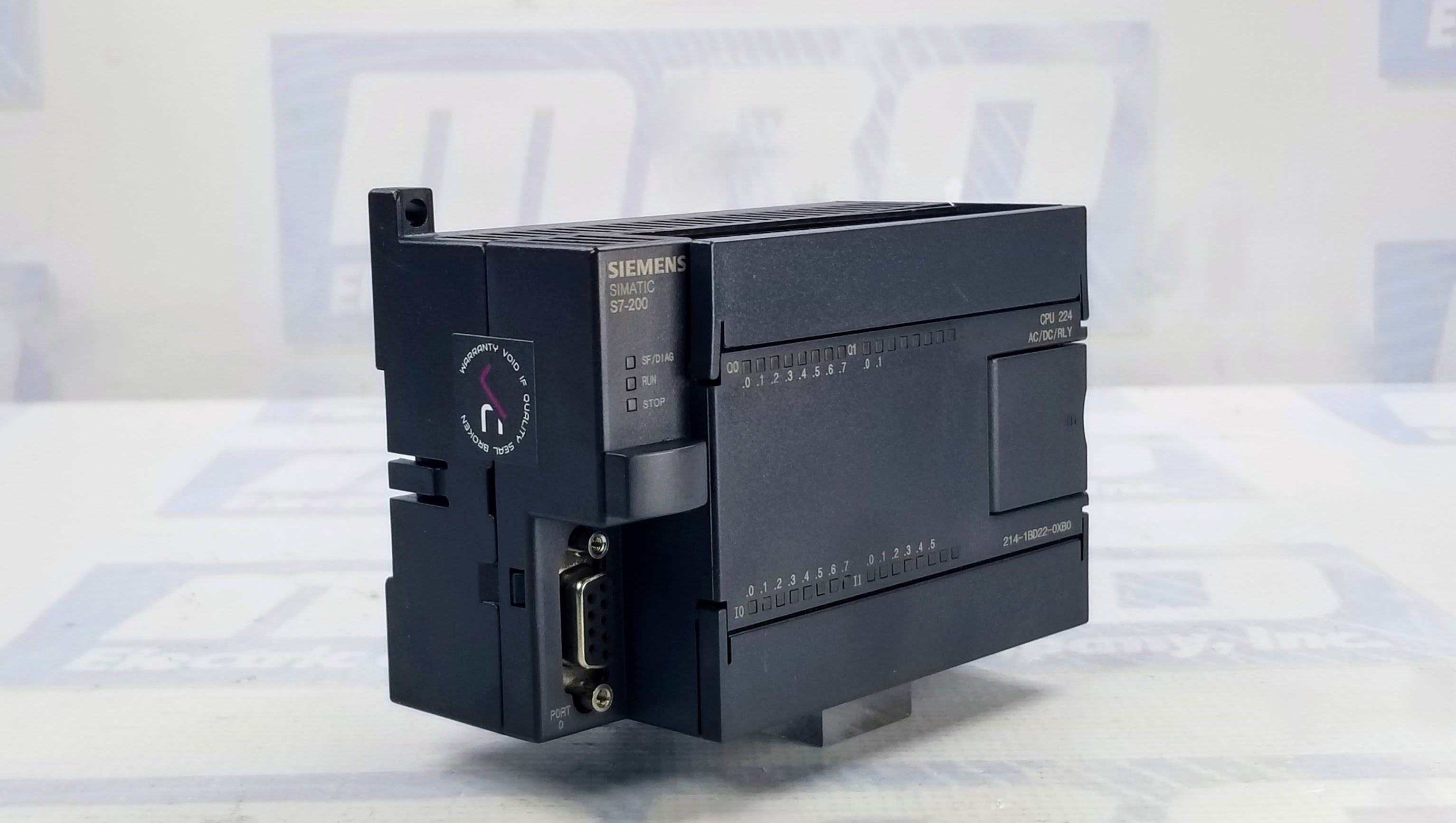

Siemens 6ES7214-1BD22-0XB0

COMPACT UNIT, AC POWER SUPPLY, 14 DI/10 DO, 120/230 VAC RATED, 5/24/30 VDC LOAD L+, 5/100/250 VAC LOAD L1, 47/63 HZ, 20 AMP AT 264 V, RELAY 8 KB CODE, 5 KB DATA, 10 WATT POWER LOSS, SCREW TERMINALS, PROFIBUS DP EXTENDABLE

4.5/5
1 rating

Available


Free Shipping

2 Year warranty

Part Number6ES7214-1BD22-0XB0
ManufacturerSiemens
TypeCPUs
Model #6ES72141BD220XB0
Warranty2 Year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6ES7214-1BD22-0XB0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7214-1BD22-0XB0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6ES7214-1BD22-0XB0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 2 hours and 55 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6ES7214-1BD22-0XB0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6ES7214-1BD22-0XB0 Overview

Compact Power and Control: Siemens 6ES7214-1BD22-0XB0

The Siemens 6ES7214-1BD22-0XB0 is a powerful and versatile compact unit from the Siemens SIMATIC S7-200 series, designed to bring robust automation control to small- to mid-scale industrial applications. This unit features a built-in AC power supply, 14 digital inputs, and 10 digital outputs, making it ideal for standalone control tasks or as part of a larger automation solution. Its compact form factor and flexible voltage support enable it to easily integrate into panels and control systems with minimal space requirements and maximum functionality.

Flexible Voltage and Load Handling

Designed to handle a wide range of voltage conditions, this compact unit supports both 120/230 VAC rated input power and offers diverse output options. It can manage DC loads at 5, 24, and 30 VDC via the L+ terminal and supports AC loads at 5, 100, and 250 VAC through the L1 terminal. Operating within a frequency range of 47–63 Hz and capable of handling up to 20 amps at 264 V, this unit provides the reliability and electrical robustness needed for demanding industrial environments. It delivers consistent performance across varied applications, from machine control to facility automation.

Smart Memory and Communication Capabilities

Equipped with 8 KB of code memory and 5 KB of data memory, the Siemens 6ES7214-1BD22-0XB0 allows for flexible program development and efficient data storage. This onboard memory capacity ensures that users can deploy advanced logic without sacrificing performance. Additionally, the unit is PROFIBUS DP extendable, allowing it to be integrated into broader networked automation systems. This feature enhances device communication, enabling real-time control, faster response times, and more streamlined data management across the plant floor.

Durability and Connection Simplicity

Built with screw terminal connections, the 6ES7214-1BD22-0XB0 offers secure and reliable wiring, helping to reduce connection errors and improve long-term durability in the field. Its robust relay output design supports consistent switching operations under varied electrical loads. With a power loss rating of only 10 watts, the unit is energy-efficient, minimizing heat buildup and reducing overall energy consumption in control cabinets.

Fast Availability and Trusted Support

The Siemens 6ES7214-1BD22-0XB0 is available immediately from MRO Electric and Supply, backed by a full 2-year warranty and free shipping. Whether you need to replace a failed unit or expand your current system, MRO Electric provides fast turnaround and dependable customer service. With this reliable Siemens controller, you can maintain productivity, reduce system downtime, and confidently build out efficient automation projects.

Frequently Asked Questions

What type of power input does this unit support?

It supports AC input at 120/230 VAC and operates across a 47–63 Hz frequency range.

How many digital inputs and outputs are available?

The unit includes 14 digital inputs and 10 digital outputs.

Is this module suitable for both DC and AC load applications?

It can handle 5/24/30 VDC loads on the L+ line and 5/100/250 VAC loads on the L1 line.

What is the total current capacity?

It can handle up to 20 amps at 264 V, making it capable of managing substantial industrial loads.

Can the unit be connected to a PROFIBUS DP network?

Yes, it is PROFIBUS DP extendable for enhanced network integration.

What are the onboard memory specifications?

It includes 8 KB for program code and 5 KB for data storage.

How does it connect to field wiring?

The unit uses screw terminals for secure and reliable electrical connections.

What series does this product belong to?

It is part of the Siemens SIMATIC S7-200 series.

Is the Siemens 6ES7214-1BD22-0XB0 available for immediate purchase?

Yes, it is in stock and available now from MRO Electric and Supply.

Does this product include a warranty and shipping?

Yes, it comes with a 2-year warranty and free shipping from MRO Electric.
