Siemens 6ES7214-1HG40-0XB0

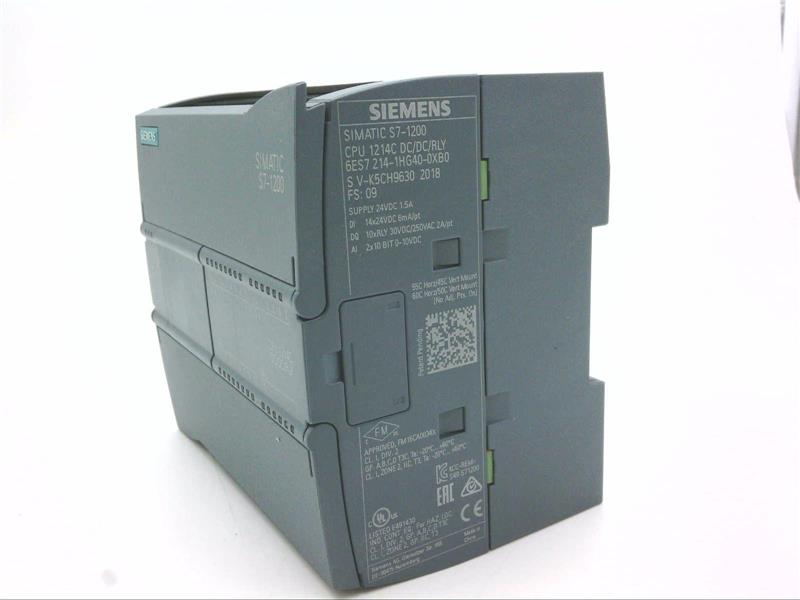

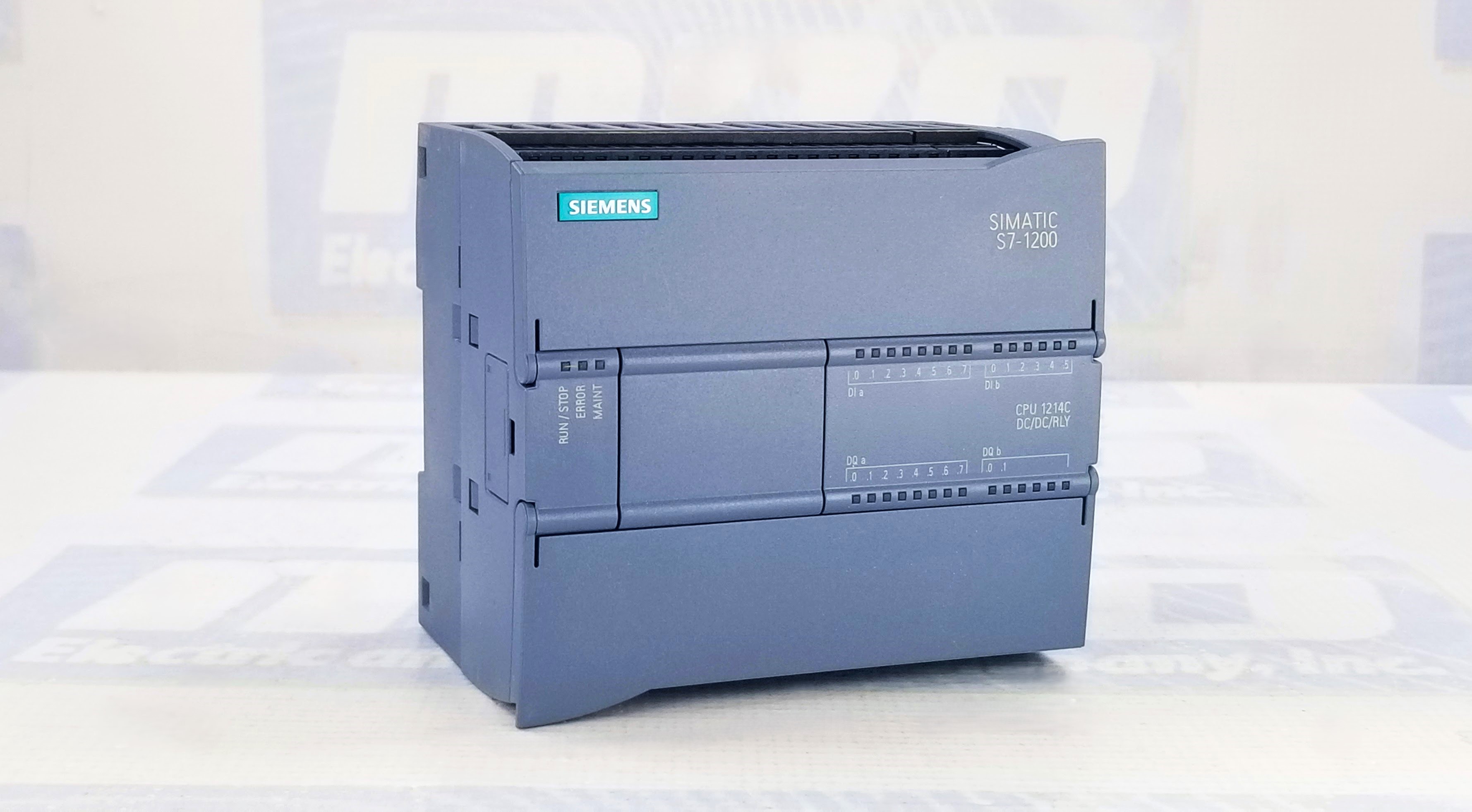

Siemens 6ES7214-1HG40-0XB0 SIMATIC S7-1200 Compact CPU

The Siemens 6ES7214-1HG40-0XB0 is a powerful, compact controller from the SIMATIC S7-1200 series, designed to deliver reliable, scalable automation solutions in various industrial applications. The CPU 1214C variant provides integrated digital and analog I/O, robust communication capabilities, and flexible power input in a compact form factor. This model features a DC power supply with DC input and relay output configuration, making it suitable for environments requiring a mix of control signal types and load switching. The module is engineered to streamline machine-level automation while supporting advanced features like data logging, high-speed counters, and PID control.

Built-In I/O for Streamlined Integration

The CPU 1214C includes a rich set of onboard I/O that eliminates the need for multiple external modules in many applications. It features 14 digital inputs (DI) operating at 24V DC, ideal for reading signals from sensors, switches, and buttons. On the output side, it includes 10 relay-based digital outputs (DO), each rated at 2A, which provide robust and flexible switching for contactors, indicators, and other relay-driven devices. Additionally, two analog inputs (AI) with a range of 0–10V DC allow integration with analog sensors and instrumentation for temperature, pressure, or flow monitoring.

Reliable Power and Memory Performance

Powered by a 20.4 to 28.8V DC supply, the 6ES7214-1HG40-0XB0 ensures stable and consistent operation across various industrial voltages. With 150 KB of program/data memory, the controller easily supports complex logic, data storage, and communication processes. Its memory capacity is ideal for compact to mid-size automation tasks, allowing for efficient control logic, alarms, and data logging functions. Integrated high-speed counters and pulse-width modulation expand the unit's versatility in motion control and fast signal processing.

Part of the Modular and Scalable S7-1200 Family

This CPU is a core component of the S7-1200 family, which is known for its flexibility and modular design. The controller can be expanded with a wide range of Siemens signal modules, communication modules, and signal boards, offering a future-proof platform for growing automation needs. Users can easily add Ethernet, PROFINET, serial communications, and additional I/O modules without altering the base controller. Programming is done via the intuitive Siemens TIA (Totally Integrated Automation) Portal, ensuring fast commissioning, diagnostics, and maintenance.

Value-Added Service from MRO Electric and Supply

MRO Electric and Supply enhances your purchase with a 2-year warranty and free shipping, ensuring long-term reliability and reduced costs. Their reputation for fast delivery and excellent customer support means you'll get your automation system back up and running quickly. This combination of Siemens engineering and MRO Electric's service guarantees performance and peace of mind.

Frequently Asked Questions (FAQ)

What is the Siemens 6ES7214-1HG40-0XB0 used for?

It's a compact programmable logic controller (PLC) used to automate machinery and processes in various industrial applications.

What type of power supply does this module require?

It operates on a DC voltage supply between 20.4 and 28.8V DC.

How many inputs and outputs are included?

The CPU has 14 digital inputs (24V DC), 10 digital relay outputs (2A), and two analog inputs (0–10V DC).

What kind of outputs does it provide?

It features relay-type digital outputs suitable for controlling devices requiring physical contact switching.

Is the module expandable?

Additional I/O modules, communication modules, and signal boards from the S7-1200 product line can expand it.

What is the memory capacity of this controller?

It offers 150 KB of program and data memory, suitable for various automation tasks.

Which software is used to program this CPU?

Siemens TIA Portal is used for programming, configuration, and diagnostics.

Does the CPU support analog signal processing?

It includes two analog inputs supporting 0–10V DC signals.

What warranty does MRO Electric provide?

MRO Electric offers a 2-year warranty on this product.

Is free shipping included?

Yes, all orders of this module through MRO Electric come with free shipping.
