Siemens 6ES7515-2AM00-0AB0

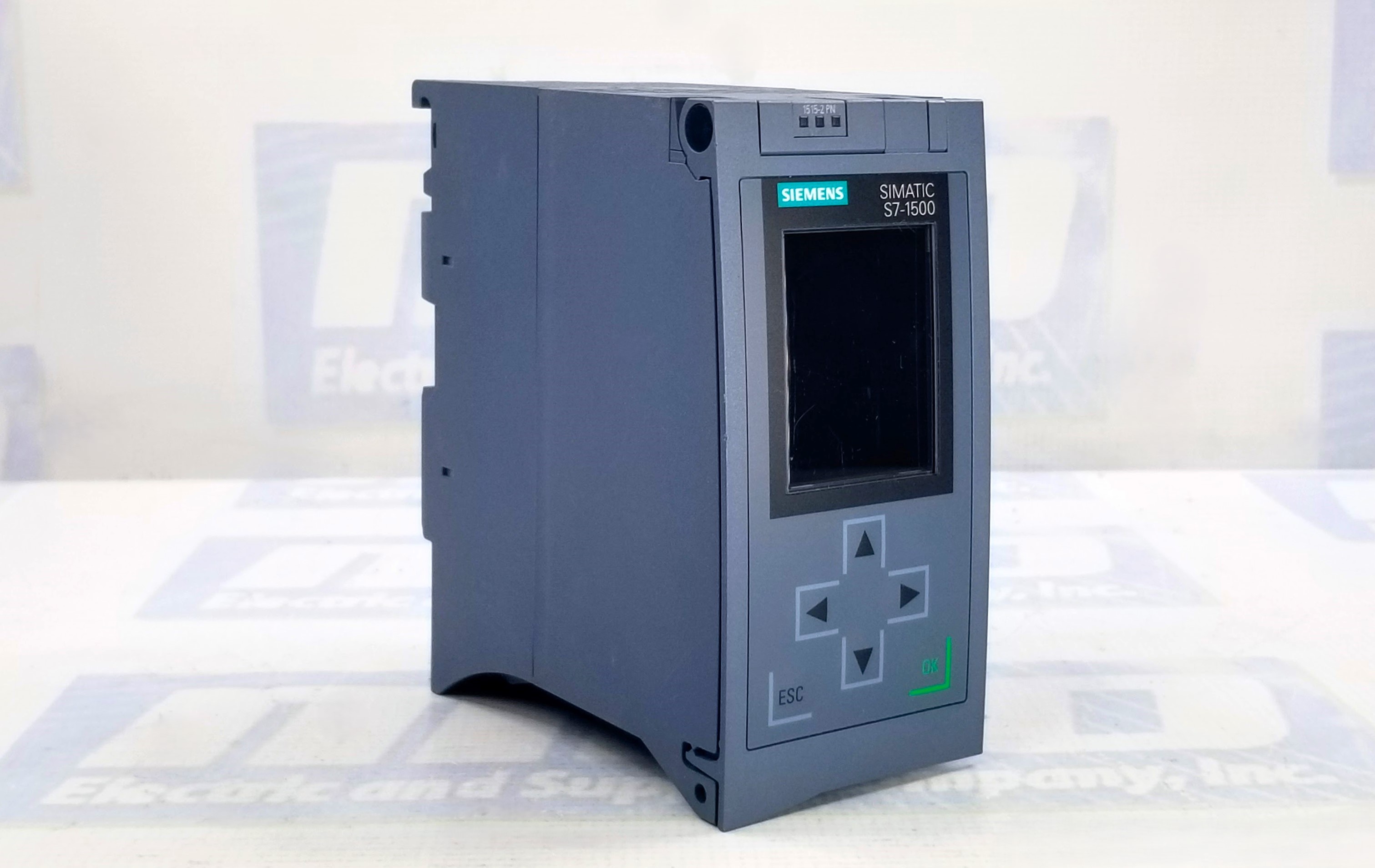

Siemens 6ES7515-2AM00-0AB0 – Central Processing Unit for S7-1500

The Siemens 6ES7515-2AM00-0AB0 is a high-performance Central Processing Unit (CPU) from the SIMATIC S7-1500 series, designed to meet the rigorous demands of modern industrial automation. This advanced CPU features 500 KB of memory allocated for program storage and 3 MB dedicated to data storage, offering substantial space for handling complex logic operations and large-scale automation projects. As part of the next-generation S7-1500 platform, this CPU provides superior execution speed, integrated communication capabilities, and comprehensive diagnostics to enhance productivity and reduce system downtime.

Unmatched Speed and Processing Power

With a bit performance of just 30 nanoseconds, the 6ES7515-2AM00-0AB0 delivers swift instruction execution, making it ideal for high-speed control tasks, synchronized motion applications, and precise process control. This high-speed performance allows for shorter cycle times and more responsive control, allowing users to fine-tune production processes and increase overall system efficiency. It is well-suited for automotive, packaging, and high-throughput manufacturing industries where speed and precision are critical.

Integrated PROFINET IRT and Ethernet Communication

The CPU features an integrated PROFINET interface with an IRT (Isochronous Real Time) 2-port switch, enabling deterministic real-time communication and seamless networking within automation environments. The inclusion of two Ethernet ports simplifies the creation of line and ring topologies, enhancing network reliability and supporting redundancy. This robust communication backbone ensures the CPU can act as a central hub in sophisticated, distributed control systems, efficiently communicating with HMIs, IO devices, and other controllers.

Modern Design and Scalability

The 6ES7515-2AM00-0AB0 is designed to be the core of scalable and modular automation architectures. As part of the S7-1500 system, it offers compatibility with a wide range of I/O modules, communication processors, and signal modules. This scalability supports system growth and upgrades without complete hardware overhauls. Additionally, the CPU features an integrated display for diagnostics, commissioning, and basic configuration, offering convenience and insight directly from the control panel.

Memory Card Requirement and Advanced Features

The CPU requires a SIMATIC memory card, which is the permanent storage for program and firmware data. This design separates volatile memory from operational logic, increasing flexibility for system backups and rapid recovery during maintenance. The CPU also includes extensive built-in diagnostics, secure communication protocols, and support for safety-integrated automation, ensuring compliance with modern safety and cybersecurity standards.

Frequently Asked Questions (FAQ)

What type of memory does this CPU provide?

It includes 500 KB for programs and 3 MB for data, offering ample capacity for advanced control applications.

Is a SIMATIC memory card required to operate?

The CPU cannot function without an appropriate SIMATIC memory card installed.

What is the significance of the 30 ns bit performance?

It indicates ultra-fast instruction execution, ideal for high-speed and time-critical control tasks.

Does this CPU support PROFINET communication?

It has a built-in PROFINET IRT interface with a 2-port switch for real-time Ethernet networking.

Can this be used in redundant or ring topologies?

The dual Ethernet ports support line and ring topologies, enhancing system redundancy and network reliability.

Is the 6ES7515-2AM00-0AB0 compatible with all S7-1500 modules?

Yes, it is part of the S7-1500 family and is fully compatible with other modules in the series.

Can I access diagnostic information directly from the CPU?

The integrated front display provides system diagnostics, status messages, and configuration tools.

What are common industries that use this CPU?

It is widely used in automotive manufacturing, packaging, food processing, and other high-speed industrial automation sectors.

Does it support secure communication?

The CPU includes built-in security features such as encrypted communication and user access control.

Is technical support available with the purchase?

When purchased from authorized distributors like MRO Electric, technical support, a 2-year warranty, and free shipping are typically included.
