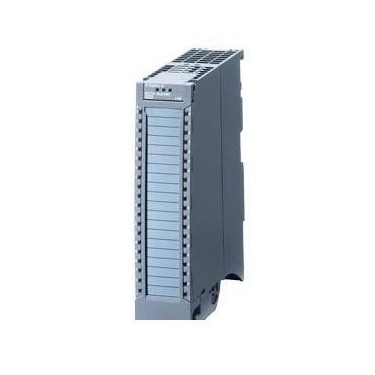

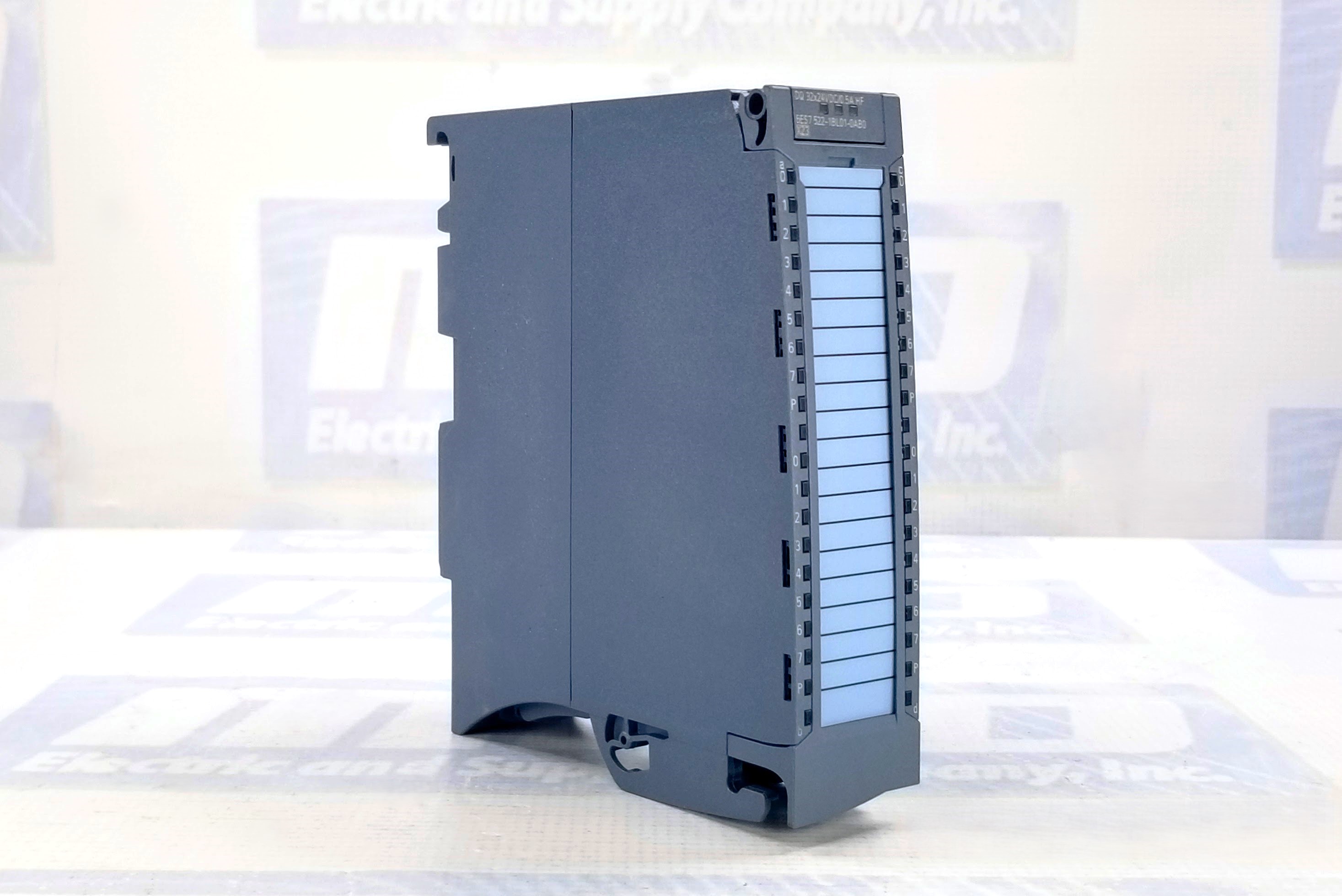

DIGITAL OUTPUT MODULE, SIMATIC S7-1500, DQ 32X24 V DC/0.5A, HF, 32 CHANNELS IN GROUPS OF 8, 4 A PER GROUP, SINGLE-CHANNEL DIAGNOSTICS, SUBSTITUTE VALUE, FRONT CONNECTOR
Available
Free Shipping
2 Year warranty
| Part Number | 6ES7522-1BL01-0AB0 |
| Manufacturer | Siemens |
| Type | I/O Modules |
| Model # | 6ES75221BL010AB0 |
| Warranty | 2 Year |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6ES7522-1BL01-0AB0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7522-1BL01-0AB0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6ES7522-1BL01-0AB0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6ES7522-1BL01-0AB0 for credit when ordering from MRO Electric
The Siemens 6ES7522-1BL01-0AB0 is a powerful and flexible digital output module engineered for the SIMATIC S7-1500 automation platform. This module, designed with 32 digital outputs at 24 VDC and 0.5 A per channel, offers high-feature (HF) performance tailored for advanced control applications across industries. Whether operating complex machinery, assembly lines, or automated production systems, this output module gives you precise, reliable control over actuators and digital devices. Its innovative diagnostics, substitute value functionality, and compact front connection make it a standout component for any high-end automation architecture.
This HF digital output module is divided into groups of eight channels, allowing flexible and organized wiring for your control logic. Each group can deliver up to 4 A total current, which ensures ample capacity for simultaneous operations across outputs. With single-channel diagnostics, you'll know instantly when a channel experiences issues such as overload or wire breakage, making troubleshooting quicker and more effective. The module's ability to provide substitute values during faults adds another layer of operational continuity, ensuring your system remains stable and functional despite minor failures.
Designed for seamless integration into the S7-1500 platform, the 6ES7522-1BL01-0AB0 uses a front connector interface, simplifying installation and maintenance while preserving valuable panel space. Its high-speed switching capability ensures real-time response in dynamic environments, such as packaging, material handling, or process automation. Whether you're operating solenoids, relays, or lamps, the rapid signal transmission and low response time enhance the reliability and responsiveness of your entire system. Siemens has engineered this module not just for function, but for performance under pressure.
Durability and reliability are cornerstones of the Siemens brand, and this module is no exception. It delivers long-term dependability and is built to operate in industrial environments with electrical noise and vibration. Backed by MRO Electric and Supply, this product includes a 2-year warranty and is ready to ship immediately with free delivery across the continental United States. MRO's knowledgeable support staff is also available to help with configuration, integration, or troubleshooting needs, ensuring you get the most out of your automation investment. With MRO, you're getting more than a part—you're getting the service and reliability that keeps your operation running strong.
What is the output rating per channel?
Each of the 32 digital output channels provides 24 VDC at 0.5 A.
How is the module organized internally?
It is divided into four groups of 8 channels, each capable of handling up to 4 A.
What does "HF" mean in this module?
"HF" stands for High Feature, indicating advanced diagnostics, substitute values, and fast switching.
Does it support single-channel diagnostics?
Yes, each output channel has individual diagnostics to detect faults like overloads or wire breaks.
What is the substitute value function?
Substitute values allow the module to maintain a defined output state during channel faults.
What type of connector does it use?
The module uses a front connector interface, the standard for the S7-1500 platform.
Is it compatible with other S7-1500 modules?
It integrates seamlessly with the SIMATIC S7-1500 series for full platform compatibility.
What kind of outputs can I control with this module?
It's ideal for digital actuators such as solenoids, contactors, relays, and indicator lights.
Is this module DIN-rail mountable?
Yes, it mounts easily into S7-1500 DIN-rail racks for efficient panel installation.
How fast can I receive this item?
MRO Electric offers same-day shipping and free delivery within the continental U.S.
