6ES7515-2AM01-0AB0

2-year Warranty

Same Day Shipping

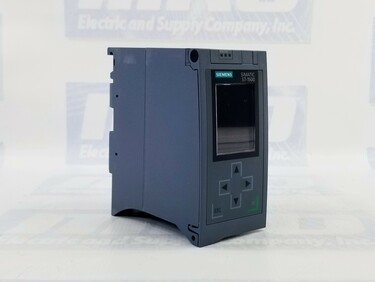

Siemens 6ES7515-2AM01-0AB0

SIMATIC S7-1500 CPU 1515-2

1 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6ES7515-2AM01-0AB0
ManufacturerSiemens
TypeCPUs
Model #6ES75152AM010AB0
Warranty2 Year
RangeSIMATIC S7-1500
CategoryCPU 1515-2 PN
Memory500 KB for Program, 3 MB for data
InterfacePROFINET IRT with 2-port switch, PROFINET RT
Performance30 ns bit
Memory card req'dSIMATIC
HW functional statusFS03
Firmware versionV2.8
Screen diagonal6.1 cm
Control keys6
Motor select switch1
Supply voltage24 V DC
Input current0.8 A
Power Infeed12 W
Power loss6.3 W
CPU-blocks6 000; Blocks (OB, FB, FC, DB) and UDTs
ProtocolsIP protocol IPv4, PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, Web server, Media redundancy
Width 70 mm
Height147 mm
Depth 129 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6ES7515-2AM01-0AB0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7515-2AM01-0AB0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6ES7515-2AM01-0AB0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 5 hours and 25 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6ES7515-2AM01-0AB0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6ES7515-2AM01-0AB0 Overview

Siemens 6ES7515-2AM01-0AB0

Overview:

The Siemens 6ES7515-2AM01-0AB0, part of the SIMATIC S7-1500 series, emerges as a potent Central Processing Unit (CPU) tailored for industrial automation. With Hardware Functional Status (FS03) and Firmware Version V2.8, this CPU is engineered to deliver exceptional performance and versatility.

Performance and Memory:

Equipped with a work memory of 500 KB for Programs and 3 MB for Data, the CPU achieves a remarkable 30 ns bit performance, crucial for real-time industrial applications. It mandates a SIMATIC Memory Card for efficient memory management.

Power Supply and Consumption:

Operating on a 24 V DC input with reverse polarity protection, the CPU demonstrates a rated current consumption of 0.8 A and a maximum inrush current of 2.4 A. Its power loss is maintained at a typical 6.3 W, ensuring energy efficiency in diverse operational scenarios.

Memory Management:

With provisions for a SIMATIC Memory Card and integrated work memory capacities, the CPU offers a robust foundation for programming and data storage. The STEP 7 TIA Portal facilitates seamless configuration and integration.

Communication Interfaces:

Featuring two PROFINET interfaces—one with a 2-port switch for IRT and the other for RT—the CPU ensures efficient communication in varied network environments. It supports IP protocol, PROFINET IO Controller/Device, SIMATIC communication, and more.

OPC UA and Further Protocols:

The CPU is equipped with OPC UA functionality, requiring a runtime license. It supports MODBUS TCP, Isochronous Mode, and various other protocols, making it a versatile choice for diverse industrial communication needs.

Diagnostics and Status:

Diagnostic features include LEDs indicating RUN/STOP, ERROR, MAINT, and LINK TX/RX. The diagnostic buffer and trace capabilities enhance troubleshooting and monitoring, contributing to the overall reliability of the system.

Motion Control and Altitude Considerations:

With support for motion control and a maximum altitude during operation of 5,000 meters above sea level, the CPU proves itself as a comprehensive solution for demanding industrial automation systems.

FAQ

Q: What is the significance of the 30 ns bit performance?

A: The 30 ns bit performance ensures rapid and precise execution of instructions, crucial for real-time industrial applications.

Q: Can I expand the memory beyond the integrated capacities?

A: Yes, the CPU supports a SIMATIC Memory Card for additional memory requirements, providing storage flexibility.

Q: How does the CPU handle power fluctuations?

A: The CPU operates on a 24 V DC input with reverse polarity protection, ensuring resilience against power fluctuations and potential damage.

Q: What is the typical power loss of the CPU?

A: The CPU maintains a typical power loss of 6.3 W, contributing to energy efficiency in diverse operational scenarios.

Q: Can the CPU communicate in different network environments?

A: Yes, the CPU features two PROFINET interfaces—one optimized for IRT with a 2-port switch and the other for RT—ensuring efficient communication in varied network setups.

Q: Which protocols are supported by the CPU for communication?

A: The CPU supports a range of protocols including IP, PROFINET IO Controller/Device, SIMATIC communication, and more, ensuring compatibility with various industrial communication standards.

Q: How does the CPU facilitate troubleshooting?

A: The CPU comes equipped with LEDs indicating key statuses like RUN/STOP, ERROR, MAINT, and LINK TX/RX, providing visual cues for effective troubleshooting.

Q: Is there a diagnostic buffer for error analysis?

A: Yes, the CPU includes a diagnostic buffer with a capacity of up to 3,200 entries, aiding in detailed error analysis.

Q: How does the CPU support motion control applications?

A: The CPU offers support for motion control, making it suitable for applications involving precise control of motors and other moving components.

Q: Are there any altitude limitations for the CPU?

A: The CPU can operate at altitudes up to 5,000 meters above sea level, providing flexibility for deployment in varied environments.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as FANUC and Yaskawa.
