6SL3055-0AA00-4BA0

2-year Warranty

Same Day Shipping

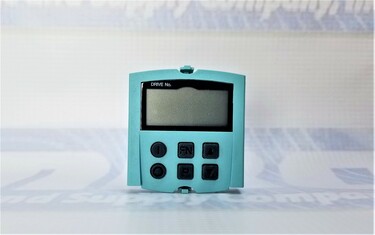

Siemens 6SL3055-0AA00-4BA0

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION: BOP20 Basic Operator Panel
PRODUCT TYPE INFO: SINAMICS


3 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6SL3055-0AA00-4BA0
ManufacturerSiemens
TypeHMIs
Model #6SL30550AA004BA0
Warranty2 Year
Sinamics S120 Basic OP
PanelBOP20
Keys6 Keys
Control UnitsCU305, CU310, CU320

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3055-0AA00-4BA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3055-0AA00-4BA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3055-0AA00-4BA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 7 hours and 22 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3055-0AA00-4BA0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3055-0AA00-4BA0 Overview

Siemens part 6SL30550AA004BA0

The Siemens part 6SL30550AA004BA0 is an electronic component with technical specifications that make it suitable for various applications. This part is designed to be used with a resolver system, providing accurate feedback for motor control. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Function

The electronics power supply of the 6SL30550AA004BA0 operates at a voltage range of 24V DC (with a tolerance of 20.4V to 28.8V DC). The maximum current consumption of the part, without an encoder system, is less than or equal to 0.20A. However, with an encoder system, the current consumption increases to a maximum of 0.35A. The power loss of the part is specified to be less than or equal to 10W.

Features

One of the key features of the 6SL30550AA004BA0 is its ability to work with resolver systems. The transformation ratio of the resolver (ü) is a crucial parameter, and for this part, it is set to 0.5. The excitation voltage on the SMC10 (an associated component) when the transformation ratio is 0.5 is 4.1V RMS. The amplitude monitoring threshold on the secondary tracks of the SMC10 is specified as 1V RMS.

The excitation voltage for the resolver, which cannot be parameterized, is set at 4.1V RMS. The excitation frequency is synchronized to the current controller clock cycle and operates within the range of 5 to 16 kHz.

Connection

The 6SL30550AA004BA0 is equipped with a PE/ground connection that is established at the housing using an M4 screw tightened to 1.8 Nm torque. The maximum length of the encoder cable that can be connected to this part is 130 meters. With a weight of 0.45 kg, this part is compact and lightweight.

Protection

Regarding protection, the 6SL30550AA004BA0 has an IP20 degree of protection or IPXXB, providing sufficient protection against solid objects and the ingress of fingers. It is important to ensure the appropriate level of protection is maintained during installation and operation.

Additionally, the maximum frequency that can be evaluated (speed) by the resolver system connected to the 6SL30550AA004BA0 depends on the number of poles and pole pairs. For a 2-pole motor, the maximum speed that can be evaluated is 120,000 rpm when the resolver operates at 8 kHz/125 μsec, 60,000 rpm at 4 kHz/250 μsec, and 30,000 rpm at 2 kHz/500 μsec. The maximum speed decreases as the number of poles and pole pairs increases.

FAQ: Siemens 6SL3055-0AA00-4BA0 HMI System

Q: What is the Sinamics S120 Basic OP?

A: The Sinamics S120 Basic OP is an operator panel designed by Siemens to provide intuitive control and monitoring functionalities for the Sinamics S120 drive system, enhancing operational efficiency and ease of use.

Q: What is the Panel BOP20 included in the Siemens 6SL3055-0AA00-4BA0 HMI system?

A: The Panel BOP20 is a Basic Operator Panel included in the Siemens 6SL3055-0AA00-4BA0 HMI system, featuring six keys for navigation and control. It serves as a user-friendly interface for interacting with the drive system.

Q: How many keys does the Panel BOP20 of the Siemens 6SL3055-0AA00-4BA0 HMI system have?

A: The Panel BOP20 of the Siemens 6SL3055-0AA00-4BA0 HMI system is equipped with six keys, providing convenient navigation and control options for operators.

Q: What are the compatible control units for the Siemens 6SL3055-0AA00-4BA0 HMI system?

A: The Siemens 6SL3055-0AA00-4BA0 HMI system is compatible with a range of control units, including CU305, CU310, and CU320. These control units facilitate seamless integration and communication with the Sinamics S120 drive system for comprehensive control and monitoring capabilities.
