Siemens 6SL3120-1TE31-3AA3

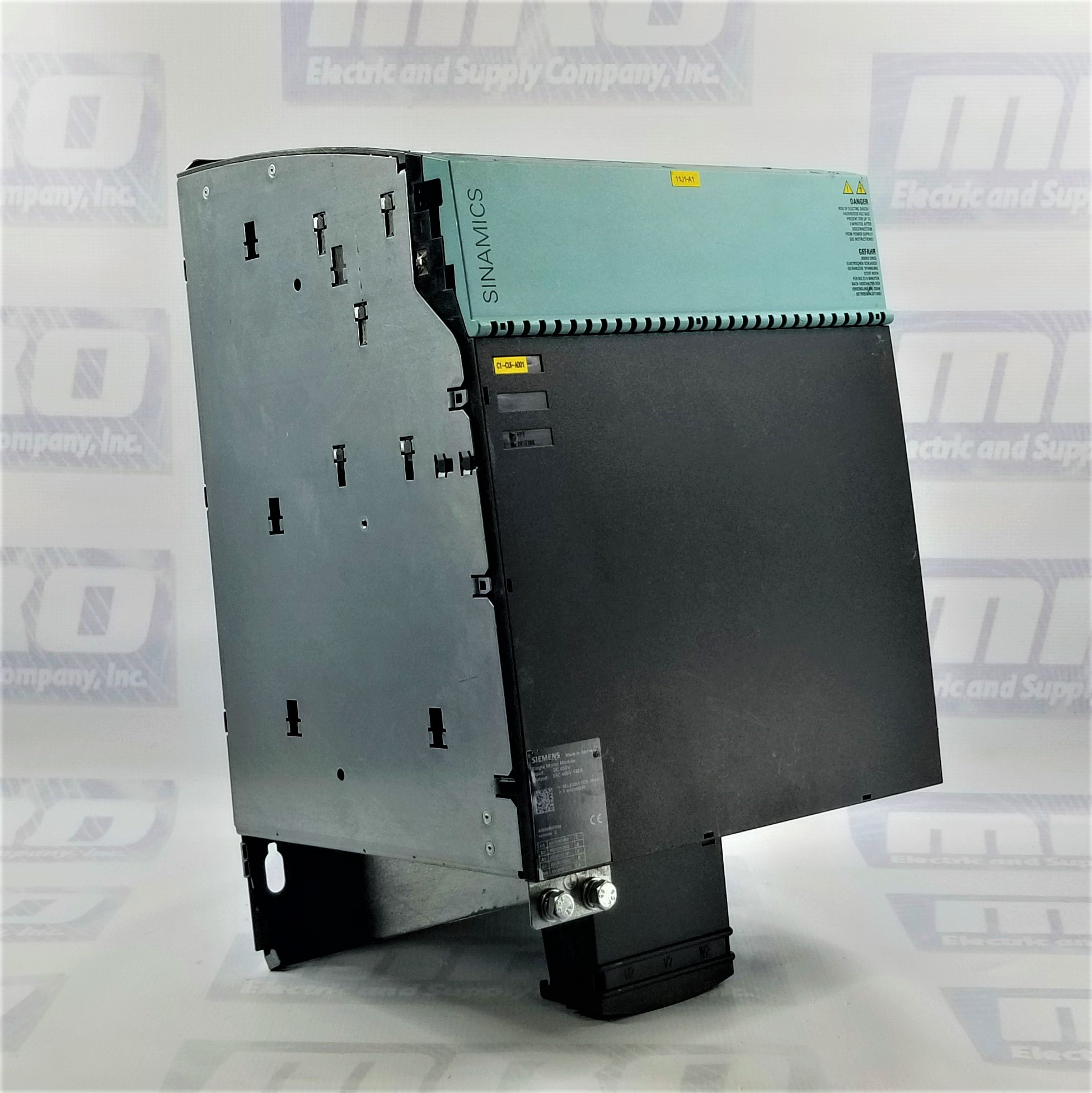

The Siemens 6SL3120-1TE31-3AA3 is an S120 drive in the line of SINAMIC drives manufactured for machine and plant engineering applications. It is a booksize unit that weighs 46.30 lbs. The SINAMIC AC drive 6SL3120-1TE31-3AA3 is a modular unit designed for a wide range of industrial applications for individual axes. The DC link voltage for the 6SL3120-1TE31-3AA3 is DC 510 ... 720 V and has a power supply rating of DC 24 V -15 % / +20 %. The max current demand maximum is 1.50 A. The Siemens drive module 6SL3120-1TE31-3AA3 has internal air cooling with a cooling air requirement of 0.144 m³/s.  The ambient temperature during operation is 0 ... 40 °C (32 ... 104 °F). These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Features of the Siemens S120

The Siemens 6SL3120-1TE31-3AA3 output current rated value In is 132.0 A.  and a baseload current In of 105.0 A. For S6 duty (40%) IS6 the rated data is 150.0 A. The I max is 210.0 A.

The current-carrying capacity for the Siemens S120 drive DC link busbars 3) is 200 A, and the 24 V busbars 4) is 20 A.  The Output frequency for servo control 5) is 0 ... 650 Hz. The Output frequency for V/f control 6) is 0 ... 600 Hz. The Output frequency for vector control 7) 0 ... 300 Hz. The rated pulse frequency is 4 kHz.

The dimensions for the Siemens S120 drive 6SL3120-1TE31-3AA3 are as follows.  The width is 11.81 in, height is 14.96 in, and the depth is 10.63 in.

Connection for the Siemens 6SL3120-1TE31-3AA3

The PE connection for the Siemens S120 drive is an M8 screw. On the motor end, version M8bolt (X1), conductor cross-section 3 ... 120 mm² (14 ... -3 AWG).  The maximum motor cable length shielded is 328 feet and unshielded 492 feet.

The S120 drive 6SL3120-1TE31-3AA3 is in compliance with the CE cULus standards. It has implemented SIL 2 acc. to IEC 61508, PL d acc. to EN ISO 13849-1, Category 3 acc. to EN ISO 13849-1 safety standards integrated.

The sound pressure level (1m) specification is 73.0 dB, with the typical power loss (max) is 1.3 kW / 1.3 kW.

The Siemens 6SL3120-1TE31-3AA3 carries IP protection of IP20.

The SINAMICS modular system focuses on complex drive tasks in a broad array of industrial applications. The applications include machine concepts that have a central drive, such as printing and packaging applications. It includes modular machine groups where machine units are broken down into single axes.  The S120 SINAMICS drive works with single-motor drives that deliver high accuracy, stability, and sound running conditions in plant machinery. This unit works with single-motor drives used for transport applications that include raising and lowering abilities. It works with drives that do not have regenerative feedback into the line supply including wire-drawing and extruding. The SINAMICS S120 AC drive is built up by a wide range of motors. There are several motors with which the AC drive is compatible. These motors include rotary, linear, synchronous, and induction.
