Siemens 6SL3120-2TE13-0AA3

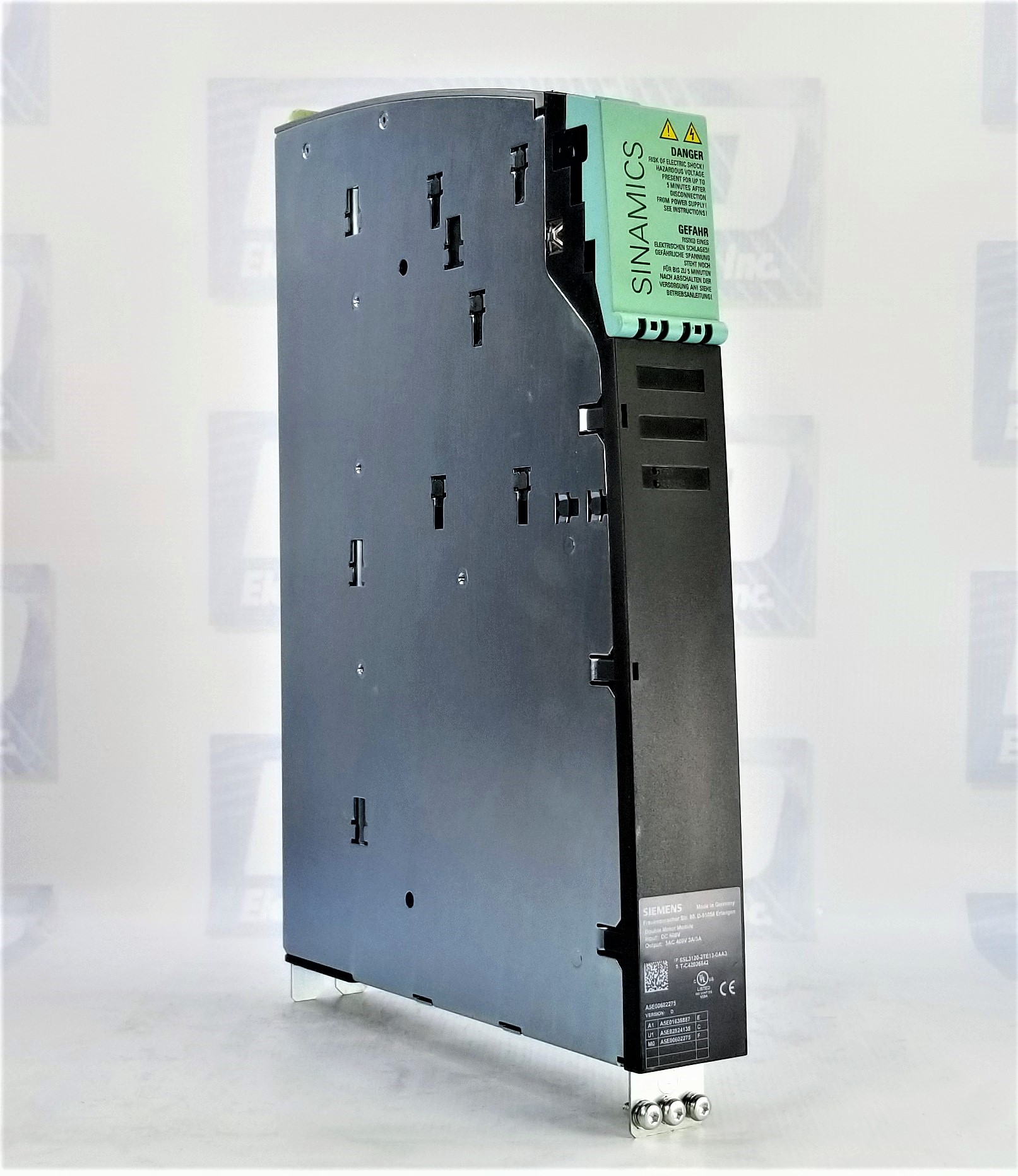

Siemens 6SL3120-2TE13-0AA3 SINAMICS S120 Double Motor Module Drive: An In-Depth Overview

The Siemens 6SL3120-2TE13-0AA3 is a high-performance double motor module drive from the renowned SINAMICS S120 series. Designed with precision and efficiency in mind, this drive is a perfect choice for applications requiring advanced control capabilities and optimal energy utilization. With its unique booksize format and powerful specifications, it caters to a broad range of industrial needs, ensuring reliability and versatility in dynamic environments.

Key Specifications and Features

This SINAMICS S120 drive operates within a voltage range of 510-720V DC, making it compatible with a variety of power systems and providing flexibility in numerous applications. The drive features two motor modules, each capable of delivering 1.6 kW (2.1 HP) of power, translating to an output capacity of 3 Amps per channel. This configuration makes it ideal for applications that demand precise control of multiple motors in a compact footprint, optimizing space without compromising performance.

The Siemens 6SL3120-2TE13-0AA3 is engineered for applications requiring high dynamics and stringent speed and torque accuracy. It is well-suited for use in materials handling systems, packaging machinery, and machine tools. The advanced vector control capabilities allow it to handle complex movements with ease, ensuring smooth operation and improved productivity.

Design and Build

The booksize format of this drive makes it a valuable asset for applications where space is at a premium. Its compact design does not just save space; it also facilitates easier installation and maintenance. The drive's robust build ensures that it can withstand challenging industrial environments, making it a reliable choice for continuous operation. The double motor module setup provides added flexibility for users who need to control two motors independently while maintaining synchronized performance.

Additionally, this Siemens motor module drive includes comprehensive diagnostics and safety functions, such as overcurrent, overvoltage, and overtemperature protection, safeguarding both the device and the motors it controls. This proactive approach to fault management minimizes downtime and maximizes the lifespan of both the drive and connected equipment.

Efficiency and Control

The 6SL3120-2TE13-0AA3 model incorporates Siemens' advanced drive technology, providing superior energy efficiency and precise motor control. It is optimized for energy savings, reducing operational costs by using power more effectively and minimizing heat generation. The drive supports a wide range of communication interfaces, making integration into existing control systems straightforward. It allows for seamless communication with other components within the SINAMICS family, enhancing overall system performance.

The drive's double motor module configuration enables it to handle complex tasks, such as synchronized or coordinated motion control, with ease. It offers both open and closed-loop control, catering to applications requiring various levels of speed and torque precision. The sophisticated control algorithms ensure maximum torque at minimum speeds, providing smooth operation even under heavy load conditions.

Warranty and Support

The Siemens 6SL3120-2TE13-0AA3 drive is backed by a comprehensive 2-year warranty from MRO Electric and Supply, reflecting confidence in its quality and reliability. The warranty ensures that users have peace of mind and access to support in the unlikely event of any issues. Additionally, MRO Electric offers free shipping, making it easier for customers to obtain this crucial component without incurring additional costs.

Frequently Asked Questions (FAQ) for Siemens 6SL3120-2TE13-0AA3 SINAMICS S120 Double Motor Module Drive.

1. What is the Siemens 6SL3120-2TE13-0AA3 used for?

The Siemens 6SL3120-2TE13-0AA3 is a double motor module drive from the SINAMICS S120 series. It is designed for applications that require precise control of two motors simultaneously, such as in materials handling, packaging machinery, machine tools, and other industrial equipment that needs coordinated or synchronized motor control.

2. What voltage does the drive operate on?

This drive operates within a voltage range of 510-720V DC, making it suitable for various power supply configurations and industrial environments.

3. How much power can each motor module deliver?

Each motor module within the Siemens 6SL3120-2TE13-0AA3 can deliver 1.6 kW (2.1 HP) of power, providing ample capacity for a wide range of motor-driven applications.

4. What are the dimensions of the Siemens 6SL3120-2TE13-0AA3 drive?

The drive is designed in a booksize format, meaning it has a compact footprint that is ideal for installations where space is limited. While the exact dimensions are not specified here, the booksize format is known for its slim, vertical design that fits easily into tight spaces.

5. Does this drive support communication with other devices?

Yes, the Siemens 6SL3120-2TE13-0AA3 supports a range of communication interfaces, allowing seamless integration with other components within the SINAMICS family and other industrial automation systems. This compatibility enables comprehensive drive control and monitoring in a variety of setups.

6. What safety features are included in this drive?

The drive includes several safety and diagnostic features, such as overcurrent, overvoltage, and overtemperature protection. These features are designed to prevent damage to the drive and connected motors, ensuring reliable and safe operation even in demanding conditions.

7. What type of control does this drive offer?

The Siemens 6SL3120-2TE13-0AA3 provides both open and closed-loop control. This flexibility allows the drive to be used in applications that require different levels of speed and torque precision, making it suitable for a wide range of industrial uses.

8. Is there a warranty for the Siemens 6SL3120-2TE13-0AA3 drive?

Yes, the drive comes with a 2-year warranty provided by MRO Electric and Supply.

9. Does the drive qualify for free shipping?

Yes, MRO Electric and Supply offers free shipping for the Siemens 6SL3120-2TE13-0AA3 drive, making it more convenient and cost-effective for customers to purchase and receive this component.

10. How can I install the Siemens 6SL3120-2TE13-0AA3?

Installation should be carried out by a qualified technician, following Siemens’ guidelines in the product manual. Proper installation is essential to ensure the drive's optimal performance and longevity. The manual provides detailed instructions for wiring, mounting, and configuring the drive within your specific application.
