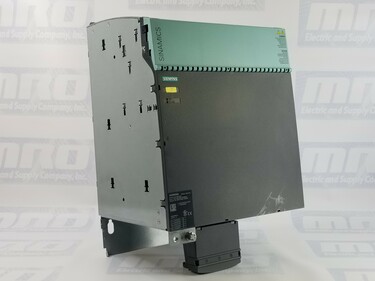

S120 DRIVE SYSTEM BOOKSIZE FORMAT ACTIVE LINE MODULE - 3PH - 380-480V AC, 120KW, 150HP
| Part Number | 6SL3130-7TE31-2AA3 |
| Manufacturer | Siemens |
| Type | AC Drives |
| Model # | 6SL31307TE312AA3 |
| Warranty | 2 Year |
| Phase | 3 Phase AC |
| Line voltage | 342 ... 528 V |
| Line frequency | 47 ... 63 Hz |
| Rated Infeed power | 120 kW (150 hp) |
| Infeed power for S6 duty | 145 kW |
| Max Infeed Power | 175 kW |
| Regen, feedback power | 120 kW (150 hp) |
| DC-link current at 600 V DC | 200 A |
| DC-link current for S6 duty | 244 A |
| Max DC-link current | 292 A |
| Input current at 380 V AC 3-phase | 192 A |
| Input current at 400V AC 3-phase | 182 A |
| Input current at 480V AC 3-phase | 152 A |
| Input current at 400 V S6 duty | 220 A |
| Input current at 400 V, maximum | 267 A |
| Degree of protection | IP20 / UL open type |
| Construction | Booksize |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3130-7TE31-2AA3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3130-7TE31-2AA3 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3130-7TE31-2AA3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6SL3130-7TE31-2AA3 for credit when ordering from MRO Electric
The Siemens 6SL3130-7TE31-2AA3 is a high-performance AC drive for industrial applications requiring robust, energy-efficient, and compact infeed solutions. This model is manufactured by Siemens and backed by a 2-year MRO Electric and Supply warranty. It belongs to the SINAMICS S120 family, well-known for its advanced drive technology and modular architecture. Engineered for precision and versatility, the 6SL3130-7TE31-2AA3 is ideally suited for automation systems where energy feedback and compact form factors are critical.
This drive is configured for 3-phase AC input with a broad line voltage range of 342 to 528 volts, allowing for flexibility across global power standards. It operates within a frequency range of 47 to 63 Hz and can deliver a rated infeed power of 120 kW, equivalent to 150 horsepower. For high-demand applications requiring intermittent peak loads, the infeed module supports 145 kW under S6 duty and up to a maximum of 175 kW. The regenerative feedback power is also rated at 120 kW, making this drive capable of returning excess energy to the grid, thus improving overall energy efficiency.
The 6SL3130-7TE31-2AA3 offers impressive current capabilities across various voltage levels. At a DC-link voltage of 600 V, the rated current is 200 A, with S6 duty allowing up to 244 A and a peak capacity of 292 A. Input current values vary by supply voltage, drawing 192 A at 380 V AC, 182 A at 400 V AC, and 152 A at 480 V AC during standard operation. Under S6 duty conditions at 400 V, the current rises to 220 A, and the module can handle a maximum of 267 A at that voltage, ensuring reliable performance under demanding load profiles.
Compactness and flexibility define the construction of this Siemens AC drive. Its "booksize" form factor is optimized for control cabinets with limited space, allowing for dense mounting without compromising thermal management or electrical performance. The unit is rated with IP20 protection and conforms to UL open-type standards, making it suitable for installation within protected environments. This ensures easy integration into existing systems while maintaining compliance with industrial safety standards.
With Siemens' engineering excellence and MRO Electric's 2-year warranty, users gain the assurance of long-term reliability and after-sales support. Whether designing new automation systems or retrofitting older equipment, the 6SL3130-7TE31-2AA3 offers a durable and efficient power management solution, enhancing productivity and reducing energy costs.
What is the primary function of the 6SL3130-7TE31-2AA3?
It is a regenerative infeed module for Siemens SINAMICS S120 systems, managing power input and feeding recovered energy back into the grid.
Is this drive compatible with global voltage standards?
It supports line voltages from 342 to 528 V AC, suitable for European and North American systems.
What does "S6 duty" mean?
S6 duty refers to periodic duty with intermittent load and rest periods, allowing the drive to handle higher infeed power for short durations.
Can the drive be used in outdoor or wet environments?
No, it has an IP20 protection rating and is UL open type, meaning it must be installed in a protected enclosure.
Does the drive support regenerative braking?
It provides 120 kW regenerative feedback power, returning energy to the power grid instead of dissipating it as heat.
What industries commonly use this model?
It is used in manufacturing, robotics, material handling, packaging, and high-performance automation environments.
What is the maximum DC-link current it can handle?
The unit can handle up to 292 A of DC-link current.
How large is the physical unit?
It has a booksize construction, designed for compact mounting in control cabinets.
What kind of support comes with the product?
It includes a 2-year warranty from MRO Electric and access to Siemens technical support.
Can this unit be used with other Siemens SINAMICS components?
It integrates seamlessly with SINAMICS S120 drive systems and associated control modules.
