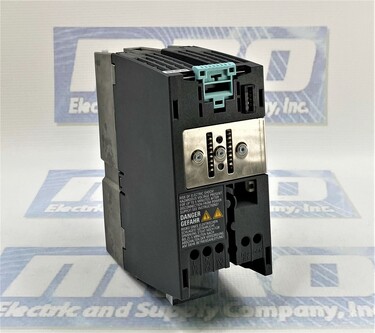

Siemens 6SL3224-0BE21-5UA0

SINAMICS G120 INVERTER POWER MODULES W/O LINE FILTER, 380-480V AC, 1.5KW, 2HP, 4.1A
5/5
1 rating

Available


Free Shipping

2 Year warranty

Part Number6SL3224-0BE21-5UA0
ManufacturerSiemens
TypeAC Drives
Model #6SL32240BE215UA0
Warranty2 Year
Low Overload (LO)
Number of phases3 AC
Line voltage380 ... 480 V ±10 %
Line frequency47 ... 63 Hz
Rated current with line reactor4.30 A
Rated current without line reactor4.90 A
Output
Number of phases3 AC
Rated voltage400 V
Rated power (LO)1.50 kW / 2.00 hp
Rated power (HO)1.50 kW / 2.00 hp
Rated current (LO)4.10 A
Rated current (HO)4.10 A
Max. output current8.20 A
Pulse frequency4 kHz
Output frequency for vector control0 ... 200 Hz
Output frequency for V/f control0 ... 550 Hz
Overload capability

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3224-0BE21-5UA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3224-0BE21-5UA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3224-0BE21-5UA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 5 hours and 30 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3224-0BE21-5UA0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3224-0BE21-5UA0 Overview

Part Number 6SL3224-0BE21-5UA0, manufactured by Siemens, is an AC drive designed for various industrial applications. This drive offers efficient and reliable motor control, allowing precise and flexible operation. It is a low overload (LO) drive, ideal for applications that require continuous operation within standard load conditions. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Features

The 6SL3224-0BE21-5UA0 is a three-phase AC drive, suitable for use with a line voltage of 380 to 480 V with a tolerance of ±10%. It operates at a line frequency ranging from 47 to 63 Hz, making it compatible with standard power systems.

Ratings

With a line reactor, the rated current of the drive is 4.30 A, whereas, without a line reactor, it is slightly higher at 4.90 A. These ratings ensure efficient power consumption and minimize energy losses during operation.

The output for the Siemens 6SL3224-0BE21-5UA0 drive is a three-phase AC. It provides a rated voltage of 400 V, allowing it to match the voltage requirements of the connected motor. The rated power of the drive, both in low overload (LO) and high overload (HO) modes, is 1.50 kW or 2.00 hp. This power rating ensures that the drive unit can handle the specified load efficiently and reliably.

The rated current for both low overload (LO) and high overload (HO) modes is 4.10 A, indicating the maximum current required by the drive to deliver the specified power output. The maximum output current of the drive is 8.20 A, allowing it to provide ample current to the motor during peak load conditions.

The pulse frequency of the 6SL3224-0BE21-5UA0 drive is 4 kHz, enabling precise and responsive control of the connected motor. This high pulse frequency ensures smooth motor operation and minimizes motor noise and vibrations.

Output

The output frequency for vector control ranges from 0 to 200 Hz, allowing for precise speed control and torque regulation of the motor. For V/f (Voltage to Frequency) control, the output frequency can be varied from 0 to 550 Hz, providing flexibility in motor speed control for different applications.

Capability

The 6SL3224-0BE21-5UA0 drive has an excellent overload capability, allowing it to handle temporary load increases without compromising performance or risking damage to the motor. This capability ensures reliable operation and protection for the connected motor during sudden load changes or transient conditions.

Siemens, a reputable manufacturer, has designed the 6SL3224-0BE21-5UA0 drive to meet high-quality standards. It is a durable and reliable AC drive that offers efficient motor control and precise performance. Whether for industrial machinery, process control, or other applications, this Siemens AC drive provides the necessary power and flexibility to meet the demands of various motor-driven systems.
