|Conductor cross-section||0.05 ... 1.50 mmÂ² (30 ... 16 AWG)|
|The Power Module||DC 24 V|
|External power supply||DC 20 ... 29 V|
|Max. power consumption||0.50 A|
|Power loss||5.50 W|
|Switching level: 0â†’1||11 V|
|Switching level: 1â†’0||5 V|
|Number||1 (Use of 2 Ã— DI Standard)|
|Number as relay changeover contact||2|
|Number||2 (Differential input)|
|2 (Non-isolated output)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3244-0BB12-1FA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3244-0BB12-1FA0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3244-0BB12-1FA0, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
This product weighs 1lb. Want it shipped tomorrow?
Ask about exchanging your faulty 6SL3244-0BB12-1FA0 for credit when ordering from MRO Electric

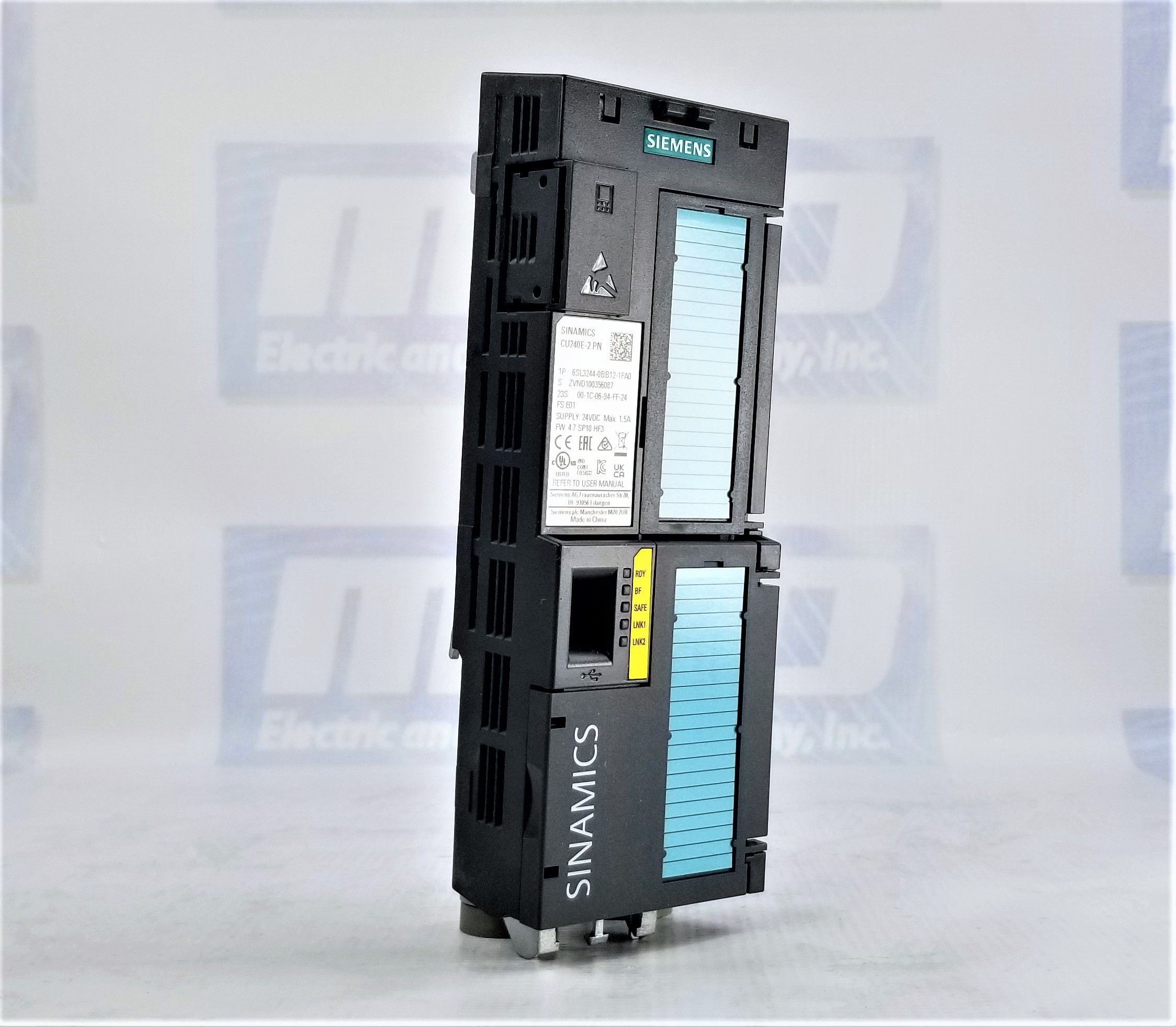

The 6SL3244-0BB12-1FA0 is a Sinamics G120 Control Unit. This unit features a Safe Torque Off (STO) function that prevents energy from being supplied to the motor, which can generate torque. This function can be used in a number of ways. It can be used with an Emergency Stop button, so that when it is pressed, the stationary motor does not start. It can also be used with a central Emergency Stop button to ensure that several drives cannot unintentionally start. The module functions by recognizing the selection of STO via a fail-safe input or via the safe communication PROFIsafe. The converter then safely switches off the torque of the connected motor. If no motor brake is present, the motor coasts to a standstill. If a motor holding brake is in use, the converter closes the brake immediately after selecting STO.
The Safe Stop 1 (SS1) is another function of the 6SL3244-0BB12-1FA0. The SS1 function brakes the motor, monitors the magnitude of the motor deceleration within defined limits and initiates the STO function if the motor speed falls below a specified value. The SS1 function brakes the motor, and monitors its absolute speed. If the motor speed is low enough, the converter safely switches off the motor torque using STO.
The third function of the 6SL3244-0BB12-1FA0 is Safely Limited Speed (SLS). The SLS function prevents the motor from exceeding the defined speed limit. SLS monitors the absolute value of the actual speed and limits the speed to values below the monitoring threshold. The Safe Direction Function (SDI) prevents the motor shaft from moving in the wrong direction. It does this by monitoring the actual direction of rotation, and also limits the speed to values in the permissible direction. The Safe Speed Monitor (SSM) function supplies a safe output signal to indicate whether the motor speed lies below a defined limit. SSM cannot be selected or deselected, it is only active when monitoring velocity is > 0 for SSM. The converter then compares the load speed with the speed limit and signals if the limit value has fallen below the high-level control.
