A06B-6079-H208

A06B-6079-H208

2 AXIS ALPHA SERVO MODULE MDL SVM2-80/80

12 remanufactured in stock
Ships Today

Free 2 Day Shipping
1 year warranty

Categories

Part NumberA06B-6079-H208
ManufacturerFANUC
SeriesAutomation
Weight15lbs
TypeCNC
Warranty1 year
Article NumberA06B6079H208
Maxis 18.7A
TypeServo Amplifier
Axis2 Axis
ModelSVM2-80/80
Rated Input9.5kW
Maximum Output230V
Rated Output CurrentLaxis 18.7A
Manual NumberB-65162
Weight14 LB
Height13.5 IN
Length14 IN
Width3.5 IN
Country of OriginJapan

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6079-H208 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6079-H208 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6079-H208, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 15lbs. Want it shipped today?

  • Order within the next 5 hours and 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6079-H208 for credit when ordering from MRO Electric

Additional Information

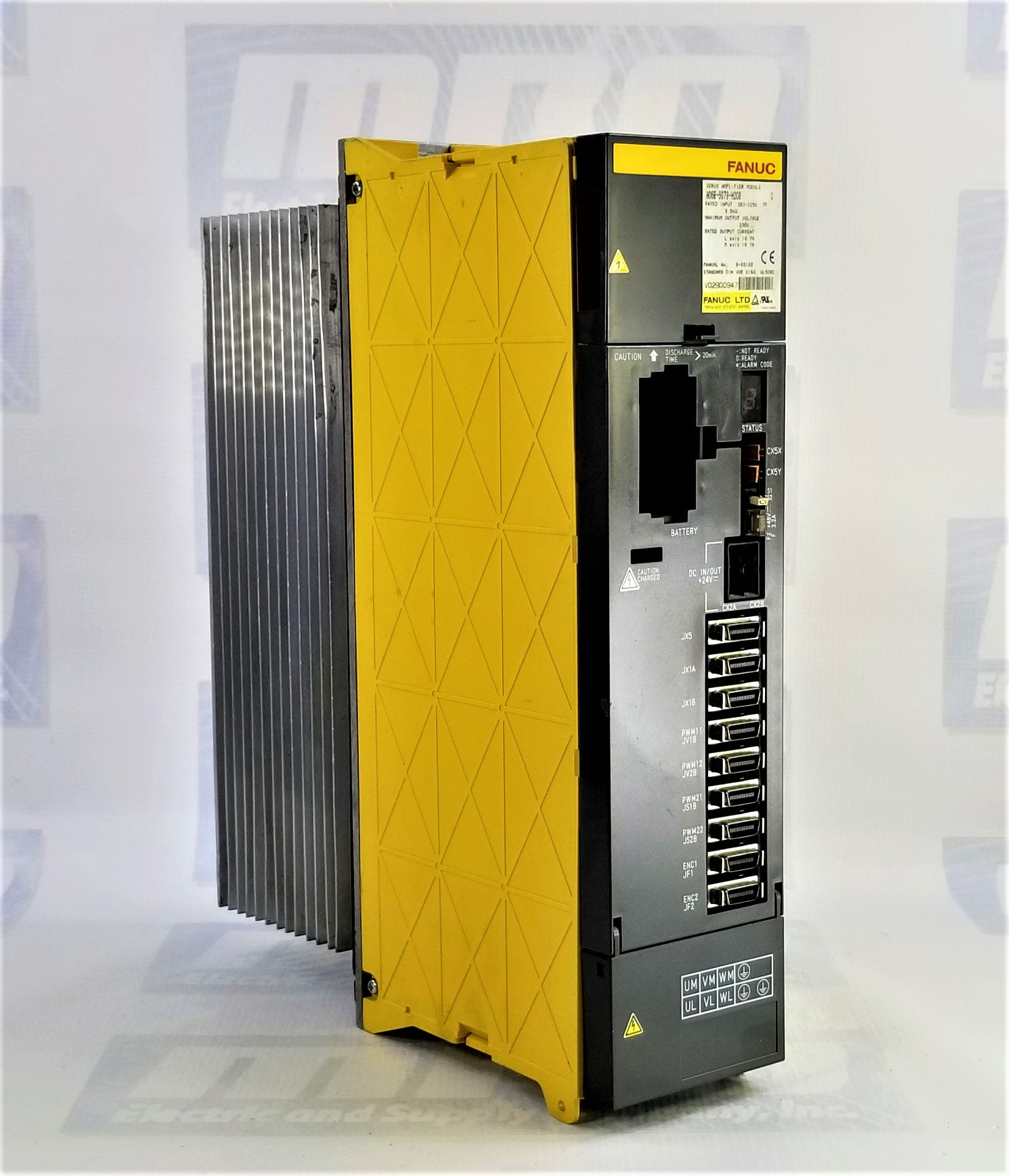

The FANUC A06B-6079-H208 is a Servo Amplifier module, SVM2-80/80. This module drives a servo motor of the 200V input series. It is a 2-Axis amplifier, and can be used with Type A or Type B interfaces. The module weighs approximately 7.0 Kg. Its external dimensions are 380 x 90 x 307 millimeters. It has a rated output current [Arms] of 18.7 and a nominal current limit [Ap] of 80.

One common alarm for the A06B-6079-H208 is Alarm 9. When this occurs, the M-Axis has an over current caused by a servo drive or motor fault. If you have an Alarm 9 with a dot, then that is an M-Axis IPM alarm, and you should replace or repair your A06B-6079-H208.

Below is the A06B-6079-H208 wiring diagram for ground cable connections:

A06B-6079-H208 Wiring Diagram
A06B-6079-H208 Wiring Diagram

The A06B-6079-H208 converts alternating current to direct current in the converter section, and exercises variable motor speed control by PWM control based on switching by the six transistors in the inverter section. Switching noise is generated by the 6 transistors turning off and on at high speeds. Each time a transistor turns on or off, noise current flows to ground through stray capacitance between the cable or motor and ground. The value of this noise current depends on the stray capacitance and transistor switching speed. The frequency band of the amplifier’s noise is about 30-40 MHz.

The presence of this noise means that cost-effective measures should be taken to reduce its level. Noise problems prevented prior to operation can help reduce costs over the lifetime of the installation. The following precautions should be taken when installing your A06B-6079-H208:

  • Separate power lines and motor power lines from signal lines.
  • Contain power lines and motor power lines in a metallic conduit.
  • Perform appropriate grounding installation including grounding wire connections. This will also serve to prevent electrical shock due to leakage currents.
  • Grounding wires should be as thick and as short as possible.

Noise can affect things like radio communication, refrigeration, telehones, fax machines, and essentially any electronics nearby.

This SVM2-80.80 model is wonderful at equipping a manufacturing line with the ability to communicate between the axis’ and motor, and the controller.  This piece is instrumental in the successful execution of an assembly line process. If there is no piece which facilitates the communication of the control panel, where commands are inputted, and the motor which powers the corresponding axis, then the process will fail.  This lack of communication would result in a lack of direction, power, and movement. The output is rated at 9.5kilowatz, and the output current is rated Laxis 18.7A. With a Maximum output current of 230 Vaults this module will perform at a wonderfully high level.

Check out the rest of our FANUC product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like A06B-6079-H208, take a look at more from our Automation line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
