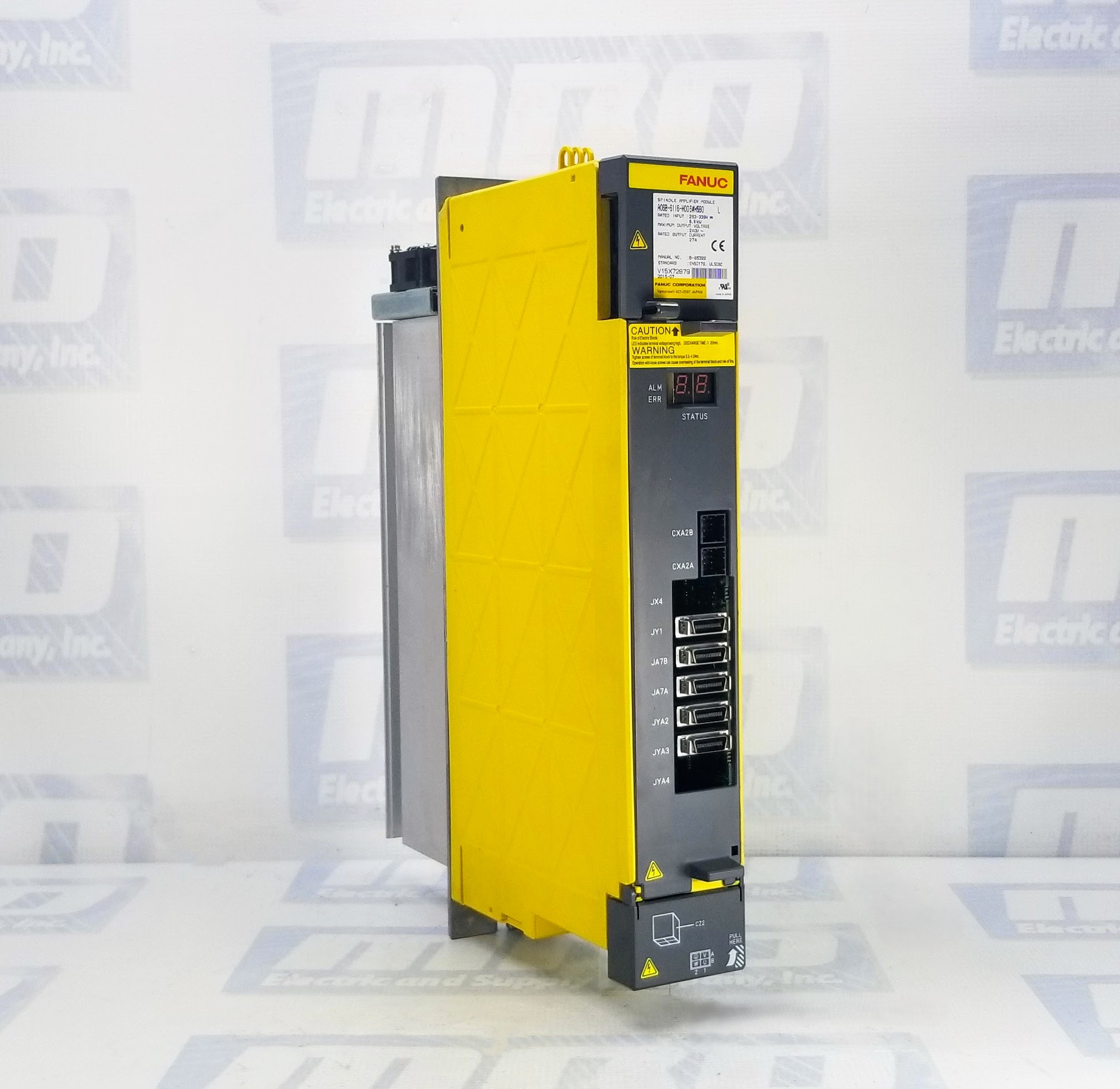

FANUC A06B-6116-H006#H560

FANUC A06B-6116-H006#H560 – High-Performance Spindle Amplifier Module for Precision CNC Applications

The FANUC A06B-6116-H006#H560 is a high-quality spindle amplifier module engineered for precise, efficient, and high-speed performance in CNC machinery. Designed to work with FANUC's advanced CNC control systems and Alpha spindle motors, this amplifier module ensures seamless power conversion and torque control for demanding industrial applications. With an input voltage range of 283 to 339 VAC and a rated power output of 6.8 kW, it is well-suited for a broad range of machine tool operations, including milling, turning, and grinding. Its robust design and superior output characteristics—27 amps at a maximum of 240 VAC—make it a dependable component in environments requiring high performance and long-term reliability.

Optimized for Performance and Control

The A06B-6116-H006#H560 is part of FANUC's Alpha I series, known for its innovative design and enhanced functional control over spindle motors. This module delivers smooth acceleration and deceleration, enabling precise spindle speed regulation and torque management. The module's performance is particularly critical in high-speed machining, where accurate control directly impacts finish quality and machining efficiency. Built-in intelligence helps maintain stability during variable loads, ensuring that the spindle operates without excessive wear or vibration even in demanding conditions. These performance attributes contribute significantly to increased productivity, reduced scrap rates, and extended equipment life.

Reliable Power Handling and Advanced Protection

With a 6.8 kW output rating and the capacity to deliver 27 amps at up to 240 VAC, the A06B-6116-H006#H560 provides ample power for mid-range spindle motors. It features multiple protective measures, including thermal overload protection, overcurrent detection, and fault diagnostics, which are crucial for maintaining the integrity of the motor and the broader drive system. The amplifier's design emphasizes stable voltage output and precise motor current control, enhancing reliability and consistent power delivery. These built-in safety features simplify maintenance and troubleshooting, giving users confidence in new installations and long-term usage.

Compact, Efficient Design for Flexible Integration

One of the advantages of the A06B-6116-H006#H560 is its compact and modular structure, which allows it to be installed easily into various machine configurations. Its design promotes optimal airflow and heat dissipation, which is ideal for enclosed or high-demand electrical cabinets. The module also has standard connectors and interface ports to simplify integration with existing systems. For maintenance engineers and machine builders, this unit's straightforward installation and consistent performance are especially beneficial when reducing machine downtime and upgrading older systems.

In Stock Now at MRO Electric – Fast Shipping and Warranty

The FANUC A06B-6116-H006#H560 spindle amplifier module is available for immediate shipping from MRO Electric and Supply. Backed by a 2-year warranty and free shipping, this product ensures performance and peace of mind. Whether for replacing a failed unit or outfitting a new CNC build, MRO Electric's inventory and support services make it easy to source this vital component quickly and reliably. Count on this amplifier to deliver the performance and durability expected of FANUC's world-class engineering.

FAQs – FANUC A06B-6116-H006#H560 Spindle Amplifier Module

What type of machines is this amplifier used in?

It is primarily used in CNC machines to control spindle motors.

What is the input voltage range?

The input voltage range is between 283 and 339 VAC.

What is the rated power output?

This module outputs 6.8 kW of power.

What is the maximum output voltage?

The amplifier can deliver up to 240 VAC.

What is the maximum output current?

The maximum current output is 27 amps.

Is this part of a specific FANUC series?

Yes, it belongs to the Alpha I series of spindle amplifier modules.

Does it support energy regeneration?

While it focuses on spindle control, it is designed to integrate with regenerative systems in FANUC drives.

Is this unit compatible with older CNC systems?

It is compatible with many FANUC CNC systems, especially Alpha spindle setups.

How is this unit cooled?

It uses forced air cooling with an optimized heat dissipation design.

Does MRO Electric offer a warranty?

Yes, it includes a 2-year warranty with free shipping.
