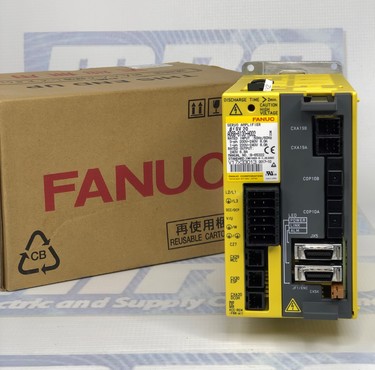

A06B-6130-H002

A06B-6130-H002

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Fanuc

DESCRIPTION: FIBER OPTIC MDL BSVM1-20i

PRODUCT TYPE INFO: BETA i SERVO

3 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberA06B-6130-H002
ManufacturerFANUC
SeriesAutomation
Model #A06B6130H002
Weight4lbs
TypeCNC
Warranty2 Year
Interface Fiber optic
Input 240 VAC
Output 6.8 A
Rated input50 Hz/60 Hz
3-Phase200 V-240 V
1-Phase220 V- 240 V

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6130-H002 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6130-H002 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6130-H002, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 4lbs. Want it shipped today?

  • Order within the next 9 hours and 39 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6130-H002 for credit when ordering from MRO Electric

Additional Information

Fanuc A06B-6130-H002 Overview

The Fanuc servo amplifier βi series SVM A06B-6130-H002 is part of a system consisting of three basic modules and two optional modules. Configuration consists of a servo amp, an AC line filter, connectors, fuses, and power transformer modules. Connected to a CNC or similar host module through the 128 DI and 128 DO of the I/O link. The servo amp host uses the ladder program to send commands to the servo amp unit.  The interface monitors the status. The instruction command goes to the servo amp module and the response command goes to the host unit, such as a CNC.

Advantages

The I/O link used by the Fanuc A06B-6130-H002 communicates with the interface area which is split into two sectors. One of the interface areas is the signal area.  The signal area is where the reset and alarm signals are located. The second interface area is the command code area. The command code area moves commands and monitors status command code. The interface serves several functions that it communicates to the Fanuc A06B-6130-H002. It is able to directly read/write the signal and uses it to select the proper interface mode as well as other things such as start and stop operations and monitors for conditions that trigger alarms. Using the information gleaned from the interface, the servo amp is informed by commands issued by linking function code and command data. Basically, the interface transfers the data to and from the servo amp. It does this through the implementation of two operation modes.

How to use the Fanuc A06B-6130-H002

The two interface operation modes that communicate to the Fanuc A06B-6130-H002 are the peripheral equipment control and direct command. How is the mode selected? The DRC signal in the signal area informs the choice. The direct command interface issues command to the servo amp such as positioning operation. It can also issue other commands such as wait, perimeter read/write, and diagnosis data commands. Many servo amp operations can be implemented with the direct command interface.  The other interface is the peripheral equipment control interface. It is able to send commands that manipulate the peripheral machine tool equipment. This affects positioning operations such as axis clamp and unclamp, which it can do with a simple command. If a ladder program is already available this is a useful interface.

How do you know which interface control is communicating with the Fanuc servo amp? The “0” DRC signal indicates the peripheral equipment control interface is selected and the DRC “1” indicates that the direct command interface is selected. Under normal circumstances, the interface switching does not occur when the power is on, but if it becomes necessary, the host can switch the interface. It does this by sending a DRC signal.

The Fanuc servo amplifier βi series SVM A06B-6130-H002 comes with a two-year warranty.
