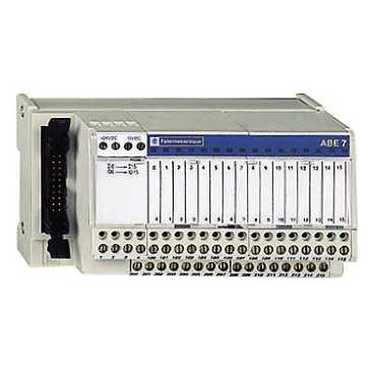

ABE7H16R23

ABE7H16R23

Passive connection sub-base ABE7 - 16 type 2 inputs - Led
Available - call for stock

2 year warranty

Categories

Part NumberABE7H16R23
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeBases
Warranty2 year
Width4.92 in (125 mm)
Range of productAdvantys Telefast ABE7
Product or component typePassive discrete I/O sub-base
Sub-base typeType 2 input sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Number of terminal per channel2
Supply circuit typeDC
Number of horizontal rows2
Status LED1 LED per channel, green channel status
1 LED, green power ON
Polarity distribution0 V or 24 V
Short circuit protection2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Connector typeHE-10
Pin number20 pins
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Supply current<= 1.8 A
Current per channel<= 0.5 A
Current per output common<= 1.8 A
Voltage drop on power supply fuse0.3 V
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)
