|Width||4.92 in (125 mm)|

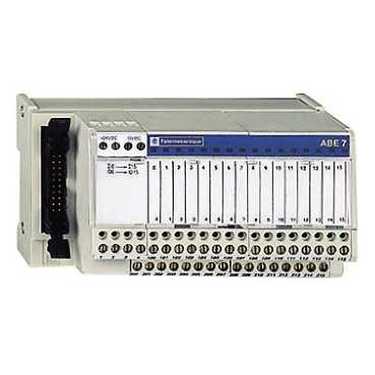

|Range of product||Advantys Telefast ABE7|
|Product or component type||Passive discrete I/O sub-base|
|Sub-base type||I/O sub-base|
|[Us] rated supply voltage||19...30 V conforming to IEC 61131-2|
|Number of channels||16|
|Number of terminal per channel||3|
|Supply circuit type||DC|
|Number of horizontal rows||3|
|Status LED||1 LED, green power ON|
|Polarity distribution||0 V or 24 V|
|Short circuit protection||2 A internal fuse, 5 x 20 mm, fast blow (PLC end)|
|Pin number||20 pins|
|Fixing mode||By clips on 35 mm symmetrical DIN rail|
|By screws on solid plate with fixing kit|
|Supply current||<= 1.8 A|
|Current per channel||<= 0.5 A|
|Current per output common||<= 1.8 A|
|Voltage drop on power supply fuse||0.3 V|
|[Ui] rated insulation voltage||2000 V|
|Installation category||II conforming to IEC 60664-1|
|Tightening torque||5.31 lbf.in (0.6 N.m) (with flat Ã˜ 3.5 mm)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7H16R30 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7H16R30 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7H16R30, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
This product weighs 1lb. Want it shipped tomorrow?
Ask about exchanging your faulty ABE7H16R30 for credit when ordering from MRO Electric
We accept all major credit cards, wire transfers, and net terms for established customers.
