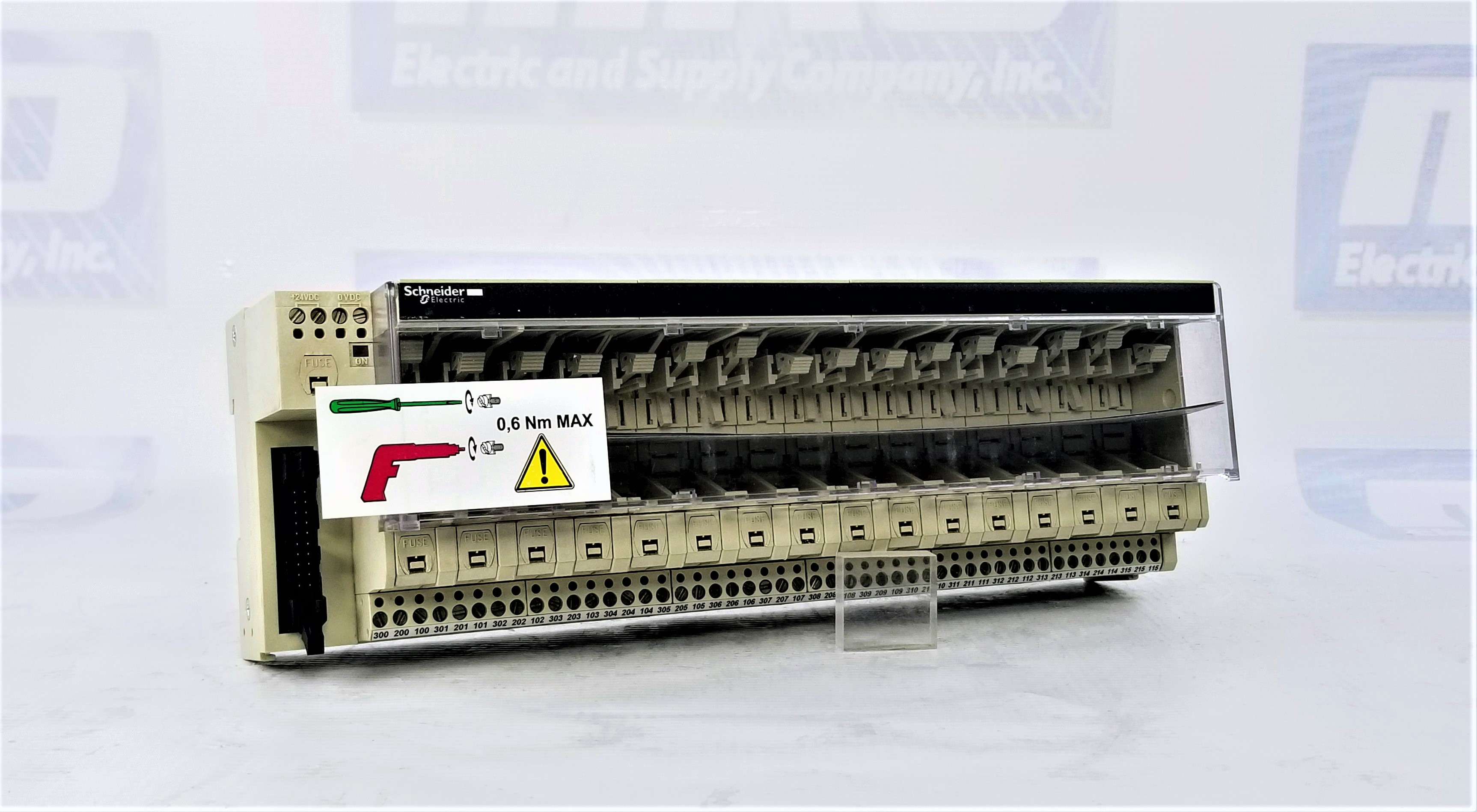

ABE7P16T334

ABE7P16T334

Sub-Base For PLug-In Relay Abe7 - 16 Channels - Fuses - Relay 12.5 Mm
1 new in stock

Free 2 Day Shipping
2 year warranty

Categories

Part NumberABE7P16T334
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeTelefast
Warranty2 year
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)
Product compatibilityABR7S33
ABS7ACC21
ABS7SA3M
ABS7SC3BA
ABS7SC3E
Connections - terminalsScrew type terminals 1 0.14 - 2.5 mm² 26...14 flexible without cable end
Screw type terminals 1 0.09 - 1.5 mm² 28...16 flexible with cable end
Screw type terminals 1 0.14 - 2.5 mm² 26...12 solid
Screw type terminals 2 0.09 - 0.75 mm² 28...20 flexible with cable end
Screw type terminals 2 0.2 - 2.5 mm² 24...14 solid
[Ui] rated insulation voltage2000 V terminals/mounting rails
300 V IEC 60947-1 coil circuit/contact circuits
[Uimp] rated impulse withstand voltage2.5 kV
[Us] rated supply voltage19...30 V IEC 61131-2
Current per output common<=16 A
Polarity distributionVolt-free
Short circuit protection1 A internal fuse 5 x 20 mm fast blow PLC end
2 A fuse per channel 5 x 20 mm fast blow output circuit
Supply circuit typeDC
Supply current<=1 A
Voltage drop on power supply fuse0.3 V
Status LED1 LED per channel green channel status
1 LED green power ON
Fixing modeBy clips 35 mm symmetrical DIN rail
By screws solid plate with fixing kit
Installation categoryII IEC 60664-1
Tightening torque0.6 N.m flat Ø 3.5 mm
Number of channels16
Product or component typeSub-base for plug-in relay
Range of productAdvantys Telefast ABE7
Sub-base typeOutput sub-base
Common descriptionBASE FOR EM/SS RELS FUSE WITHOUT COM.-
