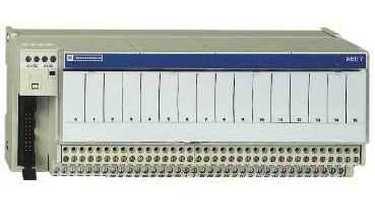

ABE7R08S210

ABE7R08S210

Sub-Base - Soldered Electromechanical Relays Abe7 - 8 Channels - Relay 10 Mm
Available - call for stock

2 year warranty

Categories

ManufacturerSchneider Electric
SeriesModicon Communication
Tightening torque5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeElectromechanical output relay sub-base
[Us] rated supply voltage24 V DC (PLC end)
Number of channels8
Number of terminal per channel2
Terminal block typeRemovable
Polarity distributionVolt-free
Fixing modeBy screws on solid plate with fixing kit
By clips on 35 mm symmetrical DIN rail
Width125 mm
Current per output common<= 10 A
Current per channel5 A (preactuator end)
Minimum switching current10 mA at >= 5 V
Drop-out voltage2.4 V at 20 °C (PLC end)
Switching frequency<= 0.5 Hz
<= 10 Hz
Threshold tripping voltage19.7 V at 40 °C
Drop-out current1 mA at 20 °C
Power dissipation per channel in W<= 0.36 W (PLC end)
Contacts type and composition1 NO(preactuator end)
Maximum switching voltage30 V DC conforming to IEC 60947-5-1
250 V AC 50/60 Hz conforming to IEC 60947-5-1
Electrical durability500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end)
500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end)
500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end)
500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end)
Electrical reliability1e-008
Operating time<= 5 ms between coil de-energisation and NO opening
<= 10 ms between coil energisation and NO closing
Contact bounce time<= 5 ms 1 NO
Operating rate in Hz0.5 Hz at Ie
10 Hz no load
Mechanical durability20000000 cycles
[Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1
