ABE7R16T230

ABE7R16T230

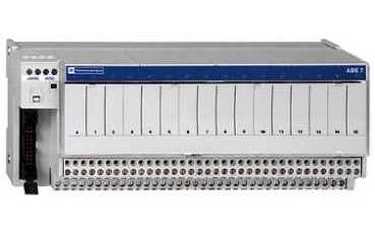

Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 10 Mm
Available - call for stock

Free 2 Day Shipping
2 year warranty

Categories

Part NumberABE7R16T230
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeBases
Warranty2 year
Tightening torque5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeSub-base with plug-in electromechanical relay
Sub-base typeOutput sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Supply circuit typeDC
Product compatibilityABR7S23
Contacts type and composition1 C/O
Status LED1 LED per channel, green channel status
1 LED, green power ON
Polarity distributionVolt-free
Short circuit protection1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
0.5 A fuse per channel, 5 x 20 mm, fast blow (output circuit)
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Supply current<= 1 A
Voltage drop on power supply fuse0.3 V
[Ui] rated insulation voltage2000 V between terminals/mounting rails
300 V between coil circuit/contact circuits conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage2.5 kV
Installation categoryII conforming to IEC 60664-1
