ABE7R16T212

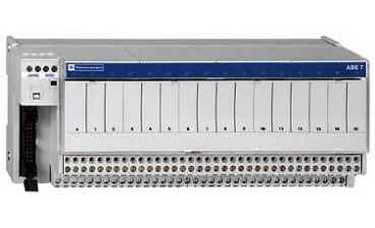

Schneider Electric ABE7R16T212

ABE7R16T212

Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 10 Mm
2 year warranty

Instant Price Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like ABE7R16T212, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon Communication
Tightening torque5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeSub-base with plug-in electromechanical relay
Sub-base typeOutput sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Supply circuit typeDC
Product compatibilityABR7S21
Contacts type and composition1 NO
Status LED1 LED per channel, green channel status
1 LED, green power ON
Polarity distributionPolarity distribution contact common per 2 groups of 8 channels
Short circuit protection1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
0.5 A fuse per channel, 5 x 20 mm, fast blow (output circuit)
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Supply current<= 1 A
Voltage drop on power supply fuse0.3 V
[Ui] rated insulation voltage2000 V between terminals/mounting rails
300 V between coil circuit/contact circuits conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage2.5 kV
Installation categoryII conforming to IEC 60664-1
