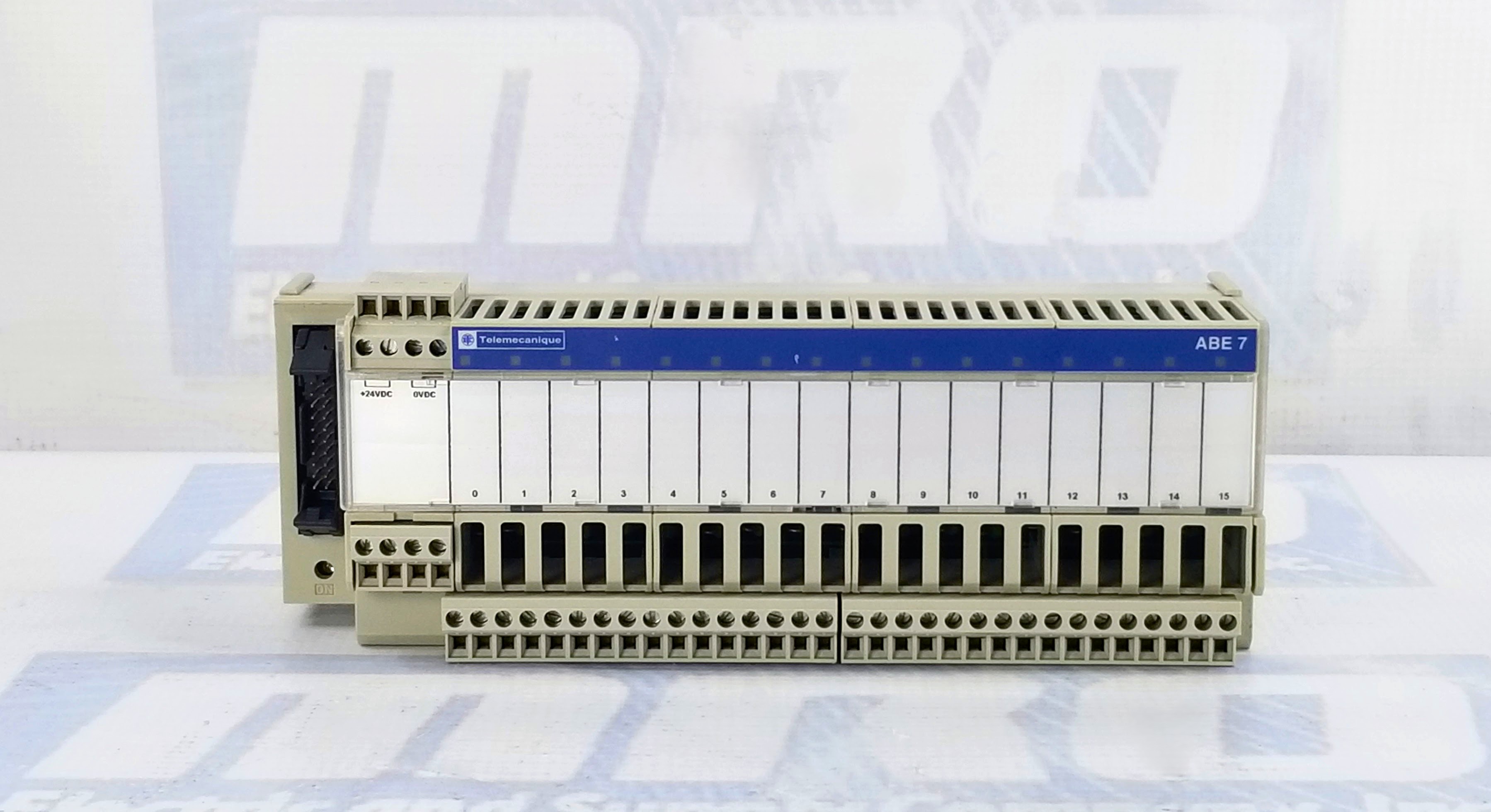

SUB-BASE - SOLDERED SOLID STATE OUTPUT RELAY ABE7 - 16 INPUTS
| Part Number | ABE7S16E2M0 |
| Manufacturer | Schneider Electric |
| Type | Accessories |
| Warranty | 2 Year |
| Tightening torque | 5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm) |
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Solid state input relay sub-base |
| [Us] rated supply voltage | 230/240 V AC 50/60 Hz (sensor end) |
| 24 V DC (PLC end) | |
| Number of channels | 16 |
| Number of terminal per channel | 2 |
| Terminal block type | Removable |
| Supply voltage limits | 19...30 V DC (PLC end) conforming to IEC 61131-2 |
| Isolation PLC/operative part | Yes |
| Protection type | Internal fuse of 1 A (5 x 20 mm), fast blow typeat PLC end |
| Adjustable by external fuse, fast blow typeat sensor end | |
| Fixing mode | By clips on 35 mm symmetrical DIN rail |
| By screws on solid plate with fixing kit | |
| [Ie] rated operational current AC | <= 0.008 A |
| Current state 1 guaranteed | >= 4.5 mA (sensor end) |
| Voltage state1 guaranteed | >= 164 V (sensor end) |
| Maximum switching current | 15 mA (PLC end) |
| Minimum switching current | 1 mA (PLC end) |
| Response time | <= 20 ms from state 0 to 1 |
| <= 20 ms from state 1 to 0 | |
| Switching frequency | <= 25 Hz duty cycle: 50 % |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 2000 V |
| Installation category | II conforming to IEC 60664-1 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ABE7S16E2M0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ABE7S16E2M0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ABE7S16E2M0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ABE7S16E2M0 for credit when ordering from MRO Electric
The Schneider Electric ABE7S16E2M0 is a solid-state input relay sub-base designed for use with the Advantys Telefast ABE7 series. Engineered for efficiency and reliability, this 16-channel I/O sub-base ensures seamless integration between field sensors and programmable logic controllers (PLCs), making it ideal for complex automation environments.
This sub-base features 16 input channels, each with 2 terminal connections, offering simplified wiring and organized connectivity. It supports both 230/240V AC at the sensor end and 24V DC at the PLC end, allowing for flexible signal interfacing in industrial control systems. Each terminal block is removable, ensuring convenient maintenance and wiring modifications.
Built with internal and external fuse protection, the ABE7S16E2M0 safeguards both the sensor and PLC ends from overload or short-circuit damage. It includes an internal fast-blow fuse (1 A, 5 x 20 mm) at the PLC side. It supports external fast-blow fuses on the sensor end, ensuring optimal operational safety in industrial environments.
This module ensures consistent performance with a response time of ≤ 20 ms for both transitions (from state 0 to state one and vice versa). It guarantees current and voltage thresholds, such as ≥ 4.5 mA and ≥ 164 V, at the sensor end. With a maximum switching frequency of 25 Hz and a duty cycle of 50%, it is ideal for stable and moderate-speed control processes.
Rated with 2.5 kV impulse withstand voltage and 2000 V insulation, the ABE7S16E2M0 meets IEC 60947-1 and IEC 60664-1 standards, ensuring robust electrical insulation and resistance to industrial interference. Installation is flexible, utilizing DIN rail clips or screw mounting kits, which support a wide range of panel layouts.
The ABE7S16E2M0 is available immediately from MRO Electric and Supply and includes a 2-year warranty. MRO Electric is a trusted distributor offering high-quality Schneider Electric components, fast shipping, and responsive customer service.
What is the Schneider ABE7S16E2M0 used for?
It is a solid-state input relay sub-base used for interfacing sensors to PLCs in automation systems.
How many channels does it support?
It features 16 individual input channels, each with two terminals.
What voltages does it operate on?
It supports 230/240V AC on the sensor end and 24V DC on the PLC end.
Is it safe for use in industrial environments?
Yes, it includes internal and external fuse protection and meets IEC safety standards.
How is it mounted?
It can be mounted using DIN rail clips or screw kits on solid plates.
What kind of fuses are used?
A 1A internal fast-blow fuse protects the PLC side; the sensor end can be protected with external fast-blow fuses.
What's the switching frequency?
It supports a switching frequency of up to 25 Hz with a 50% duty cycle.
Does it have LED indicators?
No, this specific sub-base model does not have integrated LED indicators.
What is the rated impulse voltage?
It can withstand 2.5 kV impulse voltage, ensuring high durability in noisy environments.
Is it in stock?
Yes, MRO Electric has it available for immediate shipping with a 2-year warranty.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7S16E2M0, take a look at more from our Accessories line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our ABE7S16E2M0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
