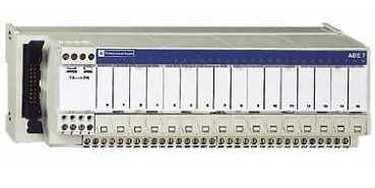

Sub-Base - Soldered Solid State Output Relay Abe7 - 16 Outputs - 0.5 A
2 year warranty

Instant Price Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like ABE7S16S2B0, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon Communication
Tightening torque5.31 lbf.in (0.6 N.m) (withflat Ø 3.5 mm
Range of productAdvantys Telefast ABE7
Product or component typeSolid state output relay sub-base
[Us] rated supply voltage24 V DC (PLC end)
24 V DC (preactuator end)
Number of channels16
Number of terminal per channel2
Relay typeSoldered solid state relay
Terminal block typeRemovable
Isolation PLC/operative partNo
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Width8.11 in (206 mm)
Current state 0 guaranteed0.4 mA (PLC end)
Voltage state 0 guaranteed3.4 V (PLC end)
Current state 1 guaranteed3.1 mA (PLC end)
Voltage state1 guaranteed16.9 V (PLC end)
Current per output common<= 8 A
Current per channel0.5 A (preactuator end)
Minimum switching current1 mA
Drop-out voltage<= 0.6 V (preactuator end)
Maximum switching current500 mA DC-12
500 mA DC-13
Tungsten load10 W DC-6
Residual current<= 0.3 mA (preactuator end)
Fault typeShort-circuit
Overload
Fault indicationYes
Switchable inductive energy L/R<= 400(U.I) ms
Circuit breaker threshold>= 0.75 A
Response time<= 0.02 ms from state 1 to 0
<= 0.1 ms from state 0 to 1
Switching frequency< 0.6/LI² Hz
Installation categoryII conforming to IEC 60664-1
