AS-B840-108

AS-B840-108

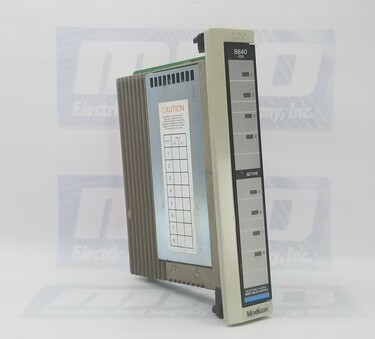

ASB840108 - 800-Series I/O Module, Discrete Out, Reed Relay (NO/NC), 8 pnts, 1 pnts per common
1 remanufactured in stock

Free 2 Day Shipping
1 year warranty

Categories

ManufacturerSchneider Electric
SeriesModicon 984 Series
Terminal ConnectorAS-8535-000
DescriptionReed Relay (NO/NC) output
Number of Points8
Operating Voltage0 ... 300 Vdc;
0 ... 230 Vac / 47 ... 63 Hz
Number of Groups8
Outputs per Group1
ON Current
Max. per Point3 A continous
2 A switching current
Max. per Module24 A
Switching Capability100 vA
Max. Response Time
OFF to ON6 ms (2 ms typical)
ON to OFF6 ms (2 ms typical)
Power Required
+5 V67 mA
+4.3 V400 mA
5 V0 mA
Space Required1 slot
Weight2.62 lbs (1.19 kg)
Terminal ConnectorAS-8534-000
Our core exchange program offers you credit for your faulty items, please ask about getting an RMA to send your core in with for credit. You can also send in your unit to be repaired, our standard turnaround for repairs is 5-7 days, and all of our repaired items look like new, and come with a 1 year warranty.

This product weights 2lbs. Want it shipped tomorrow?

  • Order within the next 19 hours and 51 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

What is the product warranty?

  • AS-B840-108 comes with a 1 year warranty
  • Ask about exchanging your faulty AS-B840-108 for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like AS-B840-108, take a look at more from our Modicon 984 Series line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
