AS-BDEP-216

2-year Warranty

Same Day Shipping

Schneider Electric AS-BDEP-216

Rated 5/5 on 3 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Discrete, Input, Isol.

PRODUCT TYPE INFO: Modicon TSX Compact

45 in stock


Free Shipping

2 Year warranty

Part NumberAS-BDEP-216
ManufacturerSchneider Electric
TypeI/O Modules
Model #ASBDEP216
Warranty2 Year
RangeModicon
Category18130-COMPACT 984 A210 I/O & CHASSIS
DescriptionDiscrete input
ApplicationPLC Module/Rack
MountDIN rail mount
Voltage24 VDC
Connection16-point

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed AS-BDEP-216 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this AS-BDEP-216 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty AS-BDEP-216, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 18 hours and 45 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty AS-BDEP-216 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric AS-BDEP-216 Overview

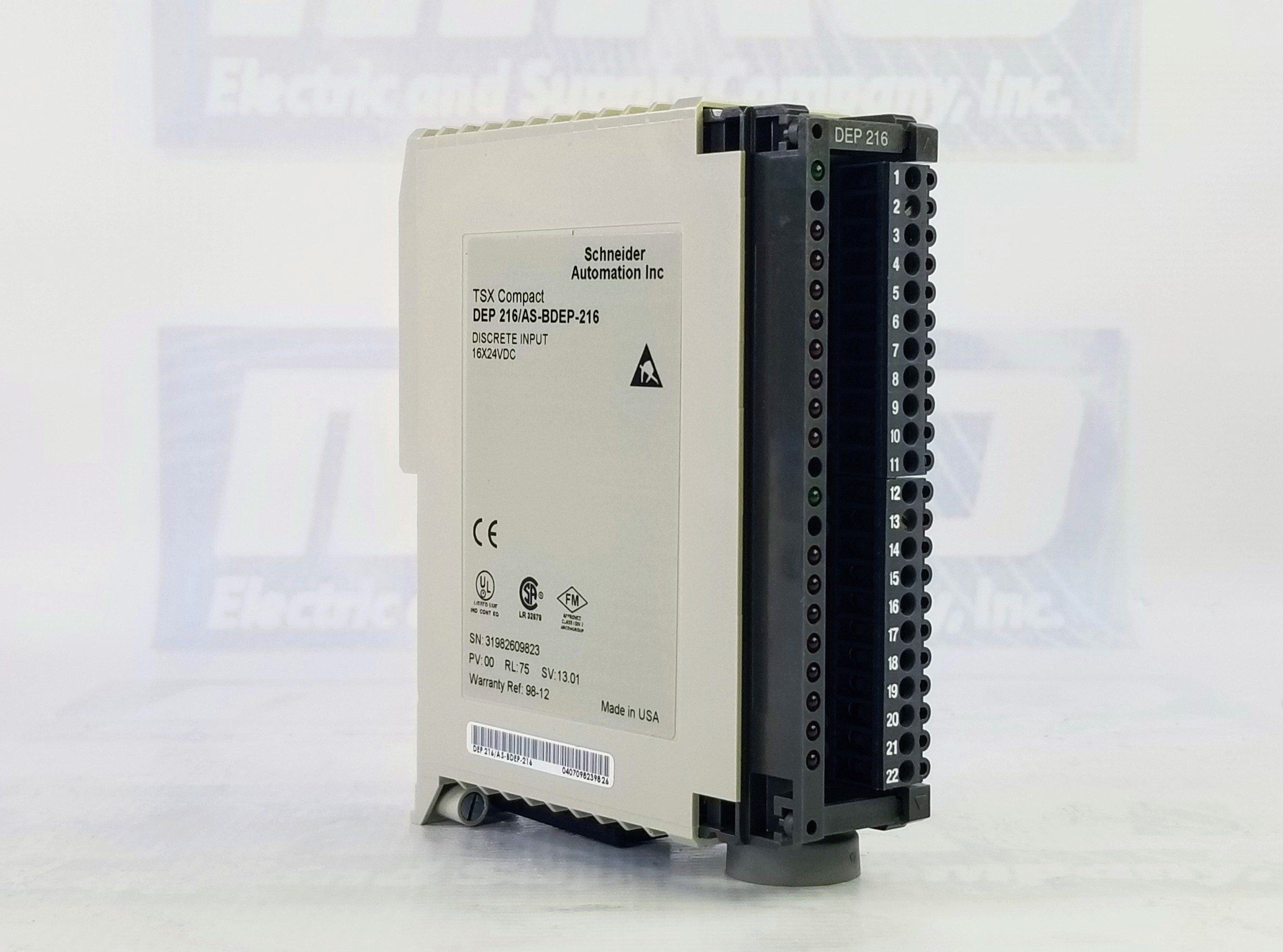

Schneider Electric ASBDEP216: Elevating Discrete Input Control in Modicon TSX Compact

In the intricate landscape of industrial automation, the Schneider Electric ASBDEP216 emerges as a pivotal component within the Modicon TSX Compact series—a discrete input module that not only captures signals from field sensing devices but also seamlessly integrates them into the logic of a Programmable Logic Controller (PLC). Let's explore the intricacies of the ASBDEP216, unraveling its specifications and features that make it a cornerstone in discrete input control.

Overview:

  • The ASBDEP216, a member of the Modicon TSX Compact family, is a 24 Vdc, 16-point discrete input module designed to interface with a myriad of field sensing devices. Its primary function is to convert input signals from devices like pushbuttons, limit switches, and proximity sensors, allowing seamless integration into the logic of a PLC.

Key Specifications:

  • The distinctive features of the ASBDEP216 contribute to its effectiveness in industrial control applications.

Number of Inputs and Groups:

  • The module boasts 16 discrete inputs organized into two groups, with eight inputs per group. This configuration facilitates flexible integration with diverse input sources, providing versatility in application.

Isolation for Robust Performance:

  • Each input of the ASBDEP216 is equipped with isolation out to the coupler, ensuring robust performance by preventing interference between inputs. This isolation feature enhances the reliability and stability of the entire control system.

External and Internal Power Sources:

  • The module requires an external 24 Vdc source for eight inputs, catering to the diverse power needs of field devices. Internally, the ASBDEP216 draws 5 V at 15 mA from the I/O bus, contributing to efficient power management within the system.

Signal Value and Levels:

  • With a rated signal value of 24 Vdc (+25%/-15%), the ASBDEP216 ensures compatibility with various input sources. The ON state signal level ranges from 12 to 30 Vdc, while the OFF state signal level is between -2 and +5 Vdc. These levels cater to the diverse voltage requirements of field devices.

Input Current and Power Dissipation:

  • The ON state input current is specified at 7 mA at 24 Vdc, ensuring efficient operation within the designated voltage range. With a typical internal power dissipation of 2 W, the ASBDEP216 optimizes energy usage for sustained performance.

Application Flexibility:

  • The ASBDEP216's design facilitates its integration into a wide range of industrial applications where discrete input signals play a critical role. Whether it's sensing the status of a limit switch or capturing signals from pushbuttons, this module ensures precise and reliable data acquisition.

Frequently Asked Questions

1. What is the primary function of the Schneider Electric ASBDEP216 module?

  • The ASBDEP216 is a discrete input module designed to capture signals from field sensing devices, such as pushbuttons, limit switches, and proximity sensors, and integrate them into the logic of a Programmable Logic Controller (PLC).

2. How many discrete inputs does the ASBDEP216 module have?

  • The module features a total of 16 discrete inputs organized into two groups, with eight inputs per group.

3. What is the isolation feature in the ASBDEP216 module?

  • Each input in the ASBDEP216 is equipped with isolation out to the coupler, ensuring robust performance and preventing interference between inputs.

4. What power sources does the ASBDEP216 module require?

  • The module requires an external 24 Vdc source for eight inputs. Additionally, it draws 5 V at 15 mA internally from the I/O bus.

5. What are the signal levels supported by the ASBDEP216 module?

  • The ON state signal level ranges from 12 to 30 Vdc, while the OFF state signal level is between -2 and +5 Vdc, accommodating the diverse voltage requirements of field devices.

6. What is the ON state input current of the ASBDEP216 module?

  • The ON state input current is specified at 7 mA at 24 Vdc, ensuring efficient operation within the designated voltage range.

7. How does the ASBDEP216 module contribute to power dissipation?

  • The ASBDEP216 module has a typical internal power dissipation of 2 W, optimizing energy usage for sustained and efficient performance.

8. Can the ASBDEP216 module be used in various industrial applications?

  • Yes, the ASBDEP216 module is designed for versatility, making it suitable for a wide range of industrial applications where discrete input signals are crucial for control and monitoring.

9. Is the ASBDEP216 module part of the Modicon TSX Compact series?

  • Yes, the ASBDEP216 is part of the Modicon TSX Compact series, showcasing Schneider Electric's dedication to advancing technology in discrete input control within industrial automation.

10. What benefits does the ASBDEP216 module offer in industrial control systems?

  • The ASBDEP216 module provides precise and reliable data acquisition from field devices, contributes to efficient power management, and plays a pivotal role in shaping efficient and reliable control systems in industrial automation.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like AS-BDEP-216, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our AS-BDEP-216 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
