ATV12HU22M2

2-year Warranty

Same Day Shipping

Schneider Electric ATV12HU22M2

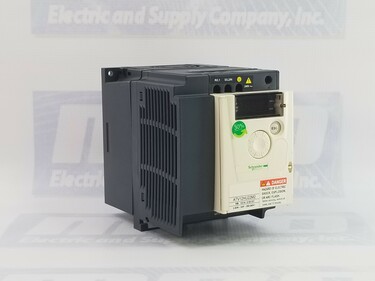

ALTIVAR VARIABLE SPEED DRIVE ATV12 - 2.2KW - 3HP - 200..240V - 1PH - WITH HEAT SINK

5/5
1 rating

Select Condition

Refurbished

Request Quote

New

2 in stock

$571.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberATV12HU22M2
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
RangeATV 12
ComponentVariable speed drive
ApplicationSimple machine
EMC filterIntegrated
ProtectionIP20
MountingCabinet
Supply frequency50/60 Hz +/- 5 %
CommunicationModbus
Supply Voltage200...240 V - 15...10 %
Discrete input4 input
Nominal output current10A
Max hp3 hp
Discrete output2 out
Analog1 in/ 1 out
Relay output1 out
Cont. output current10 A 4 kHz
Output frequency0.5…400 Hz
Speed range1…20
Interface2-wire RS 485
Connector1 RJ45
