MANUFACTURER: schneider electric
DESCRIPTION: Variable speed drive ATV212 - 11kW - 15hp - 480V - 3ph - EMC - IP21
PRODUCT TYPE INFO: altivar 212
|Product||Variable speed drive|
|Application||Pumps and fans|
|Phases||3 network phases|
|Assembly||With heat sink|
|Motor power||11 kW|
|Motor power||15 hp|
|Supply Voltage||380...480 V - 15...10 %|
|Supply voltage limits||323...528 V|
|Supply frequency||50...60 Hz - 5...5 %|
|Network frequency||47.5...63 Hz|
|EMC filter||Class C2 integrated|
|Line current||16.8 A 480 V 21.1 A 380 V|
|Prospective line Isc||22 kA|
|Nominal switching frequency||12 kHz|
|Regulation loop||Adjustable PI regulator|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV212HD11N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV212HD11N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV212HD11N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV212HD11N4 for credit when ordering from MRO Electric

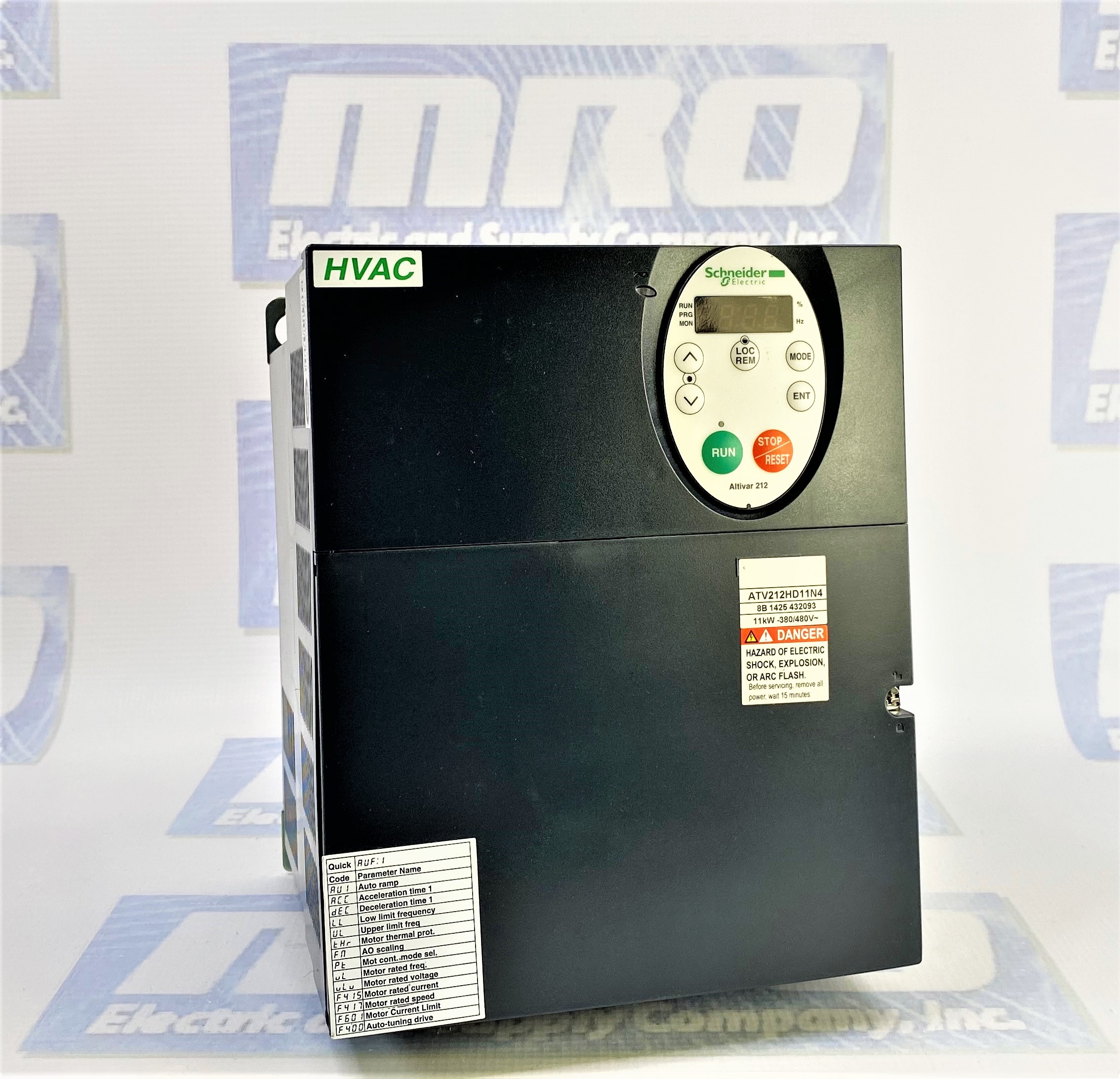

The ATV212HD11N4 is a variable-speed drive from the Altivar 212 range. It is designed by Schneider Electric for controlling asynchronous motors in applications such as pumps and fans in HVAC systems. The drive has a power rating of 11 kW (15 hp) and operates with a rated supply voltage of 380-480 V AC. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
The ATV212HD11N4 features an assembly style with a heat sink for efficient heat dissipation. It is a three-phase drive with a network frequency range of 47.5-63 Hz. The integrated Class C2 EMC filter ensures electromagnetic compatibility and reduces electrical noise.
With a line current of 16.8 A at 480 V and 21.1 A at 380 V, the ATV212HD11N4 delivers a continuous output current of 22.5 A at both 380 V and 460 V. It can handle maximum transient currents of up to 24.8 A for 60 seconds.
The speed drive output frequency range is 0.5-200 Hz, allowing precise control over motor speed. The drive supports various motor control profiles, including flux vector control without a sensor, voltage/frequency ratio control with automatic IR compensation, and energy-saving quadratic U/f control.
The ATV212HD11N4 offers adjustable speed and torque accuracy, with a speed accuracy of +/- 10% of the nominal slip from 0.2 times the rated torque to the rated torque. It also provides transient over-torque capabilities of 120% of the nominal motor torque for 60 seconds.
The drive comes with local signaling through a red LED that indicates the DC bus is energized. It has electrical isolation between the power and control sections for enhanced safety. The electrical connections can be made using terminals with different cable types and sizes.
For control and monitoring purposes, the ATV212HD11N4 is equipped with two switch-configurable voltage analog inputs, an analog output, and two configurable relay logic discrete outputs. It also supports programmable discrete inputs. The drive offers acceleration and deceleration ramps that can be automatically adjusted based on the load.
Safety features include protection against motor phase breaks, over voltages on the DC bus, input phase loss, overheating, short circuits between motor phases, and more. The drive complies with various international standards for electromagnetic compatibility, insulation resistance, vibration resistance, shock resistance, and environmental conditions.
The ATV212HD11N4 can be connected to a control system or other devices via its communication port, supporting protocols such as LonWorks, BACnet, METASYS N2, Modbus, and APOGEE FLN. The drive also supports option cards for LonWorks communication.
In terms of physical specifications, the ATV212HD11N4 has a compact size with dimensions of 180 mm (width) x 232 mm (height) x 170 mm (depth). It weighs approximately 6.45 kg and dissipates 430 W of power. The IP21 degree of protection ensures protection against solid objects and limited protection against dripping water.
Overall, the ATV212HD11N4 is a reliable and versatile variable-speed drive suitable for HVAC applications, offering precise motor control, robust protection features, and compatibility with various communication protocols.
