ATV212HD15N4

2-year Warranty

Same Day Shipping

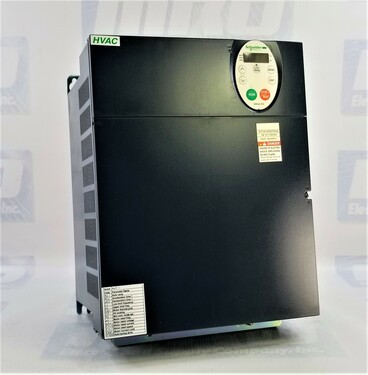

Schneider Electric ATV212HD15N4

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive, 15kW - 20hp - 480V - 3ph - EMC - IP21
PRODUCT TYPE INFO: Altivar 212


2 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberATV212HD15N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
Range Altivar 212
CategoryVariable speed drive
DestinationAsynchronous motors
AssemblyWith heat sink
Supply voltage380...480 V - 15...10 %
Supply frequency50...60 Hz - 5...5 %
Network frequency47.5...63 Hz
Application Pumps and fans in HVAC
Phase3 phase
Motor power15 kW
Max HP Rating20 hp
Line current22.8 A 480 V, 28.5 A 380 V
EMC filterClass C2 EMC filter integrated
Continuous output current30.5 A 380 V 30.5 A 460 V
Apparent power23.2 kVA 380 V
Speed drive output frequency0.5…200 Hz
Speed range1…10
Maximum transient current33.6 A 60 s
Prospective line Isc22 kA
Nominal switching frequency12 kHz
Switching frequency6...16 kHz adjustable 12...16 kHz with derating factor
Communication port protocolBACnet Modbus METASYS N2 APOGEE FLN LonWorks
Connector type1 open style 1 RJ45
Physical interface2-wire RS 485

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV212HD15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV212HD15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV212HD15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 9lbs

Want it shipped today?

  • Order within the next 11 hours and 19 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV212HD15N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV212HD15N4 Overview

ATV212HD15N4: Comprehensive Technical Overview

Introduction:

The ATV212HD15N4 is a variable-speed drive tailored explicitly for asynchronous motors, finding its niche in applications such as HVAC system pumps and fans. This detailed technical overview delves into its specifications, features, and capabilities.

Product Overview:

In the realm of variable speed drives, the ATV212HD15N4 stands out with a 15 kW (20 hp) power rating, designed for use with asynchronous motors in a three-phase system. Boasting an IP21 rating for ingress protection and equipped with electromagnetic compatibility (EMC) features, it proves its resilience in demanding industrial environments.

Product Specifications:

The drive's assembly style is characterized by a robust design featuring a heat sink. Operating with a motor power of 15 kW and a supply voltage of 480 V, it provides a frequency range of 50-60 Hz with a 5% tolerance. Its EMC filter is classified as Class C2 and its line current ranges from 22.8 A at 480 V to 28.5 A at 380 V.

Control and Regulation:

Emphasizing control versatility, the ATV212HD15N4 supports various profiles, including flux vector control without sensors. It incorporates an adjustable PI regulator for precise regulation and offers visual feedback through local signaling, indicating DC bus energization. Additionally, the drive accommodates different cable types tailored to specific temperature requirements.

Input and Output Interfaces:

The drive is equipped with two switch-configurable analog inputs (VIA, VIB), supporting voltage, current, and PTC probe inputs. It also features a switch-configurable analog output (FM) and two discrete outputs with configurable relay logic for FLA, FLC, FLB, FLC, RY, and RC. Discrete inputs (F, R, RES) with programmable settings further enhance its adaptability.

Protection and Safety:

Ensuring operational safety, the ATV212HD15N4 includes protection against overheating, braking to a standstill by DC injection, and a dielectric strength of 3535 V DC between earth and power terminals. Environmental protection is reinforced with an IP21 rating.

Communication and Connectivity:

Supporting BACnet, Modbus, METASYS N2, APOGEE FLN, and Lon Works protocols, the ATV212HD15N4 facilitates seamless communication. Its physical interface includes one open style and one RJ45 connector, operating on a two-wire RS 485 transmission frame.

Physical Characteristics:

Positioned vertically with a flexibility of +/- 10 degrees, the ATV212HD15N4's dimensions measure 9.65 in (W) x 12.99 in (H) x 7.48 in (D), with a weight of 25.68 lb. Power dissipation is 625 W, and it exhibits an airflow of 54,420.42 Gal/hr.

Environmental Conditions:

With an IP21 degree of protection, the ATV212HD15N4 thrives in diverse environmental conditions, including altitudes up to 9842.52 ft, operating temperatures ranging from -13 to 122 °F (with derating factor), and a relative humidity range of 5-95% without condensation.

Compliance and Certifications:

In adherence to electromagnetic compatibility standards (IEC and EN), the ATV212HD15N4 holds certifications from CSA, UL, C-Tick, and NOM 117, with the CE marking signifying compliance with European Union requirements. This variable speed drive is a robust and reliable solution, offering efficient motor control in HVAC applications within a framework of industry-leading standards.

FAQ:

What is the primary application of the ATV212HD15N4?

The ATV212HD15N4 is designed for use with asynchronous motors, specifically in applications involving pumps and fans within HVAC systems.

What is the significance of the IP21 rating?

The IP21 rating certifies the drive's protection against solid foreign objects and protects it from vertically falling water droplets.

How does the ATV212HD15N4 handle electromagnetic compatibility (EMC)?

The ATV212HD15N4 includes an integrated Class C2 EMC filter, ensuring compliance with electromagnetic compatibility standards.

Can the drive accommodate different cable types?

Yes, the ATV212HD15N4 offers flexibility in cable selection, with options designed to meet specific temperature requirements.

What communication protocols are supported by the ATV212HD15N4?

The drive supports a range of communication protocols, including BACnet, Modbus, METASYS N2, APOGEE FLN, and Lon Works.

What safety features does the ATV212HD15N4 incorporate?

Safety features include protection against overheating, braking to a standstill by DC injection, and a dielectric strength of 3535 V DC between earth and power terminals.

How does the drive handle environmental conditions?

The ATV212HD15N4 is designed for diverse environmental conditions, with an IP21 degree of protection, operational altitudes up to 9842.52 ft, and a relative humidity range of 5-95% without condensation.

What certifications does the ATV212HD15N4 hold?

The drive holds certifications from CSA, UL, C-Tick, and NOM 117, and it is marked with CE, signifying compliance with European Union requirements.

Can the ATV212HD15N4 be used in vertical installations?

Yes, the drive can be installed vertically with a flexibility of +/- 10 degrees.

What is the significance of the 625 W power dissipation?

The 625 W power dissipation indicates the amount of power the drive dissipates during operation, contributing to its overall efficiency.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
