Schneider Electric ATV212HD45N4

Schneider Electric ATV212HD45N4 Overview

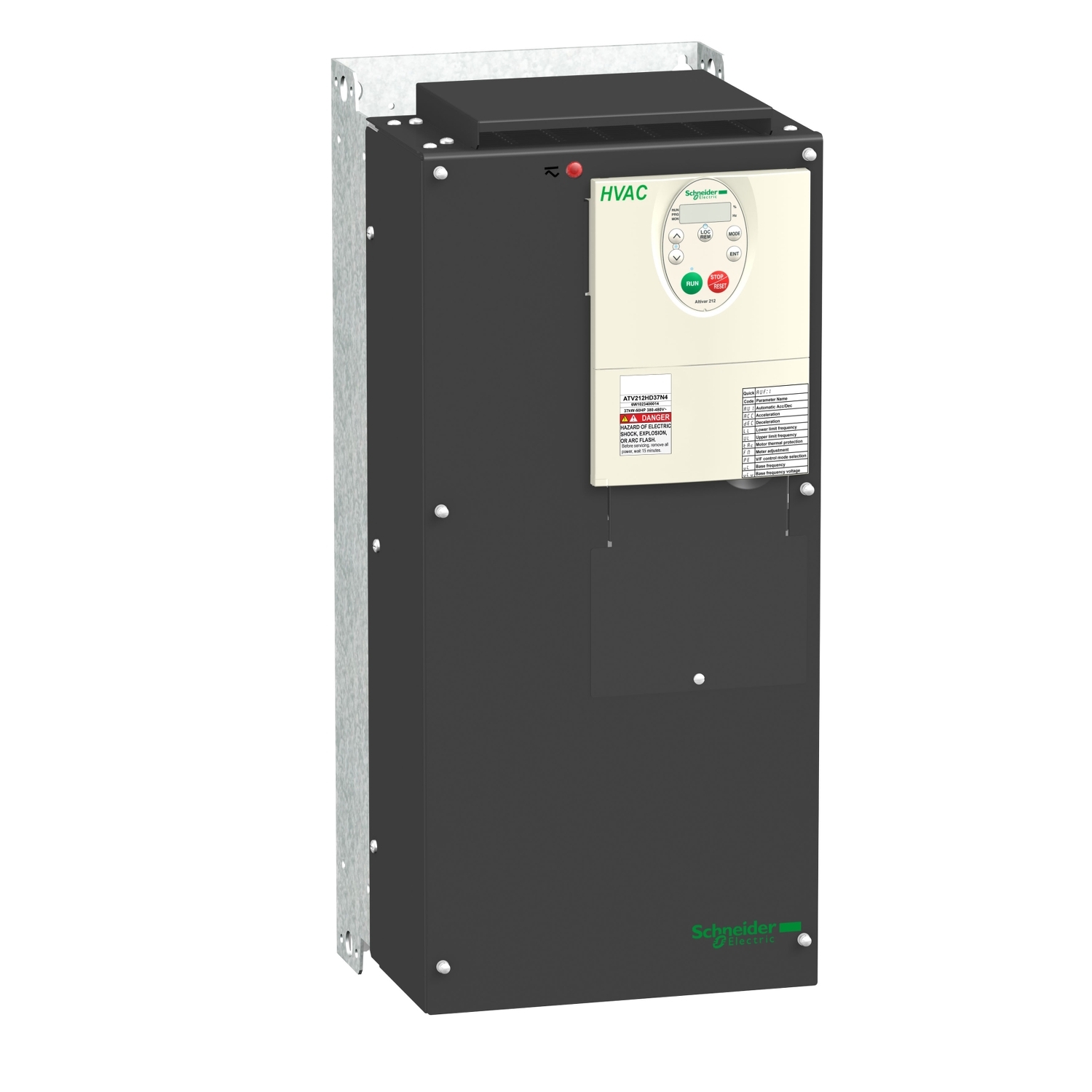

The Schneider Electric ATV212HD45N4 Altivar 212 variable speed drive is a heavy-duty, compact solution engineered to deliver precise motor control for industrial and commercial applications. Rated at 45 kW (60 HP) for 480 V three-phase systems, this drive combines energy-efficient operation with robust protection features to optimize motor performance, reduce energy consumption, and prolong equipment life. Its IP21 enclosure rating and built-in EMC filtering make it suitable for installation in standard control panels while meeting electromagnetic compatibility requirements for industrial environments.

Performance and Energy Efficiency

Designed to handle demanding loads, the ATV212HD45N4 provides smooth acceleration and deceleration, accurate torque control, and advanced motor protection to safeguard your processes. The drive's control algorithms improve process stability and reduce mechanical stress, which helps minimize maintenance costs and extend the life of driven equipment. With variable speed capability, users can tune motor speed and torque to match process needs, delivering measurable energy savings versus fixed-speed operation.

Installation and Integration

The Altivar 212 offers a compact footprint and a user-friendly connection layout that simplifies wiring and panel integration. Conduit-ready terminal layout and accessible mounting make installation straightforward for retrofit or new-build projects. Schneider Electric's diagnostic and configuration tools streamline commissioning and allow technicians to adapt the drive to application requirements quickly. Native support for common communications and control interfaces makes the ATV212HD45N4 easy to integrate into modern control architectures.

Protection and Compliance

This model includes essential protection features such as overload protection, short-circuit detection, overvoltage and undervoltage protection, and thermal monitoring to protect both the drive and the motor. The built-in EMC filter helps meet electromagnetic compatibility standards, reducing interference with nearby equipment. The IP21 rating protects against solid objects and accidental contact in indoor panel environments, making the drive suitable for many industrial and commercial installations.

Reliability and Support

Backed by Schneider Electric's reputation for quality and supported with a 2-year warranty, the ATV212HD45N4 gives procurement teams confidence that their investment is protected. The unit is immediately available with free shipping, enabling quick replacement or installation to minimize downtime. Schneider Electric's global support network and extensive documentation provide technical resources for troubleshooting, parameter tuning, and preventive maintenance.

Applications and Use Cases

The ATV212HD45N4 is ideal for a wide range of applications, including pumps, fans, compressors, conveyors, mixers, and general machinery, where robust, reliable variable speed control is required. Its power rating and protective features make it well-suited for heavy-duty industrial processes as well as demanding commercial HVAC or facility systems. The compact, panel-friendly design aids installers who need high power density in limited space.

FAQs

What is the power rating of the Schneider Electric ATV212HD45N4?

The drive is rated at 45 kW (60 HP) for 480 V, three-phase motor applications.

Does the ATV212HD45N4 include EMC filtering?

Yes, this model includes built-in EMC filtering to help meet electromagnetic compatibility requirements.

What enclosure protection does this drive have?

The unit has an IP21 rating, suitable for indoor panel installation and protection against solid objects and accidental contact.

Is this drive suitable for pumps and fans?

Yes — the Altivar 212 is commonly used for pumps, fans, compressors, conveyors, and similar motor-driven equipment.

How does the drive improve energy efficiency?

By allowing precise speed and torque control, the drive reduces unnecessary motor runtime and matches motor output to process demand, lowering energy consumption.

Can the ATV212HD45N4 be integrated with existing control systems?

Yes, it supports standard control interfaces and is designed for straightforward integration and commissioning.

What protection features are included?

The drive includes overload protection, short-circuit detection, over- and undervoltage protection, and thermal monitoring to protect both motor and drive.

Is technical support available for setup and troubleshooting?

Schneider Electric provides documentation and global technical support to assist with configuration, commissioning, and troubleshooting.

What warranty comes with this drive?

The ATV212HD45N4 is supplied with a 2-year warranty for added procurement confidence.

Is the drive in stock, and how fast can I get it?

This model is immediately available with free shipping to help minimize downtime and meet project timelines.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
