MANUFACTURER: Schneider Electric
DESCRIPTION: Variable speed drive ATV312 - 1.5kW - 3.2kVA - 90W - 200..240 V- 1-phase supply
PRODUCT TYPE INFO: Altivar 312
|Description||Variable speed drive|
|Motor power||1.5 kW|
|Assembly||with Heat Sink|
|Max rated hp||2 hp|
|Line current||15.8 A 200 V, Isc = 1 kA 13.3 A 240 V|
|Apparent power||3.2 kVA|
|Max transient current||12 A 60 s|
|Power dissipation||90 W at nominal load|
|Protection||IP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part|
|Option card||Communication card CANopen daisy chain Communication card DeviceNet Communication card Fipio Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications 1 Communication card Modbus TCP Communication card Profibus DP|
|Supply voltage||170…264 V|
|Prospective line Isc||1 kA|
|Nominal switching frequency||4 kHz|
|Output frequency||0…500 Hz|
|Braking torque||150 % 60 s with braking resistor 100 % with braking resistor continuously 150 % without braking resistor|
|Output voltage||<= power supply voltage|
|Continuous output current||8 A 4 kHz|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed ATV312HU15M2 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this ATV312HU15M2 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty ATV312HU15M2, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty ATV312HU15M2 for credit when ordering from MRO Electric

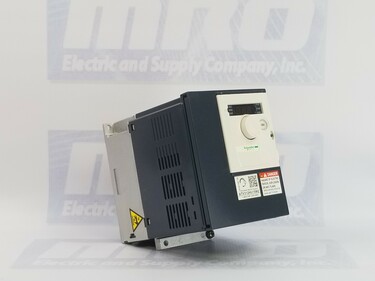

The ATV312HU15M2 is a variable-speed drive belonging to the Altivar 312 range manufactured by an unspecified company. It is specifically designed for use with asynchronous motors in simple machine applications. The drive comes with a built-in heat sink for optimal heat dissipation. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.
With a motor power of 1.5 kW (equivalent to 2 hp), the ATV312HU15M2 can efficiently control the speed of the connected motor. It operates on a rated supply voltage of 200-240 V with a variation of 15-10%. The supply frequency ranges from 50 to 60 Hz with a variation of 5%. This drive is compatible with single-phase power systems.
The ATV312HU15M2 incorporates an integrated EMC filter, which helps mitigate electromagnetic interference. It has an apparent power rating of 3.2 kVA and can handle a maximum transient current of 12 A for 60 seconds. The power dissipation at a nominal load is 90 W.
In terms of motor control, the ATV312HU15M2 utilizes sensorless flux vector control with pulse-width modulation (PWM) type motor control signals. The factory-set profile is constant torque, providing stable motor operation. The drive offers various electrical connections, including terminal blocks for control inputs and outputs, with different wire sizes and capacities.
Communication options for the ATV312HU15M2 include CANopen and Modbus protocols, enabling seamless integration into industrial automation systems. The drive's protection rating is IP20 on the upper part without a cover plate, IP21 on connection terminals, IP31 on the upper part, and IP41 on the upper part with optional covers.
Additional features of the ATV312HU15M2 include a range of configurable options such as acceleration and deceleration ramps, regulation loops, motor slip compensation, and braking torque control. It has multiple analog and discrete inputs and outputs for interfacing with external devices.
The drive is designed to comply with various international standards and certifications, including IEC 61800-3, IEC 61800-5-1, UL, DNV, C-tick, CSA, NOM, and GOST. It offers reliable performance in different environmental conditions, with protection against input phase breaks, line supply overvoltage, and undervoltage, motor phase breaks, overheating, short-circuit between motor phases, and more.
The ATV312HU15M2 has a compact form factor with dimensions of 184 x 149 x 145 mm. It weighs approximately 3.97 lbs (1.8 kg). The drive operates within a temperature range of 14 to 122 °F (-10 to 50 °C) without derating and can be stored within a temperature range of -13 to 158 °F (-25 to 70 °C).
The product is part of the Green Premium range, indicating its commitment to environmental sustainability. It is also compliant with EU RoHS directives, mercury-free, and adheres to China RoHS regulations. Detailed information regarding its end-of-life disposal and environmental impact can be found in its Circular Profile and Product Environmental Profile.
Overall, the ATV312HU15M2 variable speed drive offers precise control and protection for asynchronous motors in simple machine applications. Its compact size, communication capabilities, and compliance with international standards make it a reliable choice for industrial automation systems.
