ATV312HU15N4

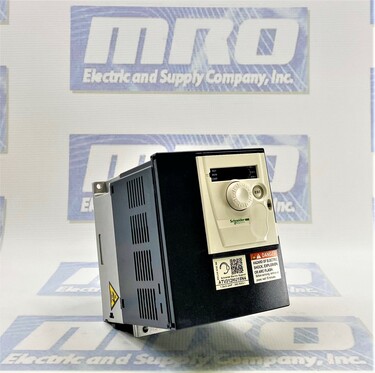

Schneider Electric ATV312HU15N4

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Variable speed drive, 1.5kW - 4.2kVA - 61W - 380..500 V- 3-phase supply

PRODUCT TYPE INFO: Altivar

5 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberATV312HU15N4
ManufacturerSchneider Electric
TypeAC Drives
Warranty2 Year
ProductAltivar 312
DestinationAsynchronous motors
Drive TypeVariable speed drive
ApplicationSimple machine
AssemblyWith heat sink
kW Motor power1.5 kW
Max hp rating2 hp
Supply voltage380...500 V - 15...10 %
Supply frequency50...60 Hz - 5...5 %
Phase3 Phase
Line current6.4 A 380 V, Isc = 5 kA 4.8 A 500 V
EMC filterIntegrated
Power4.2 kVA
Max trans. current6.2 A 60 s
Power dissipation61 W at nominal load
Speed1…50
ProtectionIP20 on upper part without cover plate IP21 on connection terminals IP31 on upper part IP41 on upper part
Option cardsCommunication card CANopen daisy chain Communication card DeviceNet Communication card Fipi1 Communication card Modbus TCP Communication card Profibus DP

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ATV312HU15N4 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ATV312HU15N4 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ATV312HU15N4, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 10 hours and 48 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ATV312HU15N4 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ATV312HU15N4 Overview

The Schneider Electric ATV312HU15N4 is a variable frequency drive (VFD) that is designed to control the speed of three-phase asynchronous motors. This particular model has a power rating of 1.5 kW and can operate on input voltages ranging from 380 to 500 volts. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Features


One of the main features of the ATV312HU15N4 is its compact size. Measuring just 172mm x 128mm x 153mm, it is easy to install in small spaces. This makes it ideal for use in a variety of industrial applications, such as conveyors, fans, and pumps.

Advanced Features


The ATV312HU15N4 also comes with a number of advanced features that make it a reliable and efficient choice for motor control. It uses a proprietary motor control algorithm that provides smooth and precise control of the motor speed, which helps to reduce wear and tear on the motor and other components.


The VFD also has built-in protection features that help to prevent damage to the motor and other equipment. For example, it has overvoltage and undervoltage protection, as well as overcurrent and short-circuit protection. It also has a built-in thermal overload protection that automatically shuts down the VFD if the motor temperature rises above a certain threshold.

Communication


In addition, the ATV312HU15N4 has a number of communication options that make it easy to integrate with other systems. It has a Modbus communication port, which allows it to communicate with other Modbus-compatible devices. It also has an RJ45 Ethernet port, which allows it to be connected to a local area network (LAN) for remote monitoring and control.

Programming Options


The VFD also has a number of programming options that make it easy to customize its operation to suit specific application requirements. It has a built-in keypad and LCD display that allow users to program and monitor the VFD directly. It also has a number of pre-programmed settings that make it easy to configure the VFD for common applications, such as pumps and fans.

Design


Finally, the ATV312HU15N4 is designed with energy efficiency in mind. It uses a number of techniques to reduce energy consumption, such as automatic voltage regulation, which helps to optimize the motor's efficiency at different speeds. It also has a built-in energy-saving mode, which reduces the VFD's power consumption when the motor is idle.


In conclusion, the Schneider Electric ATV312HU15N4 is a compact, reliable, and efficient VFD that is suitable for a wide range of industrial applications. Its advanced features, communication options, and programming options make it easy to integrate into existing systems and customize its operation to suit specific application requirements. Its built-in protection features and energy-saving capabilities also make it a cost-effective choice for motor control.
