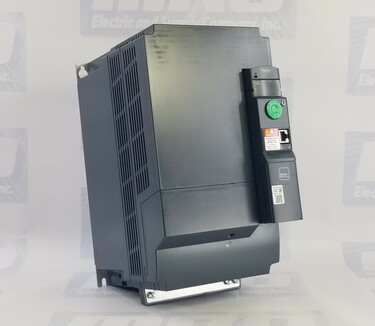

Schneider Electric ATV320D11N4B

The ATV320D11N4B is a drive from the Altivar 320 series, manufactured by Schneider Electric. It is a variable-speed drive designed for both asynchronous and synchronous motors, offering precise control and energy efficiency in industrial applications. With a power rating multiplier of -1 and a power rating of 11, it provides reliable performance for a range of motor-driven systems. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Modicon and ABB.

Schneider Electric is a global leader in energy management and automation solutions, known for its high-quality and innovative products. The ATV320D11N4B drive is a testament to their commitment to providing advanced solutions for motor control and automation.

Design

The ATV320D11N4B drive is part of the Altivar 320 series, which is designed to meet the needs of a wide range of industrial applications. Whether it's in manufacturing, HVAC, water treatment, or other sectors, the Altivar 320 series offers reliable and efficient motor control.

Features

One of the key features of the ATV320D11N4B drive is its ability to control both asynchronous and synchronous motors. This versatility allows it to be used in a variety of applications, regardless of the motor type. It provides precise control over motor speed, torque, and acceleration, enabling optimal performance and energy efficiency.

With a power rating multiplier of -1 and a power rating of 11, the ATV320D11N4B drive is capable of handling moderate power requirements. This makes it suitable for a wide range of motor-driven systems, such as pumps, fans, conveyors, and mixers. The drive ensures smooth operation and precise control, helping to improve productivity and reduce energy consumption.

Operation

The ATV320D11N4B drive is designed for a three-phase supply voltage in the range of 380-500 VAC and operates at a frequency of 50/60 Hz. This voltage range accommodates common industrial power supplies, making the drive compatible with a wide range of electrical systems. The ability to operate at different frequencies allows for flexibility in adapting to various motor requirements.

In terms of form factor, the ATV320D11N4B drive is available in a book form factor. This compact design allows for easy integration into control cabinets or electrical enclosures, optimizing space utilization in industrial setups. The book form factor simplifies installation and maintenance, providing a user-friendly experience for technicians and engineers.

Protective features

The ATV320D11N4B drive incorporates advanced control algorithms and protective features to ensure safe and reliable operation. It includes features such as overvoltage and undervoltage protection, short circuit protection, and motor thermal protection. These safeguards help prevent damage to the drive and motor, improving system reliability and extending equipment lifespan.

MRO Electric provides support and documentation for the ATV320D11N4B drive. This includes user manuals and datasheets, enabling users to easily set up and configure the drive to meet their specific requirements. MRO Electric's commitment to customer satisfaction ensures that users have access to the necessary resources and assistance.

In conclusion, the ATV320D11N4B drive from Schneider Electric's Altivar 320 series is a versatile and reliable solution for motor control in industrial applications. With its ability to control both asynchronous and synchronous motors, it offers flexibility and precise control over motor speed and performance. The drive's power rating, three-phase supply voltage compatibility, and compact book form factor make it suitable for a wide range of applications. MRO Electric's commitment to customer support and documentation ensures that users can maximize the benefits of the ATV320D11N4B drive for their specific motor control needs.
